  •  Industrial Linux Debian Mini PC Small Panel All In One Poe Wall Mount Embedded Pc 7" I.MAX GPIO

Industrial Linux Debian Mini PC Small Panel All In One Poe Wall Mount Embedded Pc 7" I.MAX GPIO

stars, based on 0reviews
Price:
$488.80 / piece
Bundle
  • Standard Version
  • ADD WiFI N Bluetooth
  • ADD POE Function
  • ADD WiFi + POE Function
  • ADD 4G LTE
  • ADD WiFi+4G+POE Function
  • ADD GPS
  • ADD WiFi+4G+POE Function+GPS
optional functions
  • Android OS 2GB RAM+16GB ROM
  • Android OS 4GB RAM+64GB ROM
  • Linux OS 2GB RAM+16GB ROM
  • Linux OS 4GB RAM+64GB ROM
Quantity: - + 1000items available
Contact Us

Item specifics

Brand Name:
Kcosit
Model:
K701
Product Type:
Android rugged tablet
Interface Type:
USB,RS232,USB, RS232,RS485/422
Scanning Light Source:
Scan Element Type:
Scan Speed:
Products Status:
Stock
Operating System:
Linux Debian 10,Android 9.0
Processor Manufacture:
Cortex-A53
Processor Model:
Qualcomm Cortex®-A53 64-bit Octa-core 1.8GHz processor
Screen Size:
7
Display resolution:
1280x800
Touch Screen Type:
Capacitive Screen
RAM:
2GB RAM ,4GB RAM
ROM:
16GB ROM,64GB ROM
Cell Capacity:
Cellular:
GSM/WCDMA/ 4G LTE
Tags:
In-Vehicle Tablet, Rugged tablet, Rugged Android Tablet, Waterproof Tablet, all-in-one computers, workplace tablets,,Truck Vehicle Tablet PC,Android ACC Power,1000 Nits
Kcosit Rugged Devices --->Email: sales@kcosit.com

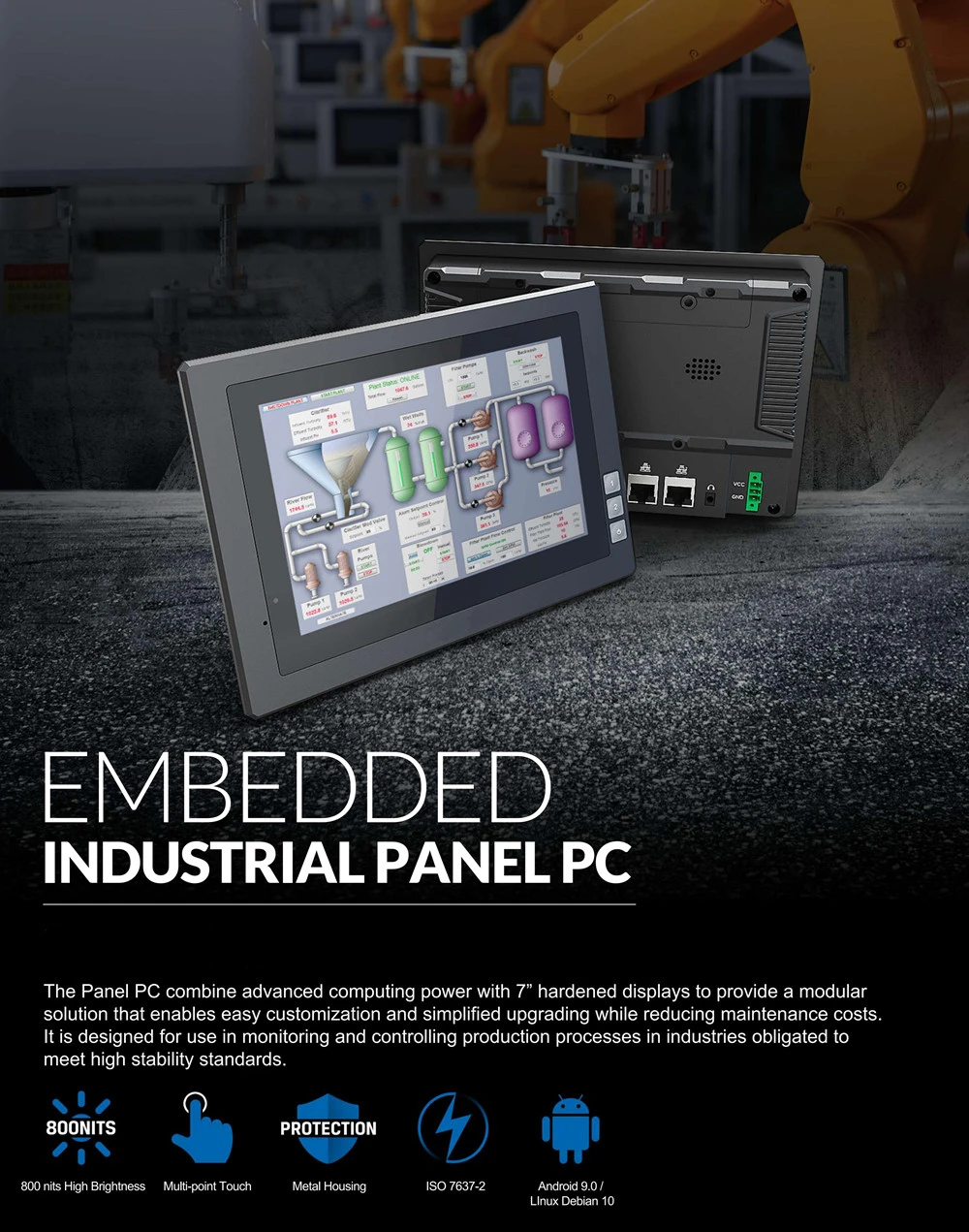

2022 Original K701 Industrial Linux Debian Mini PC Panel All In One Poe Wall Mount Embedded Pc 7" I.MAX 8 4GB RAM GPIO RS232 Com



 Basic Version + Pro Version Spec (NO WiFI Bluetooth+NO 4G LTENO GPS)

  • Operation System:   Android 9.0  (optional Linux Debian 10)
  • CPU NXP i.MX 8M Mini, ARM® Cortex®-A53 Quad-Core 1.6GHz
  • Display Resolution : 7" HD (1280 x 800) Capacitive Touch 800Nits
  •  RAM+ROM: =2GB RAM+16GB
  •  RAM+ROM=4GB RAM+64GB  (Optional)

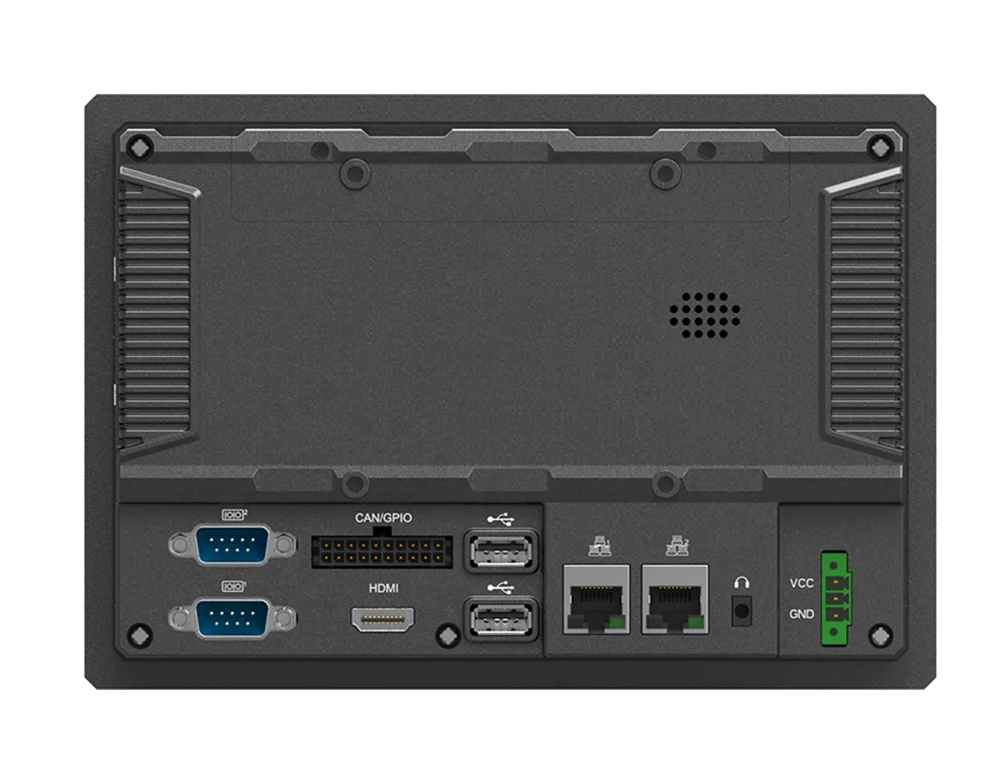

  • Standard Extended Cable Interfaces :
  •     1X RJ45 LAN 1000M  (POE 25W is Optional)
  •     GPIOx8 ( Each cable can be customized for input or output)
  •     SIM slot X1  (Optional)
  •     CAN : default Can Bus 2.0Bx  (Optional extra Can bus 2.0Bx1)
  •     USB  : USB host×2, USB Type-C device×1
  •     Micro SD Card Slot X1 1, support up to 512GB
  •     COM 4 (Optional)  1. RS232×4      2. RS232×3 + RS485×1    3. RS232×3 + RS422×1     4. RS232×2 + RS485×2
  •     (When optional BT is selected, will occupy one RS232 port)
  •
Optional Functions
  • WiFi+ Bluetooth 5.0(Optional)
  • GPS  Built-in or External(Optional)
  • 4G LTE  3G/4G(Optional)
  • ADD one More CAN (Optional)

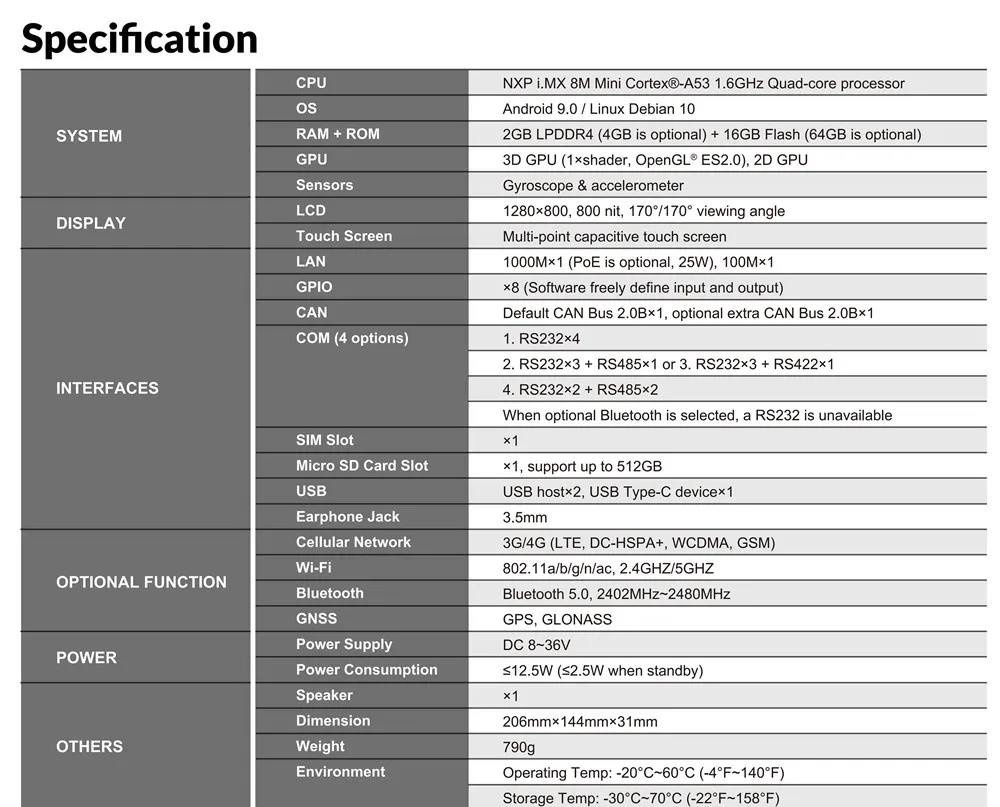

SystemCPUNXP i.MX 8M Mini Cortex®-A53 1.6GHz Quad-core processor
OSAndroid 9.0 / Linux Debian 10
RAM + ROM2GB LPDDR4 (4GB is optional) + 16GB Flash  (Optional)
GPU3D GPU (1×shader, OpenGL® ES2.0), 2D GPU
SensorsGyroscope & accelerometer
DisplayLCD1280×800, 800 nit, 170°/170° viewing angle
Touch ScreenMulti-point capacitive touch screen
InterfacesLAN1000M×1 (PoE is optional, 25W), 100M×1
GPIO×8 (Software freely define input and output)
CANDefault CAN Bus 2.0B×1, optional extra CAN Bus 2.0B×1
COM 4 (Optional)1. RS232×4
2. RS232×3 + RS485×1 or 3. RS232×3 + RS422×1
4. RS232×2 + RS485×2
When optional BT is selected, will occupy one RS232 port
SIM Slot×1
Micro SD Card Slot×1, support up to 512GB
USBUSB host×2, USB Type-C device×1
Earphone Jack3.5mm
Optional FunctionCellular Network3G/4G (LTE, DC-HSPA+, WCDMA, GSM)
Wi-Fi802.11a/b/g/n/ac, 2.4GHZ/5GHZ
BTBT 5.0, 2402MHz~2480MHz
GNSSGPS, GLONASS
PowerPower SupplyDC 8~36V
Power Consumption≤12.5W (≤2.5W when standby)
OthersSpeaker×1

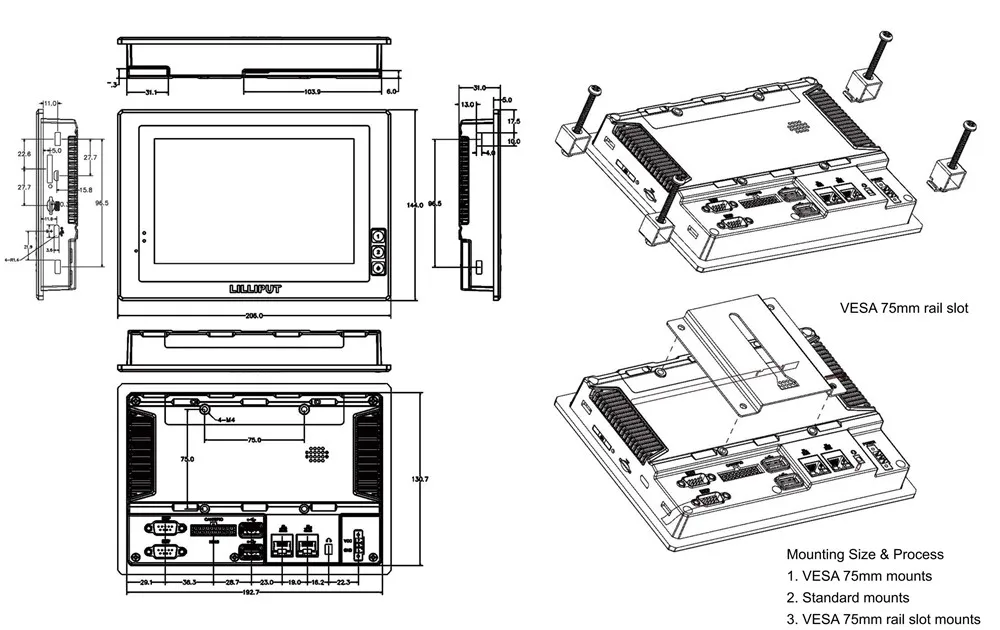

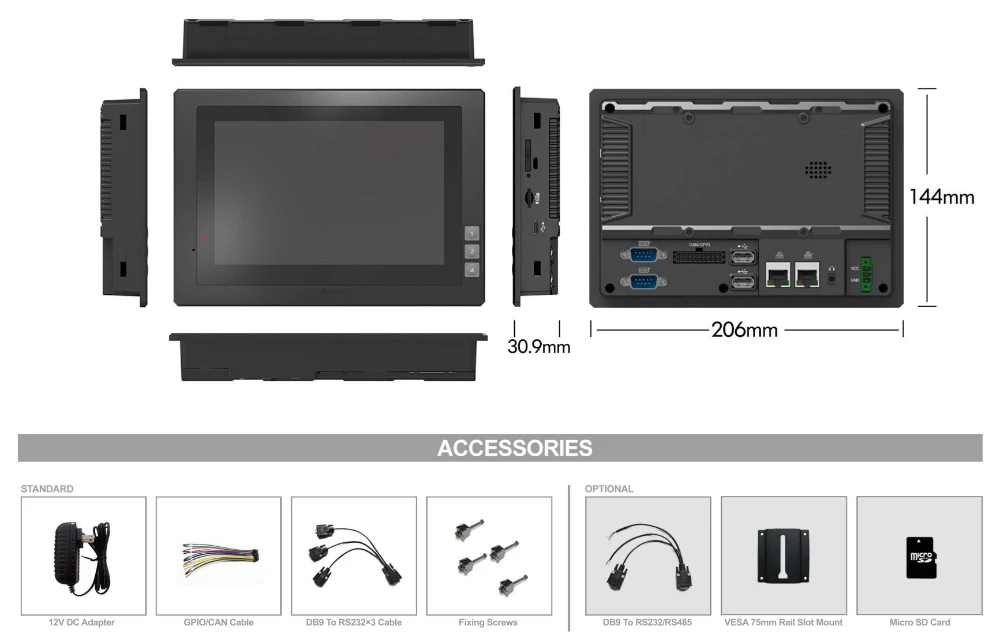

Dimension206mm×144mm×31mm
Weight790g
EnvironmentOperating Temp: -20°C~60°C (-4°F~140°F)
Storage Temp: -30°C~70°C (-22°F~158°F)
