• windows 10 Home Pro IOT 1D/2D barcode scanner 8GB 128GB

K10U Rugged Windows Tablet Panel PC Industrial Vehicle Computer 10.1" intel Core i7-8550U 8th Gen 16GB RAM RJ45 GPS Scanner

0 stars, based on 0reviews
Price:
$1568.80 / piece
Operating System
  • Windows 10 Home OS
  • Windows 10 Pro OS
Optional
  • Standard Version

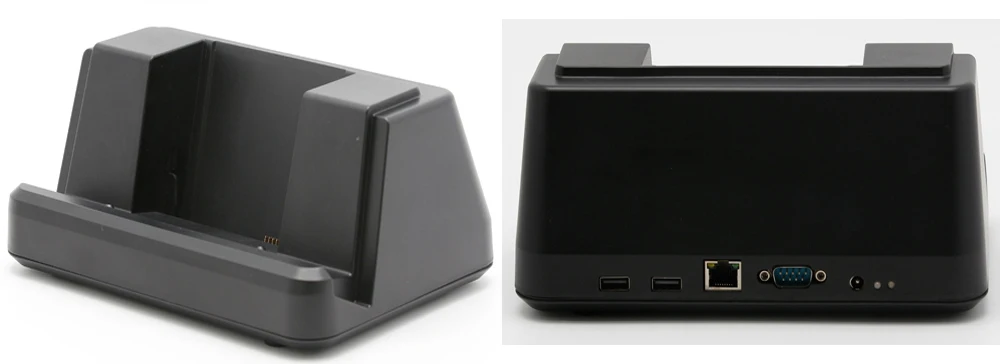

  • ADD a Charger Dock
  • ADD 1D Scanner
  • ADD 2D Scanner
  • 1D Scanner +Charger Dock
  • 2D Scanner +Charger Dock
  • I7 16GB RAM+128GB SSD
Quantity: - + 1000items available
Contact Us

Item specifics

Brand Name:
Kcosit
Screen Size:
10.1
Feature:
GPS,HDMI,Multi Touch,G Sensor,OTG,Dual Cameras
Memory Capacity:
≥8GB
Operating System:
Windows 10
Processor Core:
Quad Core
Processor Manufacture:
Intel
Display resolution:
1920x1200
Touch Screen Type:
Capacitive Screen
Tablet Data Capacity:
128GB
Item Condition:
New
Processor Model:
8th Generation KBL-R Intel® Core™ i5-8250U
Extend Port:
USB,SD Card,HDMI,OTG,TF card,DC Jack,Mini USB,Earphone Jack
Network Communiction:
Wifi,4G LTE
Camera:
Front Camera 2.0MP,Back Camera 8.0MP
Battery Type:
Detachable
Battery capacity ::
5860mAH
SIM Card Quantity:
Single SIM Card (Only For Data Transmission)
Band Mode :
2G GSM: 900/1800MHZ,3G WCDMA: 900/2100MHZ,4G LTE: LTE FDD: B1/B3/B7/B8/B20/B28A
Supporting Language:
Polish,German,Russian,French,Portuguese,Japanese,Swedish,Hebrew,Greek,Spanish,Italian,English,Can install any Language by Microsoft official Website

Original K10U Rugged Windows Tablet Panel PC Industrial Computer 10.1" intel Core i7-8550U 8th Gen 16GB RAM RJ45 GPS Scanner


Standard Version (Windows 10 Home OS)

  • Waterproof Grade:  IP65 Waterproof Level Shockproof and Dustproof
  • Operation System:  Windows 10 Home
  • CPU: 8th Generation  KBL-R Intel® Core™ i5-8250U (optional :Intel® Core™ i7-8550U)
  • GPU : Intel® UHD Graphics 620
  • Display Size: 10.1"
  • Display Resolution : 1280×800   330 cd/m2
  • RAM+SSD: 8GB RAM+128GB SSD (optional  I7  16GB RAM+128GB SSD)
  • Camera: Dual Camera  8.0MP Back+ 2.0MP Front
  • Battery Capacity: 7.4V  5000mAH+Small Battery 7.4V 860mAH Built-in
  • Built-in 4G, Wifi ,GPS Module, Bluetooth Module
  • Sim Card Quantity: Single SIM Card (Only For Data Transmission)
  • Band Mode :
  • 2G GSM: B3/B8
  • 3G WCDMA: B1/B8
  • 4G LTE:  LTE FDD: B1/B3/B7/B8/B20/B28A






 Standard Pacakge Include: (standard without Charger Docking)

1. 1X Tablet
2. 1X Battery 5000mAh +Small Battery 7.4V 860mAH

3. 1X AC Charger(US or EU )
4. 1X USB Cable

5. 1X OTG Cable

6. 1X Leather Hand strip






Model NO(Subject):K10U

TypeDetailsStandard ConfigurationOptional
Product FormTypeRugged TabletNA
Dimension290*196*22mm NA
WeightDevice unit: 1140g
5000mAh battery:250g		NA
Device ColorBlack(Front and Rear Panel: Black,Decorate Board:Black)NA
LCDScreen Size10.1 inch   16:10Full-fit components
Resolution1200×1920
Brightness330 cd/m2
TPTouch Panel10 points Capacitive,G+G,Rigidity: above 7H-Anti-scratchOptional SLR Sunlight visible film
CameraFrontFront:2.0MP  NA
RearRear: 8.0MP    USB Camera With flash lightNA
SpeakerBuilt-inEmbedded 8Ω/0.8W waterproof speaker x 1NA
Mic
Sensitivity:-42db, Output resistance:2.2kΩNA
Small BatteryTypeBuild in Lithium-ion polymer battery,  Non-removableNA
Capacity7.4V/860mAh NA
Endurance30mins(default 50% volumn,default200nit,play 1080P HD video)NA
Bigl BatteryTypeLithium-ion polymer battery , pluggable, Hot SwapNA
Capacity7.4V/5000mAh NA
Endurance8hrs(default 50% volumn,default200nit,play 1080P HD video)NA
System Hardware Configuration
TypeDetailsDescriptionOptional
CPUType8th Generation  KBL-R Intel® Core™ i5-8250U NA
Speed4M Cache, 3.40 GHzNA
GPUTypeIntel® UHD Graphics 620 NA
RAMDDR4L8GB NA
SSDNGFF SSD128GB   removable256GB/512GB
TPMBuilt-inTPM2.0   SLB9665TNA
G_sensorBuilt-inGravity acceleration sensorNA
FingerprintBuilt-in×1 SPI Fingerprint (windows hellow boot login) NA
FanBuilt-in×1  IPX5NA
NFCBuilt-inNANXP100
Network Connections
TypeDetailsDescriptionOptional
WIFIWIFI ModuleWIFI 802.11(a/b/g/n/ac)  dual frequency 2.4G+5.8G WIFI intel 3165D2WG (3.3v)NA
BluetoothBuilt-inBT4.2 (BLE) class1  transmited distance:10mNA
4GBuilt-inEC25-EC
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8                                      China (China Unicom Telecom, mobile support is not good, only B8 supports no TDD band) Europe, Middle East, Africa, Taiwan, Japan 		NA
GPSBuilt-inU-blox  M8Q ,Support:GPS, Beidou module, glonassNA

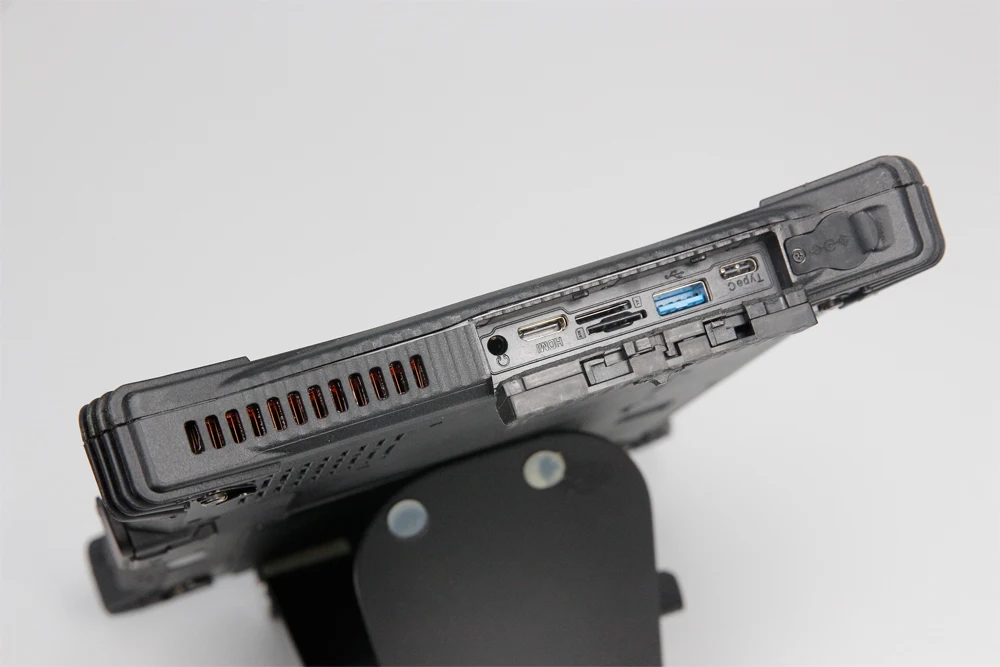

Interface Configuration
TypeDetailsDescriptionsOptional
type A usbUSB3.0x1  USB 3.0NA
Type CType C*1 Type C (USB3.0/HDMI/Charging)NA
Earphone JackAudio Output∮3.5mm Standard Earphone Jack  x1NA
HDMI JackAudio&Video OutputHDMI 1.4a mini  x1NA
TF SlotExtensive External MemorySupport TF   x1    max:128GNA
SIM SlotSIM SlotSIM   x1    NA
DC JackPowerDC 19V 3.42A ∮4.0mm Power connector  x1NA
pogo pinpogo pin x1   12pin(USB&Docking charging)NA
Keys
TypeDetailsDescriptionsOptional configuration
F KEYScanner keyScanner key x1,No barcode then customizable ((GPIO)NA
volume+volumeVolume adjustment key(+)  x 1NA
volume-volumeVolume adjustment key(-)  x 1NA
windowswindows key x1NA
powerpower key x1NA
Indicator light
TypeDetailsDescriptionsOptional configuration
powerBuilt-inPower on is always blue, power off light is off ×1NA
baterryBuilt-in(Red and Green) Charging red, full of green, red light flashing on low power, not discharging ×1NA
Module extension (Note: The following modules are one of five)
TypeDetailsDescriptionsOptional configuration
Ethernet interfaceRJ45 board*1(10/100M) Ethernet interface
serial portDB9 boardNA*1 (RS232)9-line full function
USB2.0USB2.0NA*1  USB2.0 Big USB
 One-dimension barcode optionalNAHoneywell  N6551/Optical resolution: 5mil/scan speed: 50 times /s serial port
 Two-dimension barcode optionalNAHoneywell N3680   hardcode
Optical resolution:5mil
scan speed:50 times /s
Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
  Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Standard Accessories
TypeDetailsDescriptionsOptional
Power AdaptorStandardAC100V ~ 240V,19V3.42A/65W Output       USA Standard  CE approvalUK Standard
EU Standard
Software Configuration
TypeDetailsDescriptionsOptional
Operation SystemOS versionwindows 10 Home 64bit   Default language:English  windows 10 Home 64bit
Windows 10 Pro 64bit
Windows 10 IOT 64bit
Product Certificate
TypeDetailsDescriptionsOptional
Certificate SystemIP65IP65 Report:Water Resistance:IP-X5,Dust Resistance:P-6X  Report ID no.:SET2015-07677
a.Inner Nozzle Diameter:6.3mm;   b. Water Speed:12.5±0.625L/min;
c. Water Pressure:Adjust according to water volumn;
d.Central part of water volumn :A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter;f.Test time:at least 3min;
g.Distance between nozzle and panel surface:2.5～3m.
After test,there is no water leakage in sample.		NA
CE-NBYESNA
MIL-STD-810GYESNA
CCCYESNA
BatteryUN3803,MSDS,IEC62133,Aviation, Ocean shipping reportsNA
Reliability
TypeDetailsDescriptionsOptional
Product ReliabilityDrop Height80cm  composite wood floors, in operation status
Operate Temperature'-10 °C to 50 °C
Store Temperature'-20 °C to 60 °C
HumidityHumidity: 95% Non-Condensing
Product feature:
1.Support Windows 10;
2.Support  USB3.0 type A connector;
3.Support Battery Single Charger Docking;
4.Support GPS navigation;
5.Support 1D/2D barcode scanner;
6.Support Finger Identification;
7.Rugged IP65 protection level;
8.Support 5000mAh pluggable battery, big and small double batteries;
9.Support UART port, RJ45 port and customized port;
10.Support Wrist Strap and back jacket;




Windows Rugged Tablet

    Handheld Terminal
