  • Industrial Android Rugged Handheld PDA with Long-Range UHF RFID 5.5 Inch For Warehouse Management

Industrial Android Rugged Handheld PDA with Long-Range UHF RFID 5.5 Inch For Warehouse Management

stars, based on 0reviews
Price:
$458.80 / piece
Functions
  • Handle Grip+2D Scanner
  • Handle Grip+ UHF RFID
  • Handle Grip With 2D Scanner +UHF RFID
Quantity: - + 1000items available
Contact Us

Item specifics

Brand Name:
Kcosit
Model:
KC610
Product Type:
Android Barcode Scanner
Interface Type:
USB
Scanning Light Source:
Laser Light
Scan Element Type:
CMOS
Scan Speed:
5 scans/second
Products Status:
Stock
Operating System:
Android 13.0
Processor Manufacture:
Processor Model:
Cortex-A73 2.0GHz octa-core
Screen Size:
5.5
Display resolution:
1440x720
Touch Screen Type:
Capacitive Screen
RAM:
4GB
ROM:
64GB
Cell Capacity:
7200mAH
Battery Type:
Detachable
Cellular:
GSM/WCDMA/LTE
SIM Card Quantity:
Dual SIM Cards
Supporting Language:
Multi-Language
Tags:
Barcode Reader, Android barcode Scanner, Android Barcode Reader, Best Android Barcode Scanner, rugged handheld, handheld Mobile Computers, Mobile Data Terminal, Rugged PDA, Handheld Computer,,Android Rugged POS Terminal,1D 2D Barcode Scanner ,Bluetooth PDA,Bar codes Reader
Kcosit Rugged Devices --->Email: sales@kcosit.com

 Product Overview

The Kcosit 5.5-inch rugged handheld PDA with handle grip is a powerful and durable device designed for industrial applications. With a Cortex-A73 2.0GHz octa-core processor, Android 13.0, and a 7200mAh battery, this PDA is perfect for high-demand environments. It is IP65 rated, ensuring protection from dust and water, while its 1.5m drop resistance makes it highly durable for logistics, field service, and warehouse tasks. The optional UHF RFID module provides a tag reading range of up to 20 meters, ideal for long-range data capture.

 Rugged PDA with Ergonomic Handle Grip for Easy Use

This PDA is equipped with a handle grip, making it easier for workers to use for extended periods. This feature is especially useful in industries like warehouse management, where operators often scan multiple items over a long workday.

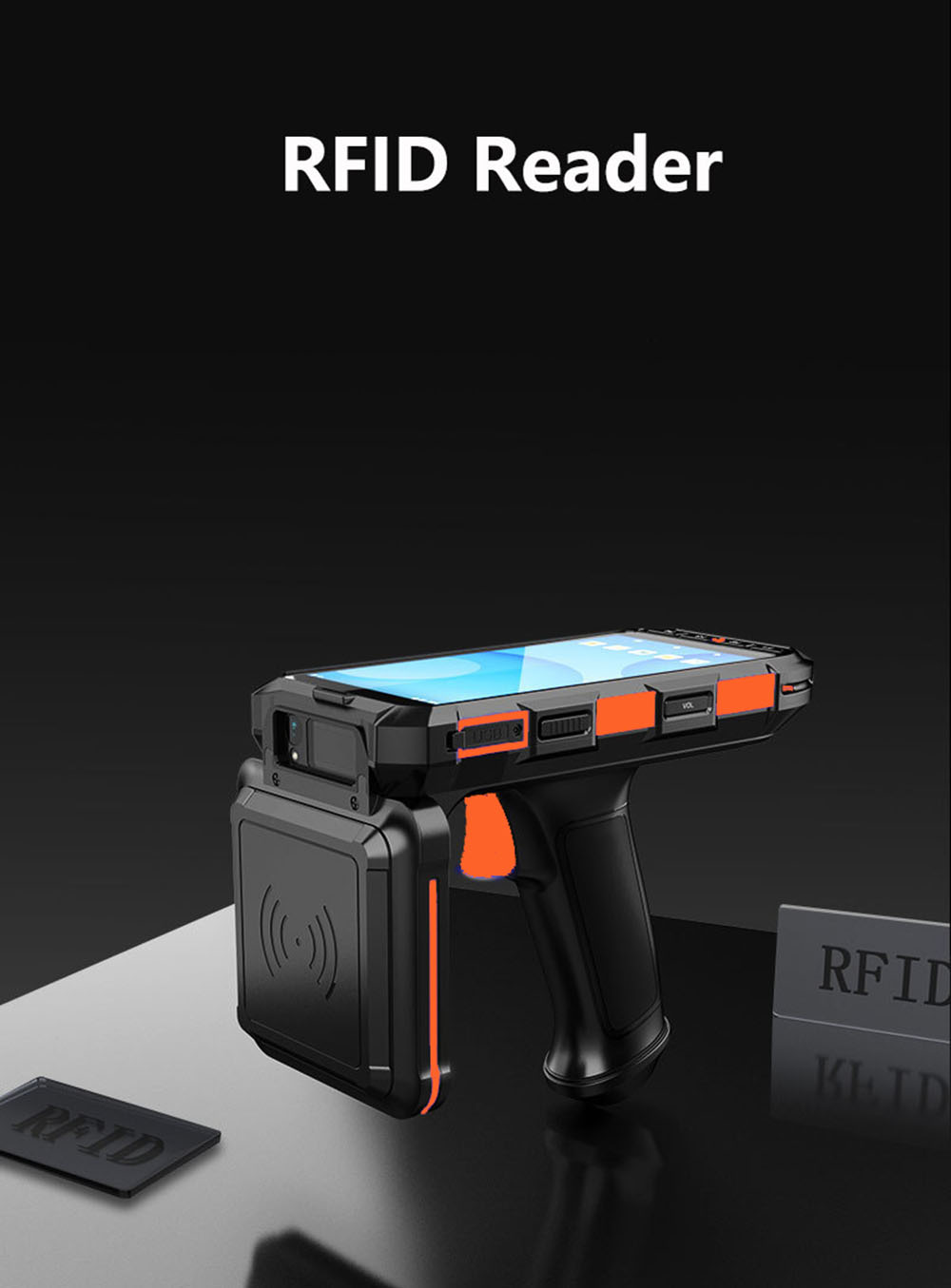

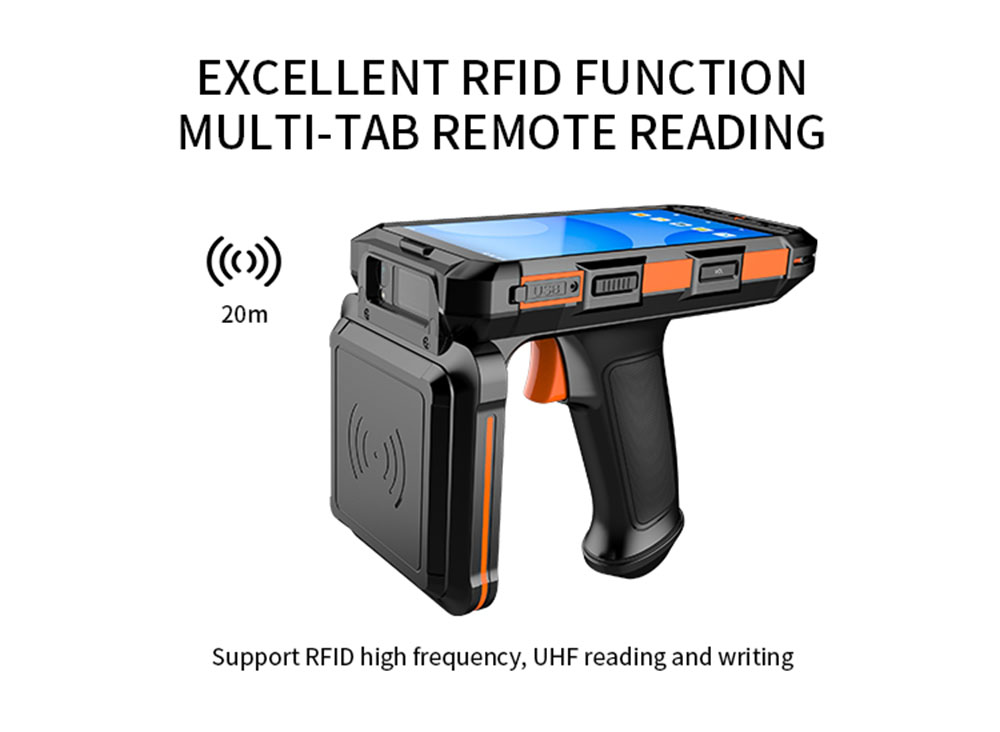

 UHF RFID for Long-Range Tag Reading

The UHF RFID reader can detect tags from up to 20 meters away, using a circular antenna to ensure precise data collection. This makes it perfect for logistics, supply chain management, and asset tracking in large facilities where items are stored far from the operator.

Advanced Data Capture with 2D Barcode Scanning

The Newland NLS-N1 2D barcode scanner adds another layer of utility, allowing for fast, accurate barcode scanning in inventory management and logistics. Its ability to read a wide range of barcode symbologies makes it highly versatile for various industries.

 Android 13 for Seamless Software Integration

Running on the latest Android 13, this rugged PDA supports easy integration with existing business systems. The SDK compatibility allows companies to develop and deploy custom software solutions quickly, making it adaptable to diverse operational needs in logistics and field services.

 Durable and Built for Harsh Environments

The IP65-rated PDA can withstand dust, water, and drops from 1.5 meters, making it ideal for tough industrial settings. With an operating temperature range of -20°C to 50°C, this device can operate reliably in extreme conditions, enhancing productivity for workers in the field.

NFC and PSAM for Secure Transactions and Data Exchange

The NFC reader supports ISO 14443A & 15693 protocols, making the PDA a good fit for secure, close-range communications such as RFID asset tracking and payment systems. For added security, PSAM encryption ensures sensitive data is protected during transfers, ideal for applications in logistics and warehouse management.


Standard Version with Handle Grip


* IP65 Waterproof Handheld Terminal
* 5.5 inch    720*1440
* Cortex-A73 2.0GHz octa-core
* RAM 4GB+ROM 64GB
Battery 7200MAH
* Android 13.0 OS


Optional Functions
1.2D Barcode Scanner
2. RFID UHF Long Range (10~20M

tags and environment dependent)



Standard Pacakge Include

1. 1 x PDA
2. 1 x Battery (7200 mAH)
3. 1x Charger














PHYSICAL CHARACTERISTICS
Dimension
170mm(H)x80mm(W)x28mm(D)±2 mm
Weight
600g
Display
Tough 5.5 in. TFT-LCD(720x1440)touch screen with backlight
Backlight
LED backlight
Expansions
2 PSAM, 2 SIM, 1 TF
Battery
Rechargeable li-ion polymer, 3.8V, 7200mAh
PERFORMANCE CHARACTERSTICS
CPU
Cortex-A73 2.0GHz octa-core
Operating System
Android 13
Storage
4GB RAM/64GB ROM, MicroSD(max 256GB expansion)
USER ENVIRONMENT
Operating Temp.
-20℃ to 50℃
Storage Temp
20℃ to 70℃
Humidity
5%RH to 95%RH(non-condensing)
Drop Specifications
5ft./1.5 m drop to concrete across the operating temperature range
Sealing
IP65, IEC compliance
ESD
±15kv air discharge, ±8kv direct discharge
DEVELOPMENT ENVIRONMENT
SDK
Handheld-Wireless Software Development Kit
Language
Java
Environment
Android Studio or Eclipse
DATA COMMUNICATION
WWAN
TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 5,7,8,12, 17, 20;
WCDMA(850/1900/2100MHz);
GSM/GPRS/Edge (850/900/1800/1900MHz);
WLAN
2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac
WPAN
Bluetooth-v2.1+EDR, Bluetooth-v3.0+HS, Bluetooth-v4.2
GPS
GPS(embedded A-GPS), BeiDou, GLONASS, accuracy of 5 m
DATA CAPTUER
BARCODE READER(OPTIONAL)
2D Barcode
2D CMOS Imager
Newland NLS-N1 Engine
Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US
Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.
COLOR CAMERA
Resolution
Rear 13 megapixel, front 5.0 megapixel
Lens
Auto-focus with LED flash
RFID READER(OPTIONAL)
RFID NFC
Frequency
13.56MHz
Protocol
ISO 14443A&15693, NFC-IP1, NFC-IP2
R/W Range
2cm to 5cm
RFID UHF
Frequency
865~868MHz or 902~928MHz
Protocol
EPC C1 GEN2/ISO 18000-6C
Antenna Gain
Circular antenna(4dBi)
R/W Range
20m(depend on tags and environment)
PSAM SECURITY(OPTIONAL)
Protocol
ISO 7816
Baudrate
9600, 19200, 38400,43000, 56000, 57600, 115200
Slot
2 slots(maximum)
ACCESSORIES
Standard
1xPower Supply; 1xLithium Polymer Battery; 1xType-C cable
Optional
Cradle
