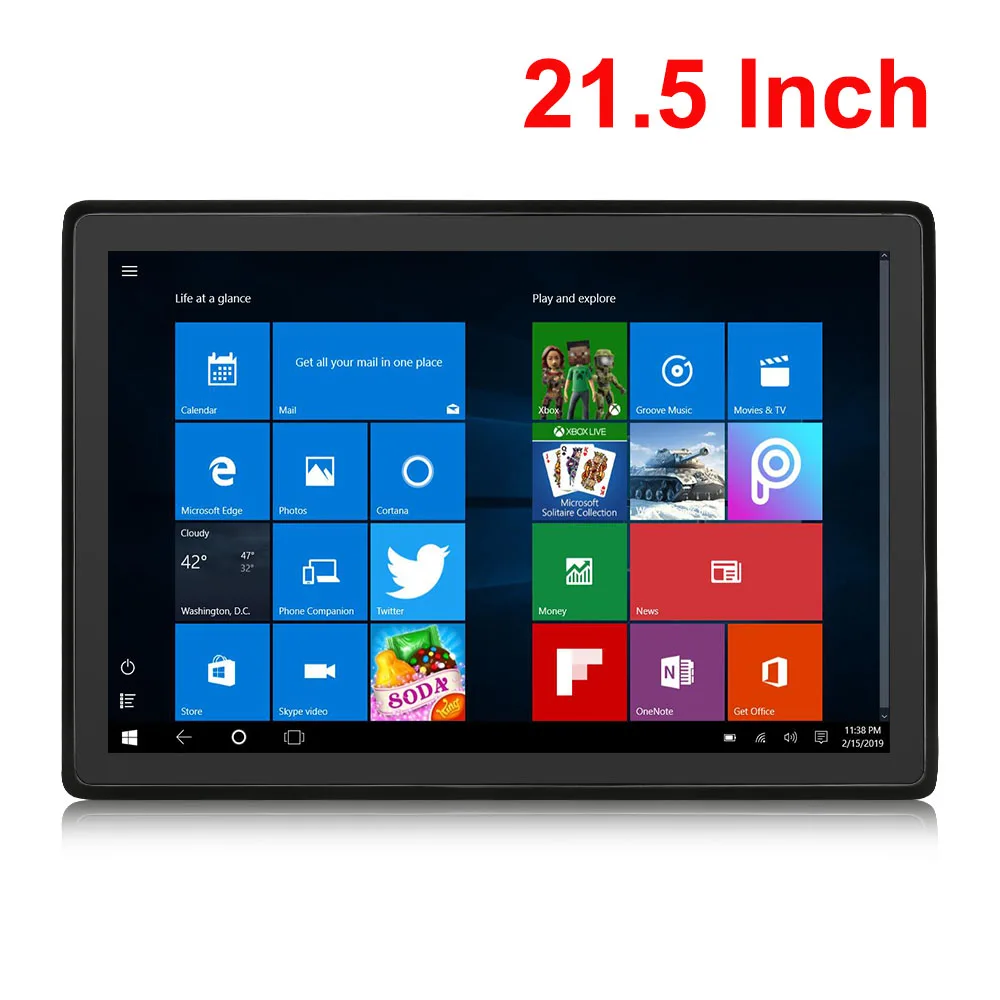

  •  Fanless Industrial Panel PC All In One Windows 7 8 10 Desktop Computer Intel I7 15" 17" 19" 21.5" Resistive Touch 8GB RAM  WiFi RS232 RJ45

Fanless Industrial Panel PC All In One Windows 7 8 10 Desktop Computer Intel I7 15" 17" 19" 21.5" Resistive Touch 8GB RAM WiFi RS232 RJ45

stars, based on 2reviews
Price:
$668.80 / piece
Bundle
  • 15 Inch
  • 15.6 Inch
  • 17 Inch
  • 17.3 Inch
  • 19 Inch
  • 21.5 Inch
optional functions
  • J1900 2GB RAM 32GB
  • J1900 4GB RAM 64GB
  • J1900 8GB RAM 256GB
  • I3-6100U 4GB RAM 64GB
  • I3-6100U 8GBRAM 256GB
  • I5-4200 4GB RAM 64GB
  • I5-4200 8GBRAM 256GB
Quantity: - + 1000items available
Contact Us

Item specifics

Brand Name:
Kcosit
Inferface:
1*DC, 2*USB2.0,2*USB3.0,1*RJ45,1* HDMI,1*VGA,2*COM,2* WiFi Antenna,Optional  2*RJ45
Product Type:
Windows tablet
Interface Type:
USB,RS232,USB, RS232
Products Status:
Stock
Operating System:
Windows 10 /Windows 7
Processor Manufacture:
J1900,I3-4010,I5-4200
Screen Size:
15 Inch,15.6 Inch,17 Inch,17.3 Inch,19 Inch,21.5 Inch
RAM:
2GB,4GB,8GB
ROM:
64GB
Supporting Language:
Can install any languages by Microsoft offical website
Tags:
Panel pc, Industrial Panel pc, Industrial PC, industrial touch screen monitor, embedded computer systems, Embedded PC, industrial computers,,Fanless Industrial Panel PC,All In One Android DesktopComputer,Intel I7,Resistive Touch
Kcosit Rugged Devices --->Email: sales@kcosit.com

 Fanless Industrial Panel PC All In One Windows 7 8 10 Desktop Computer Intel I7 15" 17" 19" 21.5" Resistive Touch 8GB RAM  WiFi RS232 RJ45

Product Introduction
       The All-In-One Computer Adopts An All-Aluminum Alloy Structure, Fanless And Fully Enclosed Designed, Low Power Consumption,  Compact Appearance. It is An Industrial Product Specially Designed For A Variety of Environments. It Can Ensure Long-Term Stable Work in Harsh Environment. We Pay More Attention To its Reliability, Environmental Adaptability, Real-Time Performance, Scalability, EMC Compatibility And Other Performance in The Materials of The Whole Device. The configuration Adopts Intel Celeron J1900 Quad-Core 1.99G (Maximum Core Frequency 2.4G) CPU With Windows 7 OS, With A High-Definition Display Interface, Multiple COM Interfaces, and USB interface, Meets Various Application Interfaces Required By The Scene, Provides A Variety of Work Efficiency, And is Widely Used in High-End Automation Fields Such As Industrial Control, Military Industry, Communication, Electricity, And Network.


Compact Appearance, Multiple Installation Methods
         The Military-Grade Aluminum Alloy Structure of The Device, High-Efficiency Heat Dissipation Design (Compatible With Fans), Ensure Stable Operation In Harsh Environments, Increase The Service Life of The Device, Safety And High Efficiency, No Noise. It Can Be Applied to High Dust, High Vibration, High Temperature, Low Temperature And Other Environments


Standard Version ( Windows 10 Home OS)

  • Operation System:  Windows 10 Home   (Optional Windows 7/ 8/ Linux)
  • CPUIntel Celeron J1900 Quad-Core 1.99G (Maximum Core Frequency 2.4G)
                  (Optional I3-6100U/I5-4200U / I5-7200U/ i7-7500U Difference CPU Slight Difference Interfaces)
  • GPU : Integrated HD Graphic Display Core
  • Display Size: 21.5"  (optional 7"~21.5" )
  • Display Resolution : 19250*1080 Pixel IPS  Capacitive Touch  Brightness: 300cd/m2                                                                 (Optional Non-touch Screen , Resistive Touch Screen)
  • Memory: DDR3 1333/1600M Default 2GB    (Optional 2G/4G/8GB)
  • Storage:  Hard Disk SSD Default 32GB          (Optional 64/128/256/512GB )
  • Built-in : Dual Band WiFi ,Bluetooth BT4.0 (Optional 3G/4G Module  SIM, GPS Module)
  • Inferface : 1*DC+ 2*USB2.0+2*USB3.0+1*RJ45+1* HDMI+1*VGA+2*COM+2* WiFi Antenna                                          (Optional  2*RJ45)
  • Widely Voltage Input: 12V~36V
  • Overall Size:  537.4*328.8*64.5mm









Screen ParameterSize15"15.6"17"17.3"19"21.5"
ColorChroma :16.7M
Brightness (Standard Value)Brightness: 300cd/m2
Contrast1000:1
Response Time6.5ms



Touch ScreenTouch Screen TypeCapacitive Touch Screen
Resolution500DPI
Input MethodHandwriting or Capacitive Pen
Surface Hardness7H
CalibrationSupport



Hardware ConfigurationCPUIntel Celeron J1900 Quad-Core 1.99G (Maximum Core Frequency 2.4G)
(Optional I3-6100U/I5-4200U/I5-7200U/I7-7500U)
MemoryDDR3 1333/1600M Default 2G    (Optional 2G/4G/8G)
StorageHard Disk SSD Default 32G    (64/128/256/512G (Optional)
ChipsetIntel Bay Trail SOC Chipset
Operating SystemWindows 10  (Optional 7/8/Linux)
Graphics CardIntegrated HD Graphic Display Core, Supports Dynamic Memory Allocation (DVMT)
Support VGA, HDMI, LVDS. Built-in Dual Channel 24bit LVDS Pin Header
Support Dual-Screen Display
3G Module  (Optional)PCI-E Standard Interface (Optional)
4G Module  (Optional)PCI-E Standard Interface (Optional)
WiFiDual Band WiFi
BluetoothBT4.0
GPS        (Optional)(Optional)
MIC         (Optional)(Optional)
RTC Real Time ClockSupport
Time SwitchSupport



InterfaceDC Port1*DC 2.5
HDMISupports HDMI Data Output, Up To 1080P
USB2.02
USB3.02
RJ45 Ethernet1*Realtec 8111F 1000M Default Single Network, Double Network Can Be Changed
SD/TF(Optional)
Headphone3.5mm standard interface
SMI Card (Optional)SIM Card Interface Standard Interface Supports Various Formats (Base on 3G/4G Module)
RS2322*RS232
RS485 1(Choose One From 422)
RS422 1(Choose One From 485)
GPIO/



Product ReliabilityOperating Temperature'-10 °C to 60 °C
Storage Temperature'-20 °C to 70 °C
HumidityHumidity: 95% Non-Condensing
Mean Time Between Failures (MTBF)7*24H



PowerPower Consumption (Maximum)35W
Power Consumption (Standby)
Power InputAC 100-240V 50/60Hz Passed CCC Certification, CE Certification
Power OutputDC12V / 5A
