  • Industrial Fanless Panel PC Mini Vehicle Computer Android Wall Mount Tablet PC Allwinner 7" 8" Non-Touch Screen 2* RS232  RJ45

Industrial Fanless Panel PC Mini Vehicle Computer Android Wall Mount Tablet PC Allwinner 7" 8" Non-Touch Screen 2* RS232 RJ45

stars, based on 0reviews
Price:
CHF$296.11 / piece
Bundle
  • 7 Inch
  • 8 Inch
optional functions
  • A64 Non-Touch Sceen
  • A64 Touch Sceen
  • JWS3399 Non-Touch
  • JWS3399 Touch Sceen
Quantity: - + 1000items available
Contact Us

Item specifics

Brand Name:
Kcosit
Inferface:
1*DC, 2*USB2.0,1*RJ45,1* HDMI,2*COM,1* WiFi Antenna
Product Type:
Windows tablet
Interface Type:
USB,RS232,USB, RS232
Products Status:
Stock
Operating System:
Android
Processor Manufacture:
A64,JWS3399
Screen Size:
7 Inch,8 Inch
RAM:
2GB,4GB
ROM:
8GB,32GB
Supporting Language:
Can install any languages by Microsoft offical website
Tags:
Panel pc, Industrial Panel pc, Industrial PC, industrial touch screen monitor, embedded computer systems, Embedded PC, industrial computers,,Industrial Fanless Panel PC,Mini Vehicle Computer,Android Wall Mount Tablet PC
Kcosit Rugged Devices --->Email: sales@kcosit.com

Industrial Panel PC Mini Vehicle Computer Android Wall Mount Tablet PC Allwinner 7" 8" Non-Touch Screen 2* RS232  RJ45




 Product Introduction
       The All-In-One Computer Adopts An All-Aluminum Alloy Structure, Fanless And Fully Enclosed Designed, Low Power Consumption,  Compact Appearance. It is An Industrial Product Specially Designed For A Variety of Environments. It Can Ensure Long-Term Stable Work in Harsh Environment. We Pay More Attention To its Reliability, Environmental Adaptability, Real-Time Performance, Scalability, EMC Compatibility And Other Performance in The Materials of The Whole Device. The configuration Adopts Allwinner A64 Cortex-A53  Quad-Core 64-Bit CPU Equipped With Android 6.0 System, With A High-Definition Display Interface, Multiple COM Interfaces, and USB interface, Meets Various Application Interfaces Required By The Scene, Provides A Variety of Work Efficiency, And is Widely Used in High-End Automation Fields Such As Industrial Control, Military Industry, Communication, Electricity, And Network.


Compact Appearance, Multiple Installation Methods
         The Military-Grade Aluminum Alloy Structure of The Device, High-Efficiency Heat Dissipation Design (Compatible With Fans), Ensure Stable Operation In Harsh Environments, Increase The Service Life of The Device, Safety And High Efficiency, No Noise. It Can Be Applied to High Dust, High Vibration, High Temperature, Low Temperature And Other Environments



Standard V
ersion (Without 4G functions ,Without GPS , No Phone Call Functions)

  • Operation System:  A64 Cpu=Android 6.0   (Optional JWS3399 CPU=Android 7.1/Android9.0)
  • CPU:  Allwinner A64  Quad-core 64-bit CPU  1.5GHz
              (Optional JWS3399 Six-core 64-Bit  2.0GHz  Android 7.1 or Android 9.0)
  • GPU:  Allwinner A64= Mali-400MP2      JWS3399=Mali-T860MP4
  • Display Size: 7"  (optional 7"~21.5" )
  • Display Resolution : 1024X600 Pixel IPS  Capacitive Touch  Brightness: 300cd/m2                                                                        (Optional Non-touch Screen ,If Need Non-Touch Screen Place order Choose the optional)
  • Memory: A64 CPU= 2GB  RAM      (Optional JWS3399 CPU=4GB)
  • Storage:  A64 CPU= EMMC 8GB     (Optional JWS3399 CPU=32GB )
  • Built-in : Dual Band WiFi ,Bluetooth BT4.0 (Optional 3G/4G Module  SIM, GPS Module)

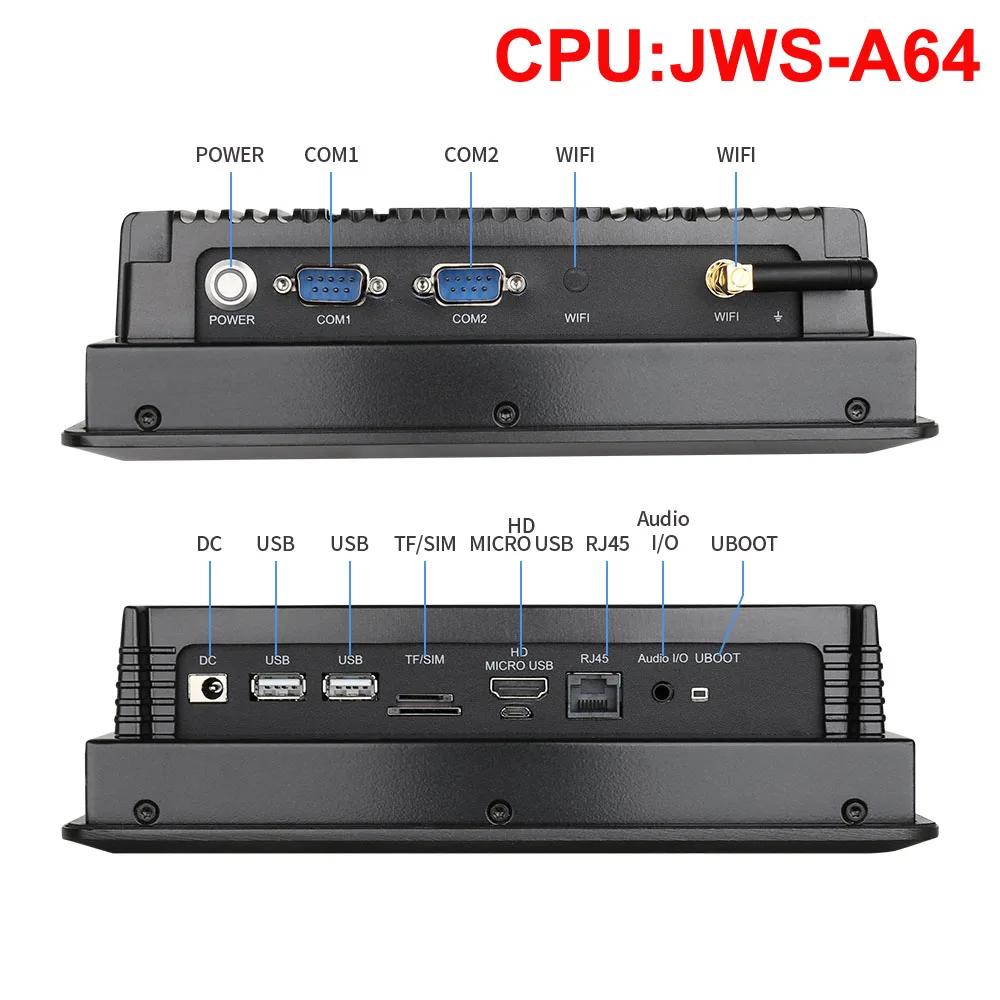

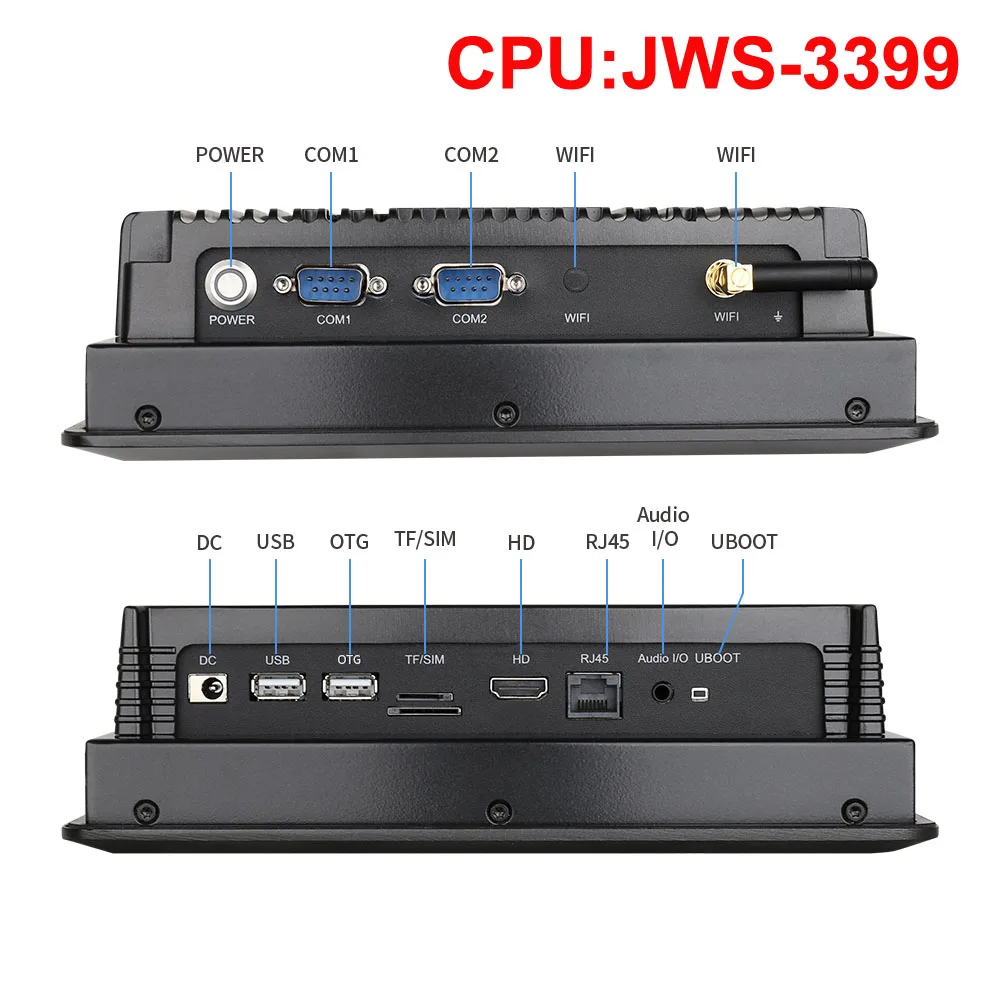

  • Inferface : 1*DC+ 2*USB2.0+2*USB3.0+1*RJ45+1* HDMI+1*VGA+1*COM1+2* WiFi Antenna                                          (Optional  2*RJ45)
  • Widely Voltage Input: 12V~36V









Screen ParameterSize7"8"
ColorChroma :16.7M
Brightness (Standard Value)Brightness: 300cd/m2
Contrast500:1
Response Time6.5ms



Touch ScreenTouch Screen TypeCapacitive Touch Screen (Optional Non-Touch Screen)
Resolution500DPI
Input MethodHandwriting or Capacitive Pen
Surface Hardness7H
CalibrationSupport



Hardware ConfigurationCPUAllwinner A64  Quad-Core 64-Bit CPU  1.5GHz
(Optional   JWS3399 Six-Core 64-Bit  2.0GHz)
MemoryDDR3  2G    (Optional 2G/4G/8G)
StorageEMMC 8G    (16/32/64G Optional)
Operating SystemA64 Cpu=Android 6.0   (Optional JWS3399 CPU=Android 7.1/Android9.0)
Graphics CardAllwinner A64       Mali-400MP2

JWS3399               Mali-T860MP4
3G Module  (Optional)PCI-E Standard Interface (Optional)
4G Module  (Optional)PCI-E Standard Interface (Optional)
WiFi2.4G WiFi
BluetoothBT4.0
GPS        (Optional)(Optional)
MIC         (Optional)(Optional)
RTC Real Time ClockSupport
Time SwitchSupport



InterfaceDC Port1*DC 2.0
HDMISupports HDMI Data Output, Up To 1080P
USB2.02
USB-OTG1
RJ45 Ethernet1 *10M/100M/1000M adaptive Ethernet
SD/TFTF data storage, maximum support 32G
Headphone3.5mm standard interface
SIM Card (Optional)SIM Card Interface Standard Interface Supports Various Formats (Base on 3G/4G Module)
RS2322*RS232
RS485 (Optional)
RS422 (Optional)
GPIO(Optional)



Product ReliabilityOperating Temperature'-10 °C to 60 °C
Storage Temperature'-20 °C to 70 °C
HumidityHumidity: 95% Non-Condensing
Mean Time Between Failures (MTBF)7*24H



PowerPower Consumption (Maximum)15W
Power Consumption (Standby)
Power InputAC 100-240V 50/60Hz Passed CCC Certification, CE Certification
Power OutputDC12V / 4A
