  • Kiosk Panel PC

Industrial kiosk Panel PC 8 inch embedded Computer Vesa Wall Mount All In One PC

stars, based on 2reviews
Price:
$398.80 / piece
Optional
  • J1900 4GB RAM NO SSD
  • J1900 4GB RAM 64GB
  • J1900 4GB RAM 128GB
  • J1900 4GB RAM 256GB
Quantity: - + 1000items available
Contact Us

Item specifics

Brand Name:
Kcosit
Model:
MINI PC
Product Type:
Windows tablet
Interface Type:
USB,COM,WiFi Antenna ,COM
Products Status:
Stock
Operating System:
Windows OS
Screen Size:
8 Inch
Display resolution:
800x600(Optional 1024x768)
RAM:
4GB
ROM:
64GB,128GB
Supporting Language:
Can install any languages by Microsoft offical website
Tags:
Panel pc, Industrial Panel pc, Industrial PC, industrial touch screen monitor, embedded computer systems, Embedded PC, industrial computers,,Industrial Panel PC, Embedded Mini PC, Linux,Windows 10,
Kcosit Rugged Devices --->Email: sales@kcosit.com

2024 Small Industrial Mini PC Windows 10/Linux 8 Inch Touch embedded Panel PC J1900 4GB RAM WIFI Vesa Wall Mount  All In One PC





System
ModelKCT-8000
ProcessorIntel® Celeron® J1900, 2.00GHz,up to 2.42GHz
System Memory1x DDR3L SODIMM SKU, Up to 8GB  (Optional)
Ethernet2x GbE R J45 Intel® i211-A T
I/O Port3 x USB2.0 , 1 x USB3.0
1 x DB-9 COM1 RS-232
3 x 3 -wire COM 2 & COM 3&COM4,RS-232with terminal block
2 x 3 -wire COM 5& COM 6 R S-485 with terminal block
1 x Audio Line-out
2 x 8Ω 1W Audio AMPout
1 x A T/ATX switch
1 x HDMI
1 x 8 bit GPIO (Optional)
Storage Disk Driver1 x MSATA
1 x SATA (2.5'' SATA)
Expansion SlotMini-PCIe x1 full size with SIM Card for 3G/4G (Optional)
Watchdog timer1~255 Levels
OS SupportWindows® 7 /8/10,   WES 7,LINU X (Optional)
Mechanical
ConstructionAluminum

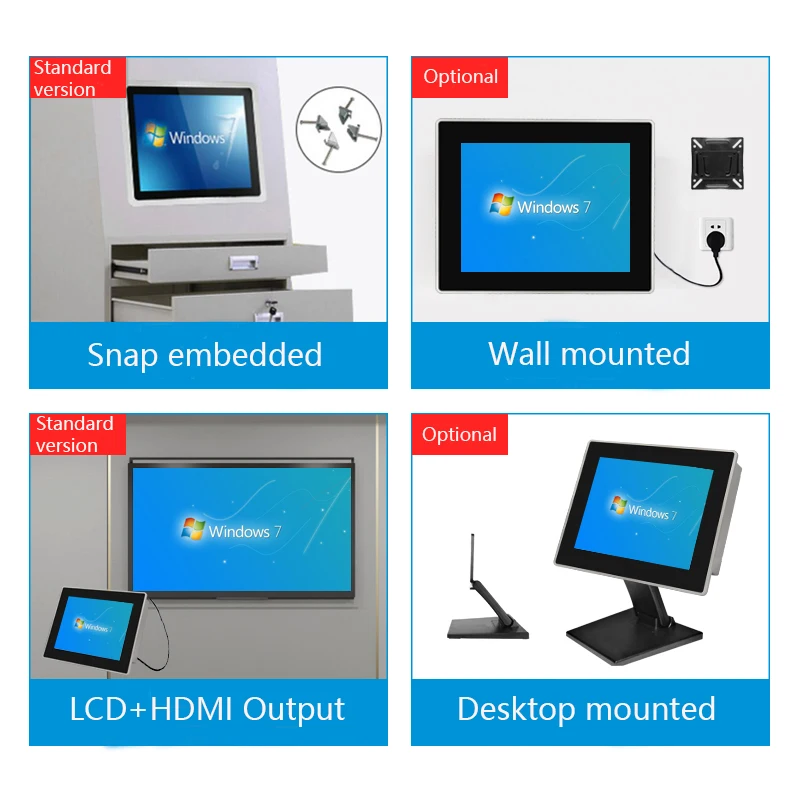

MountingVESA 75/ Panel mount

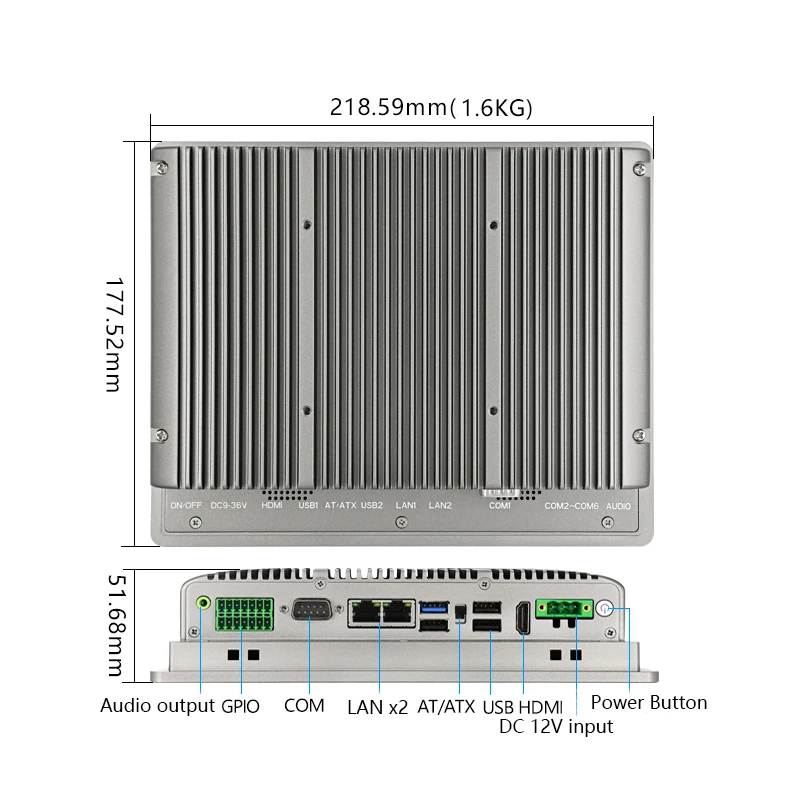

Dimension218.59x177.52x51.68 mm
Net Weight1.6KG
Environmental
Operating Temperature-20 °C ~ 60 °C
Storage Temperature- 30°C ~ 70°C
Storage Humidity10~90% @30°C,  non-condensing
Adapter
DC inputDC 12V 3-pin  with 3-pin terminal block
Display
Display Type8.0" TFT -LCD
Max.Resolution800x600(Optional 1024x768)
Max.Colors16.2M
Luminance250 cd/m²
Viewing Angle(CR>=10)-8 5 ~ 8 5 ° ( H) , - 8 5 ~ 8 5 ° ( V )
Back LightLED
Back Light MTBF30,000
Touch Screen
Type5-wire, analog resistive
Light Transmission﹥85%
Life time10 million activations
