Industrial Kiosk Panel PC Console Win10 All In One Embedded Computer 15 Inch Touchscreen
stars, based on 2reviews
Price:
- Optional
-
- 15.0 J1900 4GB NoSSD
- 15.6 J1900 4GB NoSSD
- 15.0 J1900 4GB 64GB
- 15.6 J1900 4GB 64GB
- 15.0 I5-6200 8GB 128
- 15.6 I5-6200 8GB 128
- 15.0 I7-6500U 8GB128
- 15.6 I7-6500U 8GB128
- 15.0 I5-8250U 8GB256
- 15.6 I5-8250U 8GB256
- 15.0 I7-8500U 8GB256
- 15.6 I7-8500U 8GB256
Item specifics
Brand Name:
Kcosit
Model:
Panel PC
Product Type:
Windows tablet
Interface Type:
USB,COM,WiFi Antenna ,COM
Products Status:
Stock
Operating System:
Windows® 7/8/10, WES 7, Linux (Optional)
Screen Size:
15.0 Inch,15.6 Inch
Display resolution:
1024 x768 ( Optional 800 x 600 )
RAM:
4GB,8GB
ROM:
64GB,128GB,256GB
Supporting Language:
Can install any languages by Microsoft offical website
Tags:
Panel pc, Industrial Panel pc, Industrial PC, industrial touch screen monitor, embedded computer systems, Embedded PC, industrial computers,,Industrial Panel PC, Embedded Mini PC, Linux,Windows 10,
Kcosit Rugged Devices --->Email: sales@kcosit.com
Industrial Console Win10 All In One Computer Embedded PC Kiosk Touchscreen Tablet Intel I5 I7 15" 8GB RAM Dual WiFi RS232 RJ45
| System | |||||||
| Model | BST-1501.BST-1506 | ||||||
| Processor | Onboard Intel Celeron J1900/4th/6th/7th/8th Gen.Core i3/i5/i7 CPU(Optional) | ||||||
| System Memory | Onboard DDR3 4GB/ Optional SODIMM SKU up to 8GB (Optional) | ||||||
| Ethernet | 2 x GbE RJ45 Intel® i211 | ||||||
| I/O Port | 3 x USB2.0, 1 x USB3.0, 1xUSB2.0 dongle 2 x DB-9 COM1&COM2,RS-232/422/485 2 x 3-wire COM3&COM4 RS-232/485 with terminal block 2 x 3-wire COM5&COM6 RS-232 with terminal block 1 x Audio Line-out 2 x 8Ω 1W Audio AMP out 1 x Remote switch with terminal block 1 x AT/ATX switch 1 x HDMI 1 x 14bit GPIO (Optional) | ||||||
| Storage Disk Driver | 1 x MSATA 1 x SATA ( 2.5"HDD ) 1x M.22 ( not available on J1900 CPU ) | ||||||
| Expansion Slot | Mini-PCIe x1 full size with SIM Card for 3G/4G Mini-PCIe x1 half size for WIFI/BLT (Optional) | ||||||
| Watchdog timer | 255 Levels | ||||||
| OS support | Windows® 7 /8/10 , WES 7, Linux (Optional) | ||||||
| Mechanical | |||||||
| Construction | Aluminum | ||||||
| Mounting | VESA 75/ Panel mount | ||||||
| Dimension | 399x248x55 mm | ||||||
| Net Weight | TBD | ||||||
| Environmental | |||||||

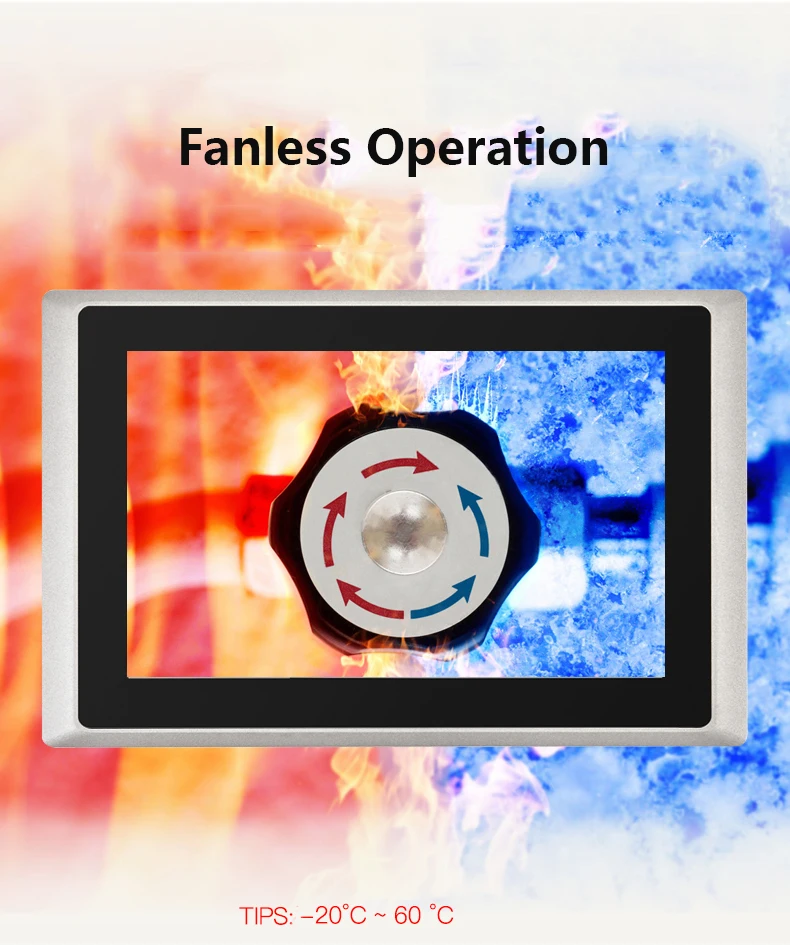

| Operating Temperature | -20°C ~ 60 °C | ||||||
| Storage Temperature | -30°C ~ 70°C | ||||||
| Storage Humidity | 10~90% @30°C, non-condensing | ||||||
| Power Supply | |||||||
| DC Input | DC 9 ~ 36V with 3-pin terminal block | ||||||
| LCD | |||||||
| Display Type | 15.6" /15.0" TFT -LCD (Optional) | ||||||
| Max.Resolution | 1920 x1080 | ||||||
| Max.Colors | 262K | ||||||
| Luminance | 250 cd/m² | ||||||
| Viewing Angle(CR>=10) | -8 5 ~ 8 5 ° ( H) , - 8 5 ~ 8 5 ° ( V ) | ||||||
| Back Light | LED | ||||||
| Back Light MTBF (hours) | 30,000 | ||||||
| Touch Screen | |||||||
| Type | Projection capacitor screen | ||||||
| Light Transmission | ﹥85% | ||||||
| Life Time | ﹥50 million activations | ||||||
