Industrial Android Panel PC K10R All In One Computer 1000nits Touch Screen 10.1" RK3288
stars, based on 0reviews
Price:
- Bundle
-
- 2GB RAM 16GB ROM
- 4GB RAM 64GB ROM
- optional functions
-
- Standard Version
- ADD WiFi+Bluetooth
- ADD 4G LTE
- ADD GPS
- ADD Front Camera
- ADD WiFi+Bluetooth+4G LTE+GPS
- ADD WiFi+Bluetooth+4G LTE+ GPS+Camera
Item specifics
Brand Name:
Kcosit
Model:
K10R
Product Type:
Android rugged tablet
Interface Type:
USB,RS232,USB, RS232,RS485/422
Scanning Light Source:
Scan Element Type:
Scan Speed:
Products Status:
Stock
Operating System:
Android 10.0
Processor Manufacture:
Rockchip RK3288
Processor Model:
Rockchip RK3288 Cortex®-A17 Quad-core 1.8GHz processor
Screen Size:
10.1
Display resolution:
1280x800
Touch Screen Type:
Capacitive Screen
RAM:
2GB RAM ,4GB RAM
ROM:
16GB ROM,64GB ROM
Cell Capacity:
Cellular:
GSM/WCDMA/ 4G LTE
Tags:
In-Vehicle Tablet, Rugged tablet, Rugged Android Tablet, Waterproof Tablet, all-in-one computers, workplace tablets,,Truck Vehicle Tablet PC,Android ACC Power,1000 Nits
Kcosit Rugged Devices --->Email: sales@kcosit.com
Optional Functions
Industrial Android10.0 Tablet Wall Mount Panel PC K10R All In One Slim 1000nits Touch Screen 10.1" RK3288 4GB RAM RJ45 RS232
Standard Version Spec (NO WiFI Bluetooth+NO 4G LTE+No Camera+ NO GPS+No Battery)
- Operation System: Android 10.0
- CPU: Rockchip RK3288 Cortex-A17 Quad-core 1.8GHz processor
- GPU Mali-T764
- Display Resolution : 10" HD (1280 x 800), Sunlight Readable 1000cd/m²
- RAM+ROM: =2GB RAM+16GB ROM
- RAM+ROM: =4GB RAM+64GB ROM (Optional)
- AC Power Support 9V~36V Input
- Standard Interfaces +Extended Cable Interfaces:
- 1X RJ45 LAN 1000M
- Com RS232x3
- GPIOx4 ( 2xinput o+2X output)
- HDMI X1 output Support up to 1080P
- SIM Card (4G lte Function optional)
- MicroSD Card x1 Support up to 128GB
- USB Host 2X,USB type-C OTGx1
- Earphone Jack 3.5mm
Optional Functions
- Front Camera 5.0MP (Optional)
- WiFi+ Bluetooth 5.0(Optional)
- GPS GNSS Built-in or External(Optional)
- 4G LTE 3G/4G(Optional)

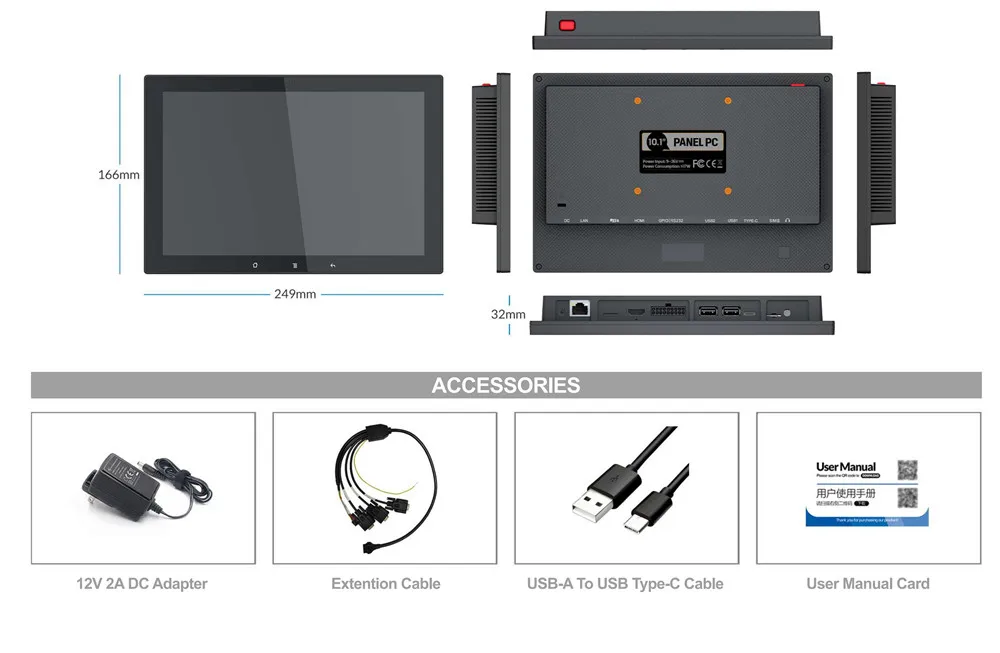

Standard Package includes:
1. 1X Tablet Panel PC (Without Battery)
2. 1X 12V AC Charger(US or EU )
3. 1X USB Cable
4. 1X Extention Cable

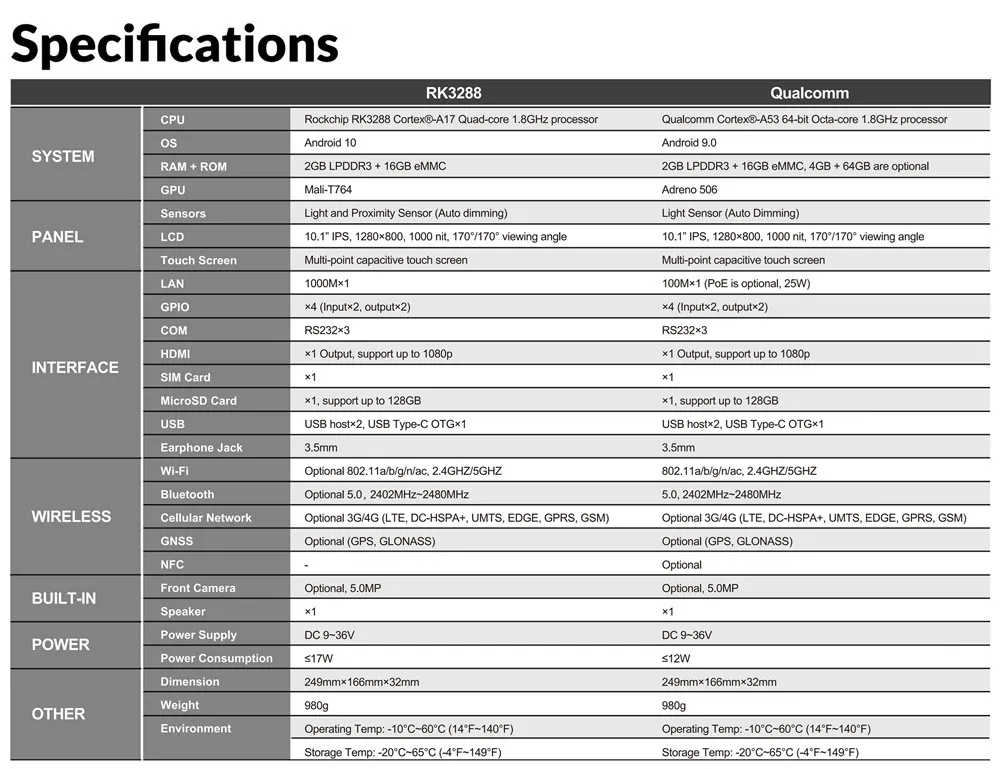

| Model NO. | K10R | ||
| SYSTEM | CPU | Rockchip RK3288 Cortex®-A17 Quad-core 1.8GHz processor | |
| OS | Android 10.0 | ||
| RAM + ROM | 2GB LPDDR3 + 16GB eMMC (4GB RAM+64GB emmc Optional) | ||
| GPU | Mali-T764 | ||
| PANEL | Sensors | Light and Proximity Sensor (Auto dimming), Gyroscope & Acceleration | Light Sensor (Auto Dimming) |
| LCD | 10.1" IPS, 1280×800, 1000 nit, 170°/170° viewing angle | ||
| Touch Screen | Multi-point capacitive touch screen | ||
| INTERFACE | LAN | 1000M×1 | |
| GPIO×4 (Input×2, output×2) | |||
| COM | RS232×3 | ||
| HDMI | ×1 Output, support up to 1080p | ||
| SIM | ×1 | ||
| Micro SD Card | ×1, support up to 128GB | ||
| USB | USB host×2, USB Type-C OTG×1 | ||
| Earphone Jack | 3.5mm | ||
| WIRELESS | Wi-Fi | 802.11a/b/g/n/ac, 2.4GHZ/5GHZ | Optional |
| BT | 5.0, 2402MHz~2480MHz | Optional | |
| Cellular Network | 3G/4G (LTE, DC-HSPA+, UMTS, EDGE, GPRS, GSM) Optional | ||
| GNSS | (GPS, GLONASS) Optional | ||
| NFC | Without | Optional | |
| BUILT-IN | Front Camera | 5.0MP Optional | |
| Speaker | ×1 | ||
| POWER | Power Supply | DC 9~36V | |
| Power Consumption | ≤17W | ||
| OTHER | Dimension | 249mm×166mm×32mm | |
| Weight | 980g | ||
| Environment | Operating Temp: -10°C~60°C (14°F~140°F) | ||
| Storage Temp: -20°C~65°C (-4°F~149°F) | |||
