Kcosit K70AL Rugged 7 Inch Linux Yocto Project Tablet with CANbus, IP67 ELD M12 Connector
stars, based on 0reviews
Price:
- Bundle
-
- 3GB RAM 32GB ROM
- 4GB RAM 64GB ROM
- optional functions
-
- Dock Station Vesion
- M12 Connector Vesion
- Dock N RAM Bracket
- M12 N RAM Bracket
Item specifics
Brand Name:
Kcosit
Model:
K70 AL
Product Type:
Android rugged tablet
Interface Type:
USB,RS232,USB, RS232,RS485/422,NFC
Scanning Light Source:
Scan Element Type:
Scan Speed:
Products Status:
Stock
Operating System:
Linux Yocto
Processor Manufacture:
Qualcomm Cortex-A53
Processor Model:
Qualcomm Cortex-A53 64-bit Quad-Core Process 2.0 GHz
Screen Size:
7.0
Display resolution:
1280x800
Touch Screen Type:
Capacitive Screen
RAM:
LPDDR4 3GB/4GB (optional)
ROM:
eMMC 32GB/64GB (optional)
Cell Capacity:
5000mAH
Cellular:
GSM/WCDMA/ 4G LTE
Tags:
In-Vehicle Tablet, Rugged tablet, Rugged Android Tablet, Waterproof Tablet, all-in-one computers, workplace tablets,,Rugged Table,Android Vehicle Tablet PC,IP67,Industrial Panel
Kcosit Rugged Devices --->Email: sales@kcosit.com Product Overview
Product Overview
The Kcosit K70AL is a 7-inch rugged tablet, designed for industrial and vehicle-mounted applications. Powered by Linux Yocto, this tablet is ideal for precision agriculture, fleet management, and logistics. Its two configurations—Docking Station and M12 connectors—offer flexibility for vehicle integration. The K70AL supports CANbus, RS232, RJ45, and GPIO, and features an 8-36V power supply with ACC support. Built to withstand extreme conditions, it is IP67-certified for waterproof, dustproof, and shock resistance, making it perfect for harsh environments.
Linux Yocto for Custom Development in Industrial Applications
The Kcosit K70AL runs on Linux Yocto, a highly customizable and lightweight operating system ideal for industrial use. This operating system enables businesses to develop specific applications for industries such as precision agriculture, fleet management, and logistics. By leveraging Yocto's modular capabilities, users can optimize their workflows, ensuring that the K70AL rugged tablet meets the unique demands of their operations. Whether it's real-time data collection in the field or managing logistics for fleet vehicles, this rugged tablet enhances operational efficiency and scalability.Docking Station and M12 Connectors for Vehicle Integration

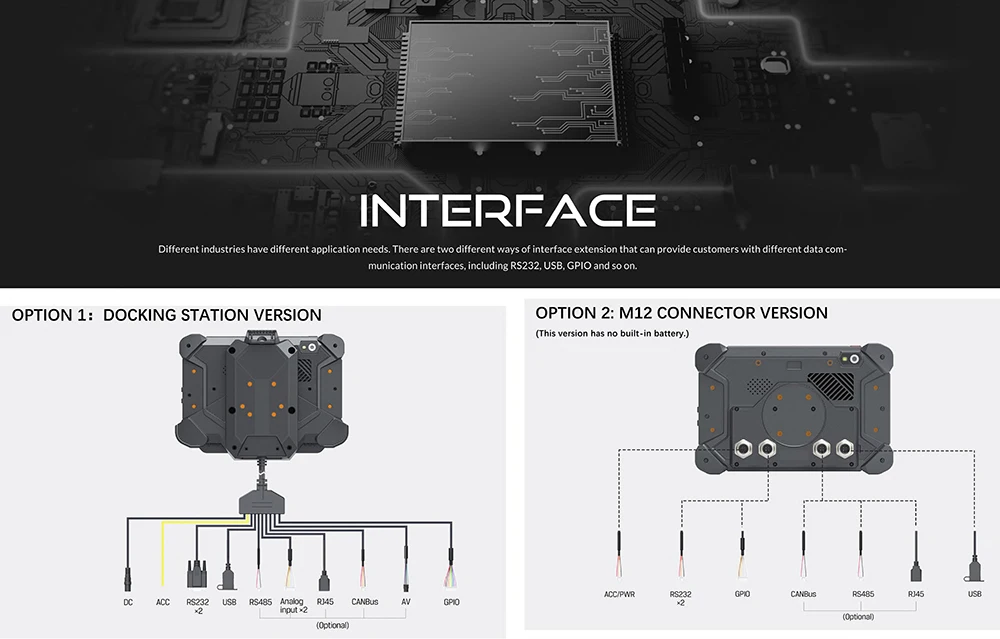

The Kcosit K70AL stands out with its versatile Docking Station option and M12 connectors, designed for seamless vehicle integration. For transportation industries that rely on rugged devices, this tablet offers easy installation in trucks, buses, agricultural machinery, and other vehicles. The M12 connectors provide robust, secure connections that are resistant to dust, water, and vibrations, ensuring uninterrupted data transmission. These features make the K70AL tablet ideal for applications such as vehicle diagnostics, fleet tracking, and remote monitoring. The ease of docking ensures that operators can quickly mount and remove the device for both stationary and mobile operations.Advanced Connectivity for Vehicle Monitoring and Control
Equipped with advanced connectivity options such as CANbus, RS232, RJ45, and GPIO, the Kcosit K70AL is designed for real-time vehicle monitoring and control systems. These connectivity options enable users to interface with essential vehicle components, allowing for precise diagnostics, data logging, and automation in transportation and industrial settings. The rugged tablet supports a wide 8-36V power input and ACC support, ensuring that it is adaptable for a variety of vehicle-mounted applications, from long-haul trucks to industrial machines, providing reliable performance even in fluctuating power conditions.Durability in Harsh Industrial Environments
Built to endure extreme conditions, the Kcosit K70AL is IP67-certified, making it both waterproof and dustproof. Its compliance with MIL-STD-810G standards ensures that it can withstand shock, vibration, and temperature extremes, making it the perfect solution for industries that operate in rugged or hazardous environments. Whether it's in construction, agriculture, or logistics, this rugged tablet offers durability and reliability, significantly reducing downtime and maintenance costs. The Kcosit K70AL is engineered to thrive in the toughest conditions, offering maximum uptime and efficiency for industrial operations.StandardVersion (NO Camera +NO Docking Station+No RAM Mount)
- Waterproof Grade: IP67 Waterproof Level Shockproof and Dustproof
- Operation System: Linux Yocto
- CPU: Qualcomm Cortex-A53 Quad-Core Processor, 2.0 GHz
- Display Resolution : 7" HD (1280 x 800), Sunlight Readable 800 Nits
- RAM+ROM: =3GB RAM+32GB eMMC (Optional 4GB RAM+64GB ROM)
- Battery Capacity: 5000mAH Replaceable
- Built-in 4G, WiFi ,GPS Module, Bluetooth Module
- Sim Card Quantity: Single SIM Card (Support Phone Call)
- Band Mode :
- EU Version EMEA/Ko-Rea/Thailand
- 4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
LTE TDD: B38/B40/B41
3G WCDMA: B1/B2/B4/B5/B8
2G GSM: 850/900/1800/1900MHz - US Version North America
- 4G LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71
LTE TDD: B41
Standard Package Includes:
1. 1X Tablet
2. 1X Battery 5000mAh (Only For Docking Station Version)
3. 1X AC Charger(US or EU )
6. 1x Docking Station (Optional)
7. 1x RAM Bracket (Optional)

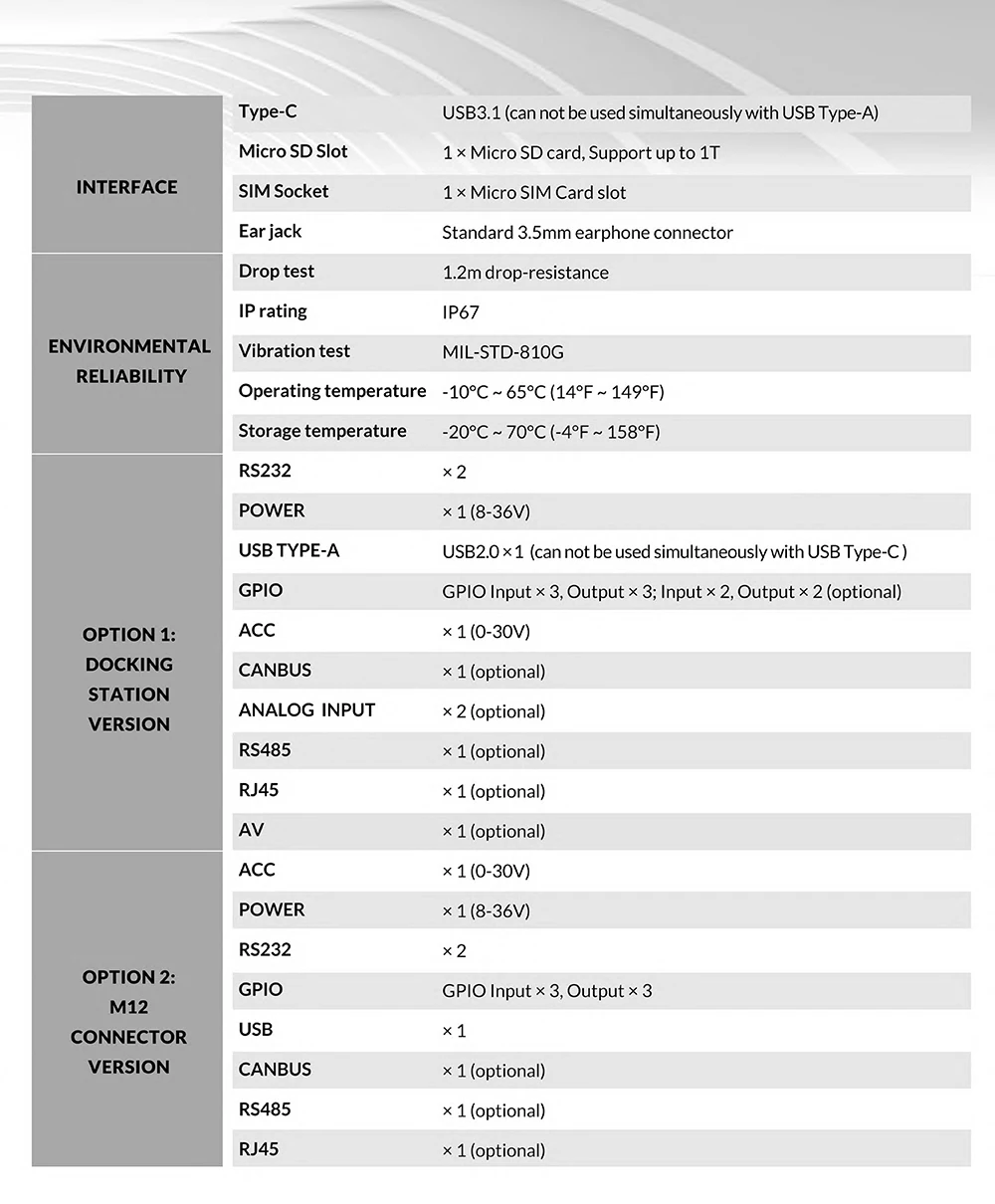

| SYSTEM | CPU | Qualcomm Cortex-A53 64-bit Quad-Core Process 2.0 GHz |
| OS | Linux Yocto (kernel version: 5.4.191) | |
| GPU | AdrenoTM 702 | |
| STORAGE | RAM | LPDDR4 3GB/4GB (optional) |
| ROM | eMMC 32GB/64GB (optional) | |
| DISPLAY | LCD | 7 Inch IPS Panel, 1280x 800,800 nits |
| Screen | Multi-point Capacitive Touch Screen | |
| AUDIO | Microphone | Integrated |
| Speaker | 2W | |
| COMMUNICATION | GNSS | NA version: GPS/BeiDou/GLONASS/Galileo |
| NavIC, LI + L5; Internal Antenna | ||
| EM version: GPS/BeiDou/GLONASS/Galileo | ||
| Internal Antenna | ||
| 2G/3G/4G | US Version: LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 | |
| US Version: LTETDD: B41 | ||
| EU Version : LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 | ||
| EU Version :LTE TDD: B38/B40/B41 EU Version | ||
| EU Version :WCDMA: B1/B2/B4/B5/B8 EU Version | ||
| EU Version : GSM/EDGE 850/900/1800/1900 MHz | ||
| WIFI | 802.11a/b/g/n/ac; 2.4GHz&5GHz | |
| Bluetooth | 2.1 EDR/3.0 HS/4.2 LE/5.0 LE | |
| SENSOR | Integrated | Acceleration, Gyro sensor, Compass, Mambient, Light Sensor |
| INTERFACE | Type -C | (can not be used simultaneously with USB Type-A on the device) |
| MicroSD Slot | 1 x Micro SD card, Support up to 1T | |
| SIM Socket | 1 x Micro SIM Card slot | |
| Ear Jack | Standard 3.5mm earphone connector | |
| POWERSUPPLY | Power | DC 8-36V |
| Battery | 3.7V, 5000mAh battery (only for Docking Station Version ) | |
| ENVIRONMENTAL RELIABILITY | Drop Resistance | 1.2M |
| IP Rating | IP67 | |
| Vibration Test | MIL-STD-810G | |
| Operating Temperature | -10oC-65°C(14oF-149°F) | |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
