Kcosit K110J Rugged Tablet PC Waterproof Windows 11 Forklift Mounted Terminal 10.1" CAN BUS LAN CVBS

Kcosit K110J Rugged Tablet PC Waterproof Windows 11 Forklift Mounted Terminal 10.1" Intel N5100 4GB RAM 4G LTE CAN BUS LAN CVBS

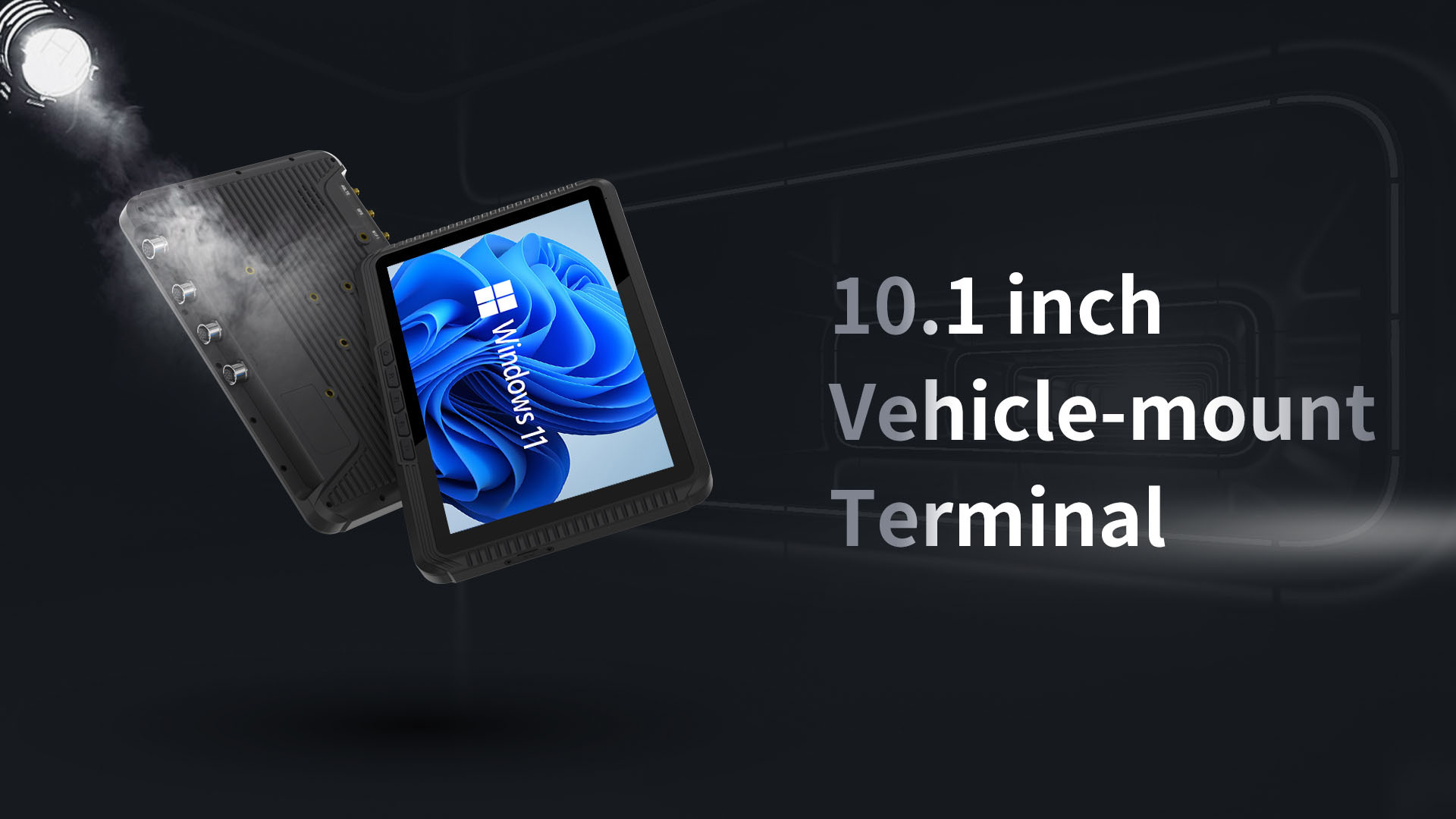

10.1 inch Vehicle-mounted Terminal
Standard (With GPS+ WiFi+ No 4G LTE+No Battery+NO Camera)

• Waterproof Grade:  IP65eration System :  Windows 11 Pro
• RAM+ROM: 4GB RAM+64GB ROM
• CPU: Intel JASPER LAKE N5100   Max 2.8GHz
• Display Resolution : 10.1 inch 16:10   800*1280 IPS
• Built-in    2.4G+5.8G WiFi ,GPS Module, Bluetooth Module
•

• Battery Capacity: 1000mAH Replaceable  (Optional)
• Sim Card Quantity:  Single SIM Card (Optional)
• Band Mode :(Optional)
• LTE FDD: B1/B3/B5/B7/B8/B20
  LTE-TDD B40
  WCDMA: B1/B5/B8
  GSM: 900/1800

• Kcosit K110J Optional Functions	4G LTE
  	1000mAh Battery
  	NFC
  	PORT1 (M12-12) (optional) 1000M network interface, Standard 8 pin Ethernet signal (100M/1000M high-speed Ethernet)= Optional : ADD RJ45 And Cable
  	PORT2 (M12-12) (optional) RS232 *1+RS232/RS485 *1, 9PIN DB9 full function serial port RS232; 3PIN data transmission RS485/3PIN data transmission RS232= Optional : ADD RS232 And Cable
  	PORT3 (M12-12) (optional) USB 2.0 *2+CAN/CVBS *1, USB2.0 standard interface *2; Optional CAN or CVBS *1 for customer debugging= Optional : ADD Can Bus N Cable
  	Cigarette lighter adapter 19V3.42A Cigarette Lighter Adapter
  	Power adapter=Optional : ADD Power Adapter 19V3.42A  DC φ5.5 power adapter
  	Power adapter cable Transfer 8 pin power lines to 8 loose wires (1.2M) to meet the customer's self wiring requirements.
  	Vesa         RAM 75mm*75mm    38*30mm
  	Function adapter cable,Multi function adapter selection,12PIN to 2-way USB 1-way CAN
  	Function adapter cable,Multi function adapter selection, 12PIN to full function RS232 power line + serial communication 485
  	Function adapter cable,Multi function adapter selection, 12PIN to 1000M RJ45
  	Function adapter cable,Multi function adapter selection, 12PIN to 12 loose wires 1.2m to meet the customer's demand for self connection
  	Wide voltage module=Optional : ADD  Wide Voltage Wide voltage demand when the power supply is unstable, External 9V~36V wide voltage DC module, 9~36V wide voltage input, 12V ± 0.5V constant voltage output to equipment

Standard Packge Include:

1. 1X 10.1 inch Tablet
2. 1X WIFI Rod Antenna
3. 1X GPS Rod Antenna

Tech Spec
Product Form	10.1 inch Vehicle-mount Terminal
Dimension	264.5*184.1*23.0 mm
Weight	834g
Product Color	Black
CPU	Intel JASPER LAKE N5100   Max 2.8GHz
GPU	Intel® HD Graphics Gen 11 LP
Memory	RAM 4GB  LPDDR3        ROM  64GB    EMMC       8GB+128GB ROM/16GB RAM+512GB ROM  (Optional))
Operating System	Windows 11 Pro   Optional:  Windows 11 IOT
Display	Type: LCD Size: 10.1 inch 16:10  Resolution:  800*1280 IPS Brightness: 700cd/㎡
Touch Pannel	5-point tempered glass capacitive screen G+G, hardness 7H
Buttons	Power *1 Volume Adjustment Key (+) *1 (F1 Key) Volume Adjustment Key (-) *1 (F2 Key) Customizable *1 (F3 Key) Customizable *1 (F3 Key)
Indicator Light	1. Power indicator (blue when starting) 2. Charging lamp (red when DC is powered on) 3. Full charge indicator light (green when full with battery, not on when no battery)
Speaker	1.5W *1, Single horn (Maximum 2W)
Microphone	Single MIC
RTC	Built in 2032 RTC dry battery
Battery (Tablet)	Optional, Built in polymer lithium ion battery 1000mAh/7.4V 30 mins (50% volume sounds, 200 nits brightness, 1080P HD video display by default), It is used to support normal power off and protect user data.
WIFI	WIFI 802.11(a/b/g/n/ac)  Dual frequency 2.4G+5.8G
Bluetooth	BT5.0 (BLE) class1  Transmited distance: 10m
4G	Optional, South America or North America module, LTE FDD: B1/B3/B5/B7/B8/B20  LTE-TDD B40 WCDMA: B1/B5/B8 GSM: 900/1800
GPS	Built in, Ublox 7 supports GPS, GLONASS Optional, Huada Beidou/Ublox M8Q
NFC	Optional, NXP300

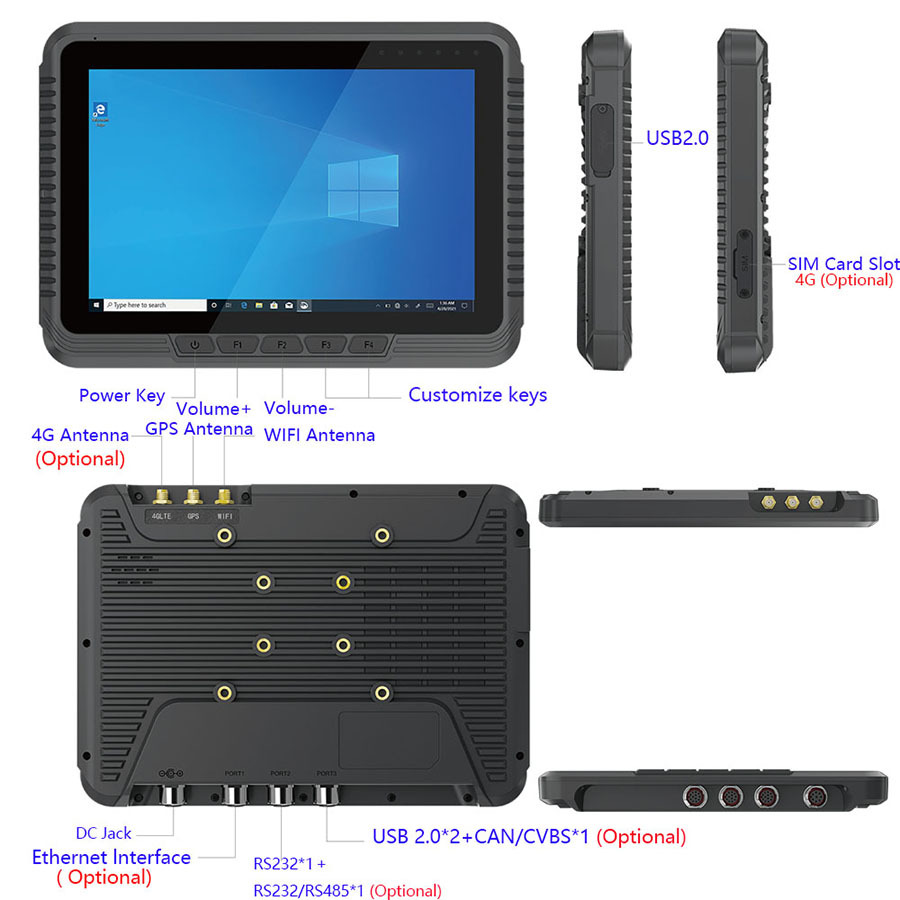

Interface	SIM card slot (optional) Nano-SIM *1
	Standard USB-A port / Data transmission USB 3.0 *1, USB A port, HOST data transmission
	Power interface DC input (Input: 11~24V), Compatible: 2-way GPIO customized for customer customization

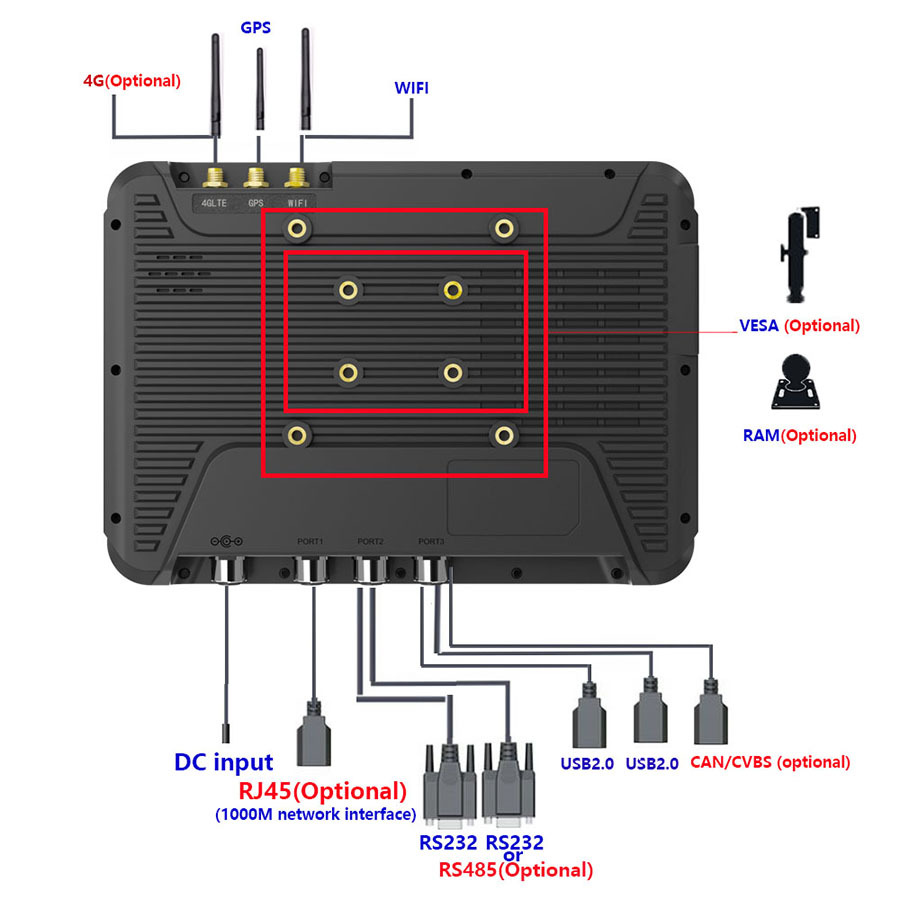

	PORT1 (M12-12) (optional) 1000M network interface, Standard 8 pin Ethernet signal (100M/1000M high-speed Ethernet)
	PORT2 (M12-12)(optional) RS232 *1+RS232/RS485 *1, 9PIN DB9 full function serial port RS232; 3PIN data transmission RS485/3PIN data transmission RS232
	PORT3 (M12-12)(optional) USB 2.0 *2+CAN/CVBS *1, USB2.0 standard interface *2; Optional CAN or CVBS *1 for customer debugging
Rugged Features	Working temperature: -20 °C to 60 °C
	Storage temperature: -30 °C to 70 °C
	±8kV contact discharge, ±15kV air discharge
	Humidity: 95% Non-Condensing
Certification	IP65
	CE
	CCC
	FCC
Standard Accessories	WIFI rod antenna 2.4~2.5GHZ /5.15~5.85GHz ,2±0.5 dBi
	GPS rod antenna
	Power adapter cable 8 PIN aviation plug φ 5.5 The power supply port (suitable for cigarette lighter car charger, etc.) is 30CM, which is used in the off vehicle use environment to meet the customer's 220V input.
Optional Accessories	4G rod antenna 4G rod antenna shall be used together with 4G module function, Frequency Rang:824~960/1710~2700MHz Return Loss:-6dB or less Frequency Rang:3.4~3.8/4.4~4.9GHz Return Loss:-10dB or less Gain:2.0±0.2 dBi
	Cigarette lighter adapter 19V3.42A Cigarette Lighter Adapter
	Power adapter 19V3.42A  DC φ5.5 power adapter
	Power adapter cable Transfer 8 pin power lines to 8 loose wires (1.2M) to meet the customer's self wiring requirements.
	Vesa 75mm*75mm
	RAM 38*30mm
	Function adapter cable Multi-function adapter selection, 12PIN to 2-way USB 1-way CAN
	Function adapter cable Multi-function adapter selection, 12PIN to full function RS232 power line + serial communication 485
	Function adapter cable Multi-function adapter selection, 12PIN to full function RS232 power line + serial communication 232
	Function adapter cable Multi-function adapter selection, 12PIN to 1000M RJ45
	Function adapter cable Multi-function adapter selection, 12PIN to 12 loose wires 1.2m to meet the customer's demand for self-connection
	Wide voltage module Wide voltage demand when the power supply is unstable, External 9V~36V wide voltage DC module, 9~36V wide voltage input, 12V ± 0.5V constant voltage output to equipment
	GPS vehicle mushroom antenna Active GPS mushroom antenna, line length 3M, 20dB ± 2dB
