Kcosit K180J Vehicle-Mounted Tablet PC Windows 10 8" Intel N5100 CAN BUS RS232 RJ45 Wide Voltage

stars, based on 0reviews
Price:
$509.80 / piece
Bundle
  • Standard No Battery
  • Standard ADD 4G LTE
  • Standard ADD Battery
  • ADD 4G And Battery
  • Standard ADD NFC
optional functions
  • 4GB RAM 64GB ROM
  • ADD RJ45 And Cable
  • ADD RS232 And Cable
  • ADD Can Bus N Cable
  • ADD Power Adapter
  • ADD Wide Voltage
Quantity: - + 1000items available
Contact Us

Item specifics

Brand Name:
Kcosit
Model:
K180J
Product Type:
windows rugged tablet
Interface Type:
Scanning Light Source:
Scan Element Type:
Scan Speed:
Products Status:
Stock
Operating System:
Windows 10 Home
Processor Manufacture:
Intel N5100
Processor Model:
Intel JASPER LAKE N5100   Max 2.8GHz
Display resolution:
1280x800
Touch Screen Type:
Capacitive Screen
RAM:
4GB
ROM:
64GB
Cell Capacity:
Optional
Battery Type (Optional):
Not Detachable
Cellular (Optional):
GSM/WCDMA/ 4G LTE
SIM Card Quantity (Optional):
Single SIM Card
Supporting Language:
Can install any languages by Microsoft offical website
Tags:
Rugged Tablet PC, Rugged Devices, Rugged Tablets, Industrial Tablet, Waterproof Tablet, IP 67 Waterproof Tablet, Ultra-Rugged Tablet PC, Rugged tablet With barcode scanner, Rugged Device Manufacturer, Vehicle-Mounted Tablet
Kcosit Rugged Devices --->Email: sales@kcosit.com

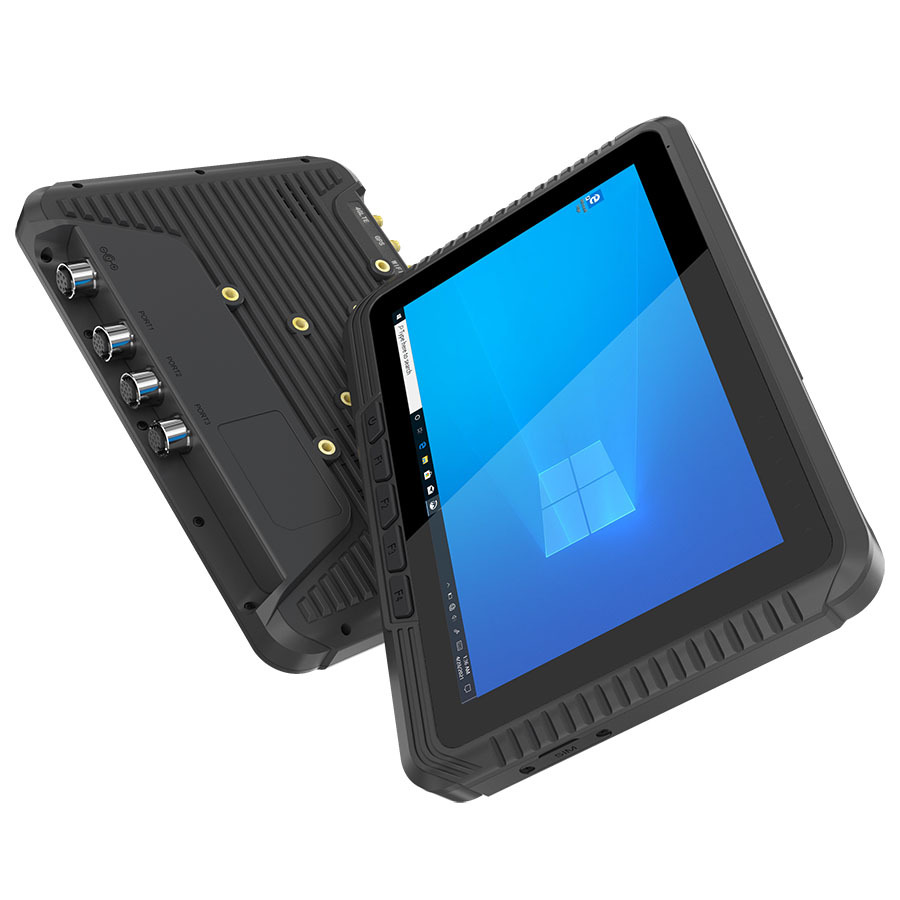

Kcosit K180J Vehicle-Mounted Tablet PC Windows 10 8" Intel JASPER LAKE N5100 CAN BUS Protocol  RS232 RJ45 5.8G WiFi Wide Voltage Rugged Tablets

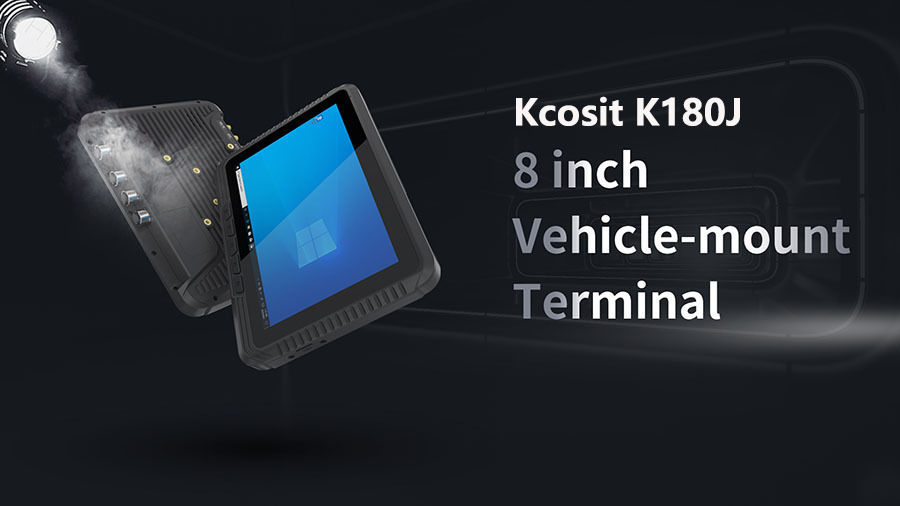

 8 inch Vehicle-mount Terminal
Standard (With GPS+ WiFi+ No 4G LTE+No Battery+NO Camera)

  • Waterproof Grade:  IP65
  • Operation System :  Windows 10 Home
  • RAM+ROM: 4GB RAM+64GB ROM
  • CPU: Intel JASPER LAKE N5100   Max 2.8GHz
  • Display Resolution : 8 inch 16:10   800*1280 IPS
  • Built-in    2.4G+5.8G WiFi ,GPS Module, Bluetooth Module

  • Battery Capacity: 1000mAH Replaceable  (Optional)
  • Sim Card Quantity:  Single SIM Card (Optional)
  • Band Mode :(Optional)
  • LTE FDD: B1/B3/B5/B7/B8/B20
    LTE-TDD B40
    WCDMA: B1/B5/B8
    GSM: 900/1800
  •   Kcosit K180J
    Optional Functions    		4G LTE
    1000mAh Battery
    NFC
    PORT1 (M12-12) (optional) 1000M network interface,
    Standard 8 pin Ethernet signal (100M/1000M high-speed Ethernet)= Optional : ADD RJ45 And Cable
    PORT2 (M12-12) (optional)
    RS232 *1+RS232/RS485 *1,
    9PIN DB9 full function serial port RS232;
    3PIN data transmission RS485/3PIN data transmission RS232= Optional : ADD RS232 And Cable
    PORT3 (M12-12) (optional)
    USB 2.0 *2+CAN/CVBS *1,
    USB2.0 standard interface *2; Optional CAN or CVBS *1 for customer debugging= Optional : ADD Can Bus N Cable
     Cigarette lighter adapter
    19V3.42A Cigarette Lighter Adapter
     Power adapter=Optional : ADD Power Adapter
    19V3.42A  DC φ5.5 power adapter
     Power adapter cable
    Transfer 8 pin power lines to 8 loose wires (1.2M) to meet the customer's self wiring requirements.
     Vesa         RAM
    75mm*75mm    38*30mm
    Function adapter cable,Multi function adapter selection,12PIN to 2-way USB 1-way CAN
    Function adapter cable,Multi function adapter selection,
    12PIN to full function RS232 power line + serial communication 485
    Function adapter cable,Multi function adapter selection,
    12PIN to 1000M RJ45
    Function adapter cable,Multi function adapter selection,
    12PIN to 12 loose wires 1.2m to meet the customer's demand for self connection
    Wide voltage module=Optional : ADD  Wide Voltage
    Wide voltage demand when the power supply is unstable,
    External 9V~36V wide voltage DC module, 9~36V wide voltage input, 12V ± 0.5V constant voltage output to equipment



Standard Packge Include:

1. 1X 8 inch Tablet
2. 1X WIFI Rod Antenna
3. 1X GPS Rod Antenna















Tech Spec
Product Form8 inch Vehicle-mount Terminal
Dimension218.1*154.5*23.0 mm
Weight620g
Product ColorBlack
CPUIntel JASPER LAKE N5100   Max 2.8GHz
GPUIntel® HD Graphics Gen 11 LP
MemoryRAM 4GB  LPDDR3                             ROM  64GB    EMMC
Operating SystemWindows 10 Home   Optional:  Windows 10 IOT   /Windows10 Pro

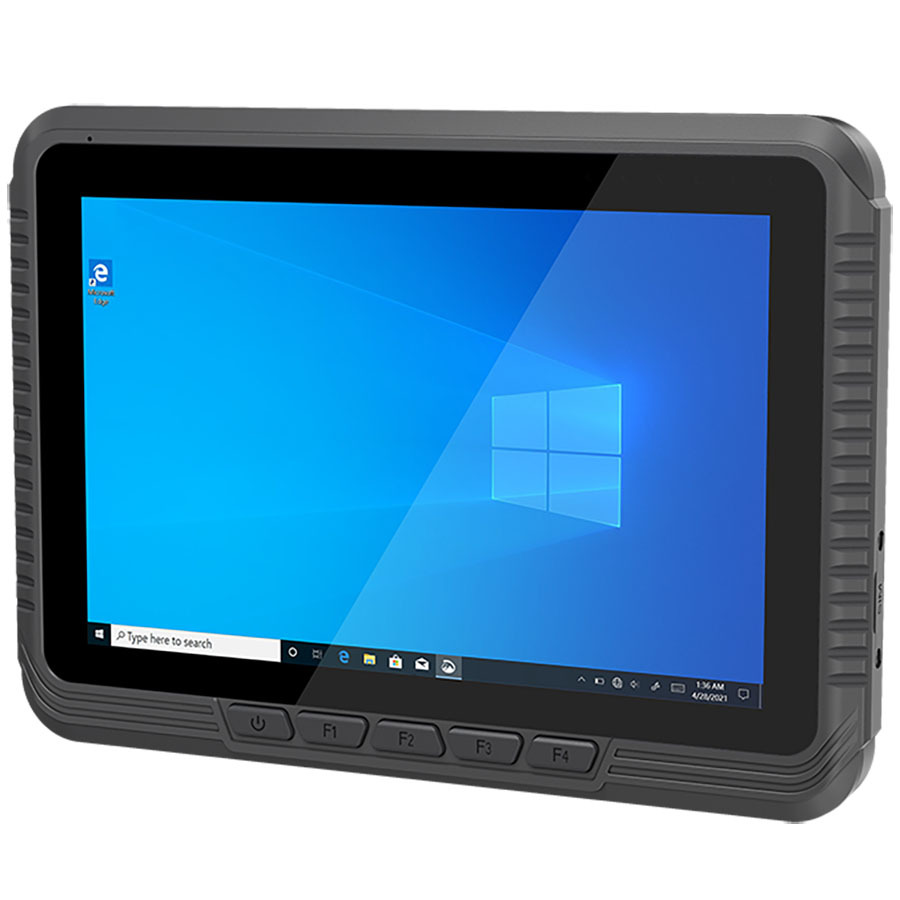

DisplayType: LCD
Size: 10.1 inch 16:10
Resolution:  800*1280 IPS
Brightness: 700cd/㎡
Touch Pannel5-point tempered glass capacitive screen G+G, hardness 7H
ButtonsPower *1
Volume Adjustment Key (+) *1 (F1 Key)
Volume Adjustment Key (-) *1 (F2 Key)
Customizable *1 (F3 Key)
Customizable *1 (F3 Key)
Indicator Light1. Power indicator (blue when starting)
2. Charging lamp (red when DC is powered on)
3. Full charge indicator light (green when full with battery, not on when no battery)
Speaker1.5W *1, Single horn (Maximum 2W)
MicrophoneSingle MIC
RTCBuilt in 2032 RTC dry battery
Battery (Tablet)Optional,
Built in polymer lithium ion battery
1000mAh/7.4V
30 mins (50% volume sounds, 200 nits brightness, 1080P HD video display by default),
It is used to support normal power off and protect user data.

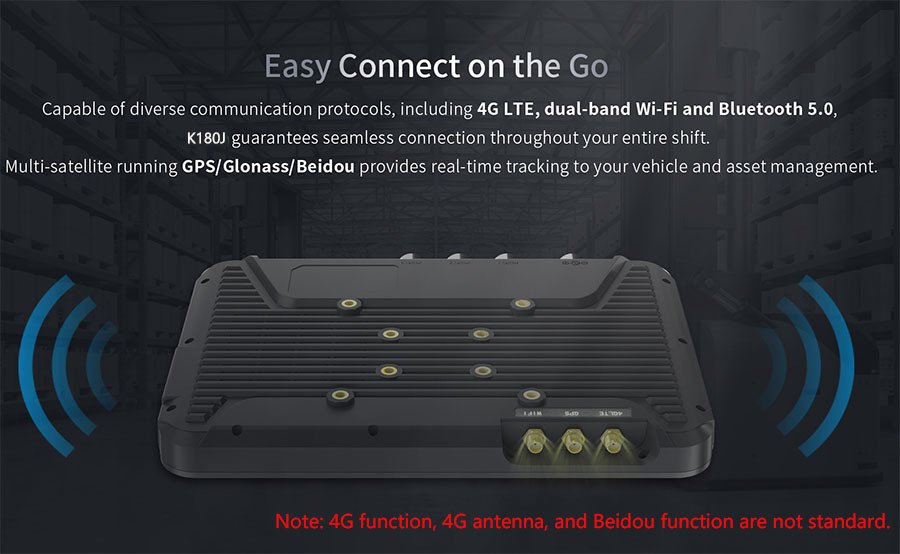

WIFIWIFI 802.11(a/b/g/n/ac)  Dual frequency 2.4G+5.8G
BluetoothBT5.0 (BLE) class1  Transmited distance: 10m
4GOptional,
South America or North America module,
LTE FDD: B1/B3/B5/B7/B8/B20
LTE-TDD B40
WCDMA: B1/B5/B8
GSM: 900/1800
GPSBuilt in, Ublox 7 supports GPS, GLONASS
Optional, Huada Beidou/Ublox M8Q
NFCOptional, NXP300

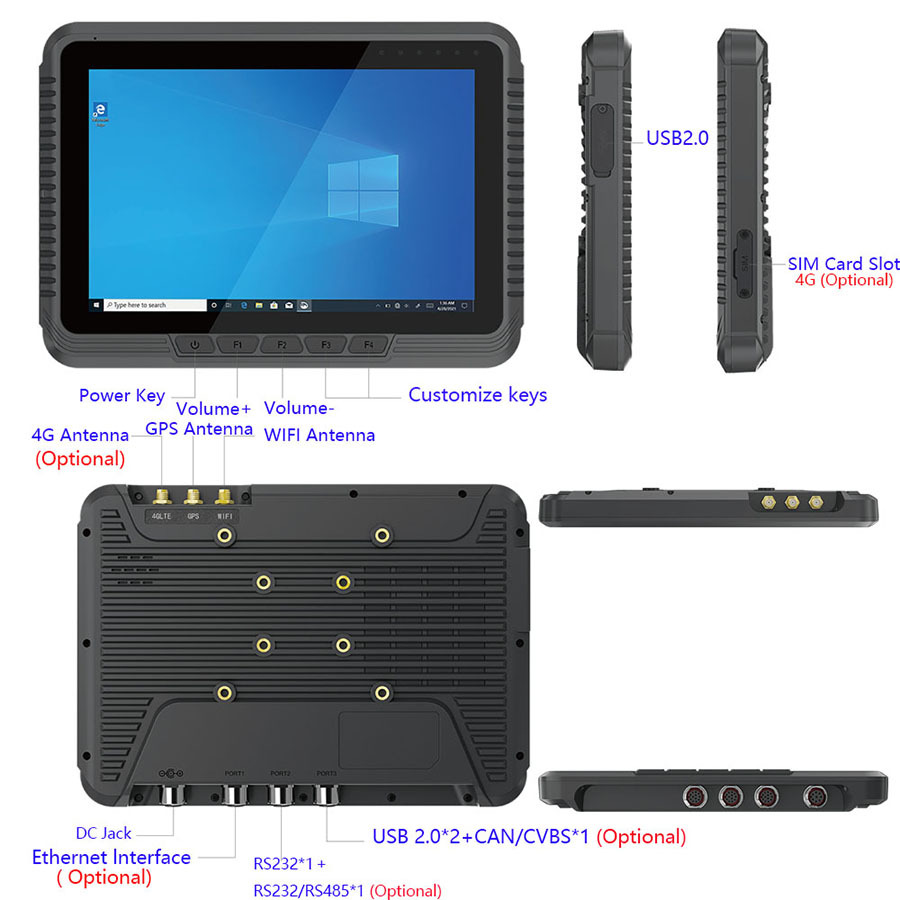

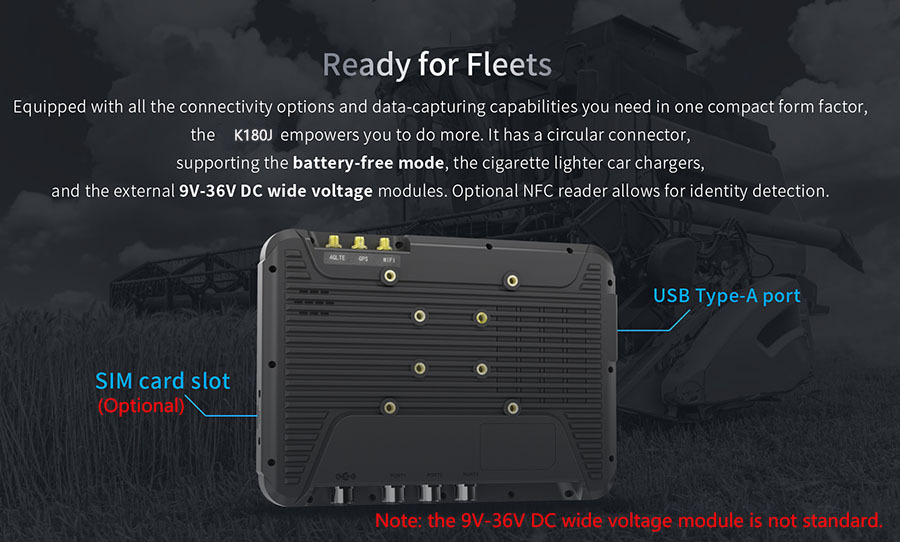

InterfaceSIM card slot (optional)
Nano-SIM *1
Standard USB-A port / Data transmission
USB 3.0 *1, USB A port, HOST data transmission
  Power interface
DC input (Input: 11~24V),
Compatible: 2-way GPIO customized for customer customization

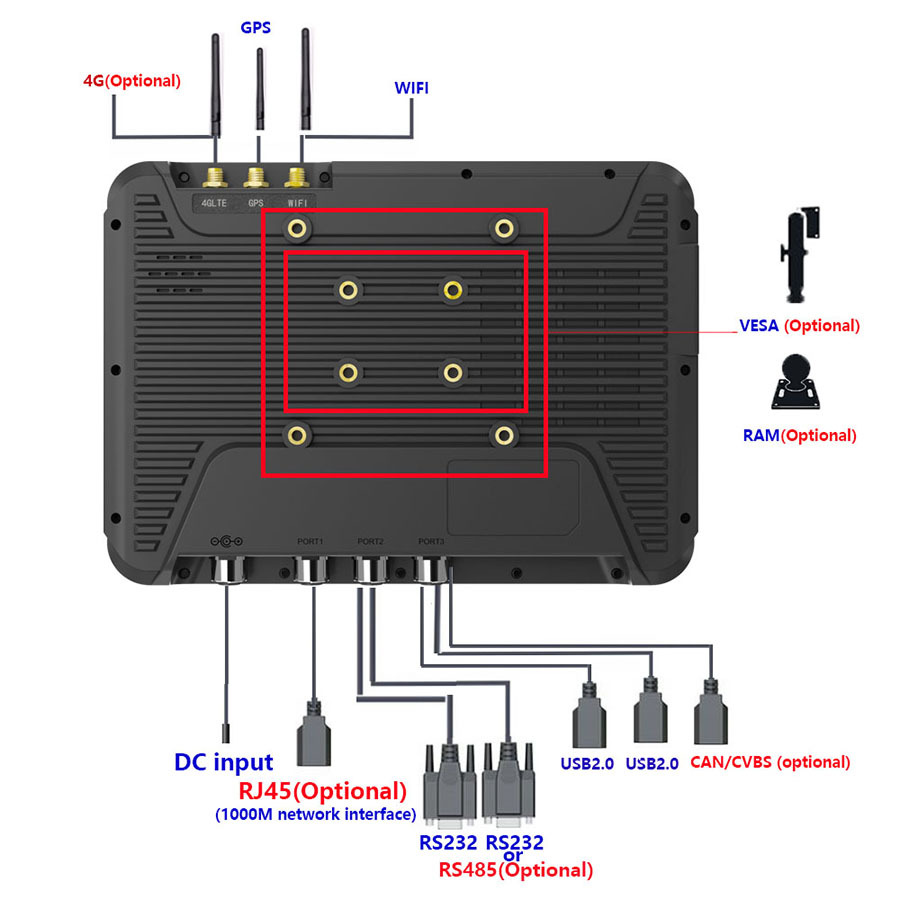

PORT1 (M12-12) (optional)
1000M network interface,
Standard 8 pin Ethernet signal (100M/1000M high-speed Ethernet)
PORT2 (M12-12)(optional)
RS232 *1+RS232/RS485 *1,
9PIN DB9 full function serial port RS232; 3PIN data transmission RS485/3PIN data transmission RS232
PORT3 (M12-12)(optional)
USB 2.0 *2+CAN/CVBS *1,
USB2.0 standard interface *2; Optional CAN or CVBS *1 for customer debugging
Rugged FeaturesWorking temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 70 °C
±8kV contact discharge, ±15kV air discharge
Humidity: 95% Non-Condensing
CertificationIP65
CE
CCC
FCC
Standard AccessoriesWIFI rod antenna
2.4~2.5GHZ /5.15~5.85GHz ,2±0.5 dBi
GPS rod antenna
Power adapter cable
8 PIN aviation plug φ 5.5 The power supply port (suitable for cigarette lighter car charger, etc.) is 30CM, which is used in the off vehicle use environment to meet the customer's 220V input.
Optional Accessories4G rod antenna
4G rod antenna shall be used together with 4G module function,
Frequency Rang:824~960/1710~2700MHz
Return Loss:-6dB or less
Frequency Rang:3.4~3.8/4.4~4.9GHz
Return Loss:-10dB or less Gain:2.0±0.2 dBi
Cigarette lighter adapter
19V3.42A Cigarette Lighter Adapter
Power adapter
19V3.42A  DC φ5.5 power adapter
Power adapter cable
Transfer 8 pin power lines to 8 loose wires (1.2M) to meet the customer's self wiring requirements.
Vesa
75mm*75mm
RAM
38*30mm
Function adapter cable
Multi function adapter selection,
12PIN to 2-way USB 1-way CAN
Function adapter cable
Multi function adapter selection,
12PIN to full function RS232 power line + serial communication 485
Function adapter cable
Multi function adapter selection,
12PIN to full function RS232 power line + serial communication 232
Function adapter cable
Multi function adapter selection,
12PIN to 1000M RJ45
Function adapter cable
Multi function adapter selection,
12PIN to 12 loose wires 1.2m to meet the customer's demand for self connection
Wide voltage module
Wide voltage demand when the power supply is unstable,
External 9V~36V wide voltage DC module, 9~36V wide voltage input, 12V ± 0.5V constant voltage output to equipment
GPS vehicle mushroom antenna
Active GPS mushroom antenna, line length 3M, 20dB ± 2dB
