Kcosit K7G Industrial Rugged Windows 10 Pro Tablet PC 10.1" 8GB RAM RS232 USB 3.0

Kcosit K7G Industrial Rugged Windows 10 Pro Tablet PC Win10 Intel N4120 10.1" HD 8GB RAM 128GB WiFi RS232 USB 3.0

Standard Version (Without GPS ,Without 4G  LTE)

• Waterproof Grade:  IP67 Waterproof Level Shockproof and Dustproof

• Operation System: Windows 10 Pro

• CPU: Intel Gemini lake N4120 (Quad-Core)

• Display Size: 10.1"

• Display Resolution : 800×1280 (IPS+HD+300NITS)  (Standard Version)
                                    1920×1200 (IPS+FHD+1000Nit)  (Optional, MOQ=500pcs)

• RAM+ROM: 8GB RAM+128GB ROM

• Camera: Dual Camera  5.0MP Back+ 2.0MP Front

• Battery Capacity: 5000mAH/7.6V

• Built-in: WiFi WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band

Optional Function

• QR 1D/2D Barcode Scanner
• NFC
• Fingerprinter:
• 4G LTE Module Band Mode 2G Gsm 900/1800MHZ ,  3G WCDMA 900/2100MHZ, 4G lte B1,B3,B7,B20

• RFID UHF band

• GPS Module    BD2/GPS/Glonass (Choose two of the three)

Standard Pacakge Include:

1. 1X Tablet
2. 1X Battery 5000mAh

3. 1X AC Charger(US or EU )

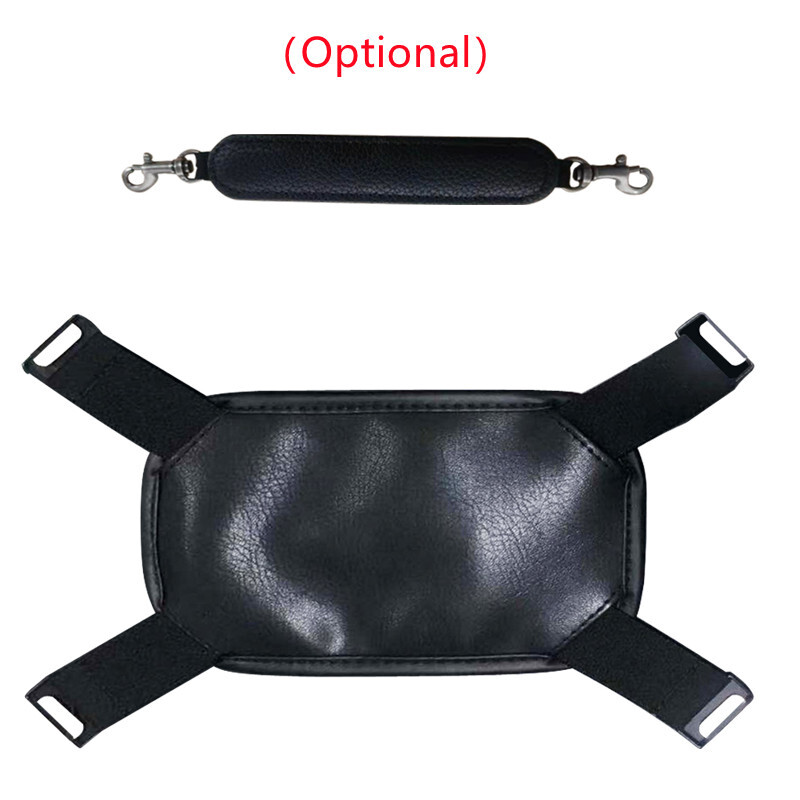

4. 1X Hand Strap (optional)
5. 1x Charger Dock (optional)



System Physical Standard Configuration:
Type		Details		Descriptions
Product Form		Form Factor		IP67 Rugged Tablet PC
		Dimensions		280×184×26.5mm
		Weight		1.15KG
LCD		Screen Size		10.1"
		Screen Resolution		800×1280 (IPS+HD+300NITS)  (Standard)
				1920×1200 (IPS+FHD+1000Nits)  (Optional, MOQ=500pcs)
TP		Touch Module		G+G Multi-Touch (10 Points)
Battery		Type		Rechargeable lithium polymer
		Capacity		5000mAh/7.6V
		Working Time		Over 5 hours (FHD local video display)
System Hardware Configuration:
Type		Details		Descriptions
CPU		Type		Intel Gemini lake N4120 (Quad-Core)
		Speed		1.1GHz ~ 2.6GHz (N4120)
GPU		Type		Intel UHD 600 Graphics
Memory		Capacity		8GB LPDDR4
Storage		eMMC		128GB
		SSD		Optional (Mini PCI-E slot)
Camera		Front		2M
		Rear		5M
Speaker		Built-in		8Ω/1W*2pcs with water proof
Micphone		Built-in		Yes
G-sensor		Built-in		Yes
Light-sensor		Built-in		Optional
Network Connections:
Type		Details		Descriptions
WIFI		WIFI Module: Intel AC3165		WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band
Bluetooth		BT Module: Intel AC3165		Bluetooth4.2
4G LTE		Optional		Optional (Mini PCI-E slot)
QR code Scanners		Standard		Optional
GPS		BD2/GPS/Glonass (Choose two of the three)		Optional
NFC		Optional		Optional
Fingerprinter		Optional		Optional
RFID		UHF band		Optional
Ethernet Network		RJ-45		1000Mbps Gigabit Lan
Interface Configuration:
Type		Details		Descriptions
Type-C		Type-C 3.1		×1pc
USB Interface		USB3.0		×2pcs
SD / TF Card reader		TF Card reader		×1pc (up to 512GB)
SIM  Card Slot		SIM Slot for 4G LTE		×1pc
Audio Jack		3.5mm standard headphone+Microphone		×1pc
HDMI		Micro HDMI 2.0		×1pc (Output 4K@60fps UHD video)
COM Port		DB9 (RS232)		×1pc
Button Switch:
Type		Details		Descriptions
Power		On/Off		×1pc
Volume		Down/UP		×1pc
HotKey		Hot Key for QR Scanner		×1pc
Forced outage		Power restart when push restart button		×1pc
Main Accessories:
Type		Details		Descriptions
Power adapter		DC 12V/3A		×1pc
User's Manual		User's Manual		×1pc
Handle Straps		Handle straps and hand clasping		Optional
Extension Docking		USB2.0; Power charging;  RJ45; RS232		Optional
Vehicle Bracket		USB2.0; Power charging;  RJ45; RS232		Optional
Software Configuration:
Type		Details		Descriptions
Power on Function		By Power Button or Auto Power on		Optional
Wake up on Lan		Wake up on Lan by RJ45		Yes
PXE		Preboot Execution Environment		Yes
Security		TPM2.0 (Hardware) contained		Yes
Operating System		Windows 10 Pro		Yes (Officoal Windows license is Optional)
Environment:
Temperature		Operation Temperature		-10oC ~ 55oC (1080p or 4K local video display)
		Storage Temperature		-20oC ~ 70oC  (Restore to Operation Temperature 2hr before use)
Humidity		Oprating Humidity		35% ~ 80% relative humidity, Non-condensing
		Storage Humidity		20% ~ 93% relative humidity, Non-condensing
Certification:
IP67		IP67 Certification		Yes
CE		CE-Red		Yes
MIL-STD-810G		Match the military standard of USA		Yes
