Kcosit
G601 Pocket Mini Tablet PC Android 9.0 IP68 Waterproof 6 inch Qualcomm Wireless Charge GNSS RTK Receiver GPS GALILEO Mapping
- Bundle
-
- Pro Ver 4GB RAM 64GB
- Basic 3GB RAM 32GB
- optional functions
-
- Standard Version
- ADD Wireless Charge
- ADD 2D Scanner
- ADD RTK GPS
Item specifics
Portable G601 Pocket Mini Tablet PC Android 9.0 IP68 Waterproof 6 inch Qualcomm Wireless Charge GNSS RTK 2D Barcode Scanner PDA
- Basic Version + Pro Version Spec (Standard Version NO 2D Scanner +NO Wireless Charge)
Waterproof Grade: IP68 Waterproof Level Shockproof and Dustproof
Operation System: Android 9.0
CPU:Basic Version (Qualcomm SDM450 Octa-Core Processor, 8*1.8GHz)
Pro Version (Qualcomm SDM632 4*A73+4*A53 Octa-Core Processor, 8*1.8GHz)
Display Resolution: 6" HD (1440 x 720), Sunlight Readable 500 Nits
Basic Version RAM+ROM:=3GB RAM+32GB eMMC
Pro Version RAM+ROM:=4GB RAM+64GB eMMC
Front Camera + Back Camera: Front 5.0MP+Back 13.0MP
Battery Capacity: 5000mAH
Built-in: 4G LTE,WiFi ,GPS Module, Bluetooth Module

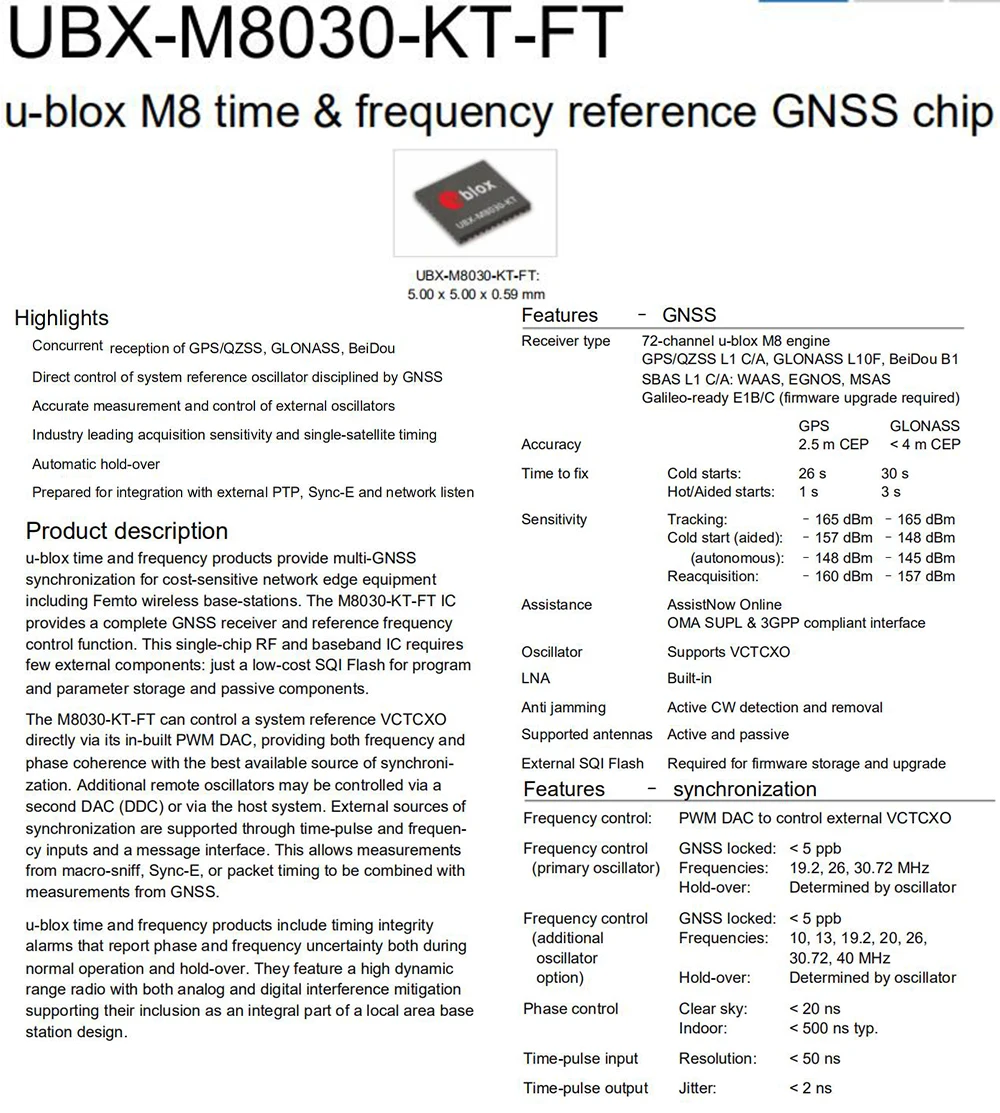

GNSS: GPS/GLONASS/Beidou (Ublox M8 Chip Precision About 2~3m)
Dual Sim Dual Standby: Support Phone Call
Band Mode:
2G: GSM:850/900/1800/1900
EVDO:BC0
3G: WCDMA: B1/B2/B5/B8
TD-SCDMA: B34/B39
4G:TDD-LTE: Band38/Band39/Band40/Band41
FDD-LTE: Band1/Band2/Band3/band4/band5/Band7/band8/band17/band20/band28
Optional Functions
2D Barcode Scanner

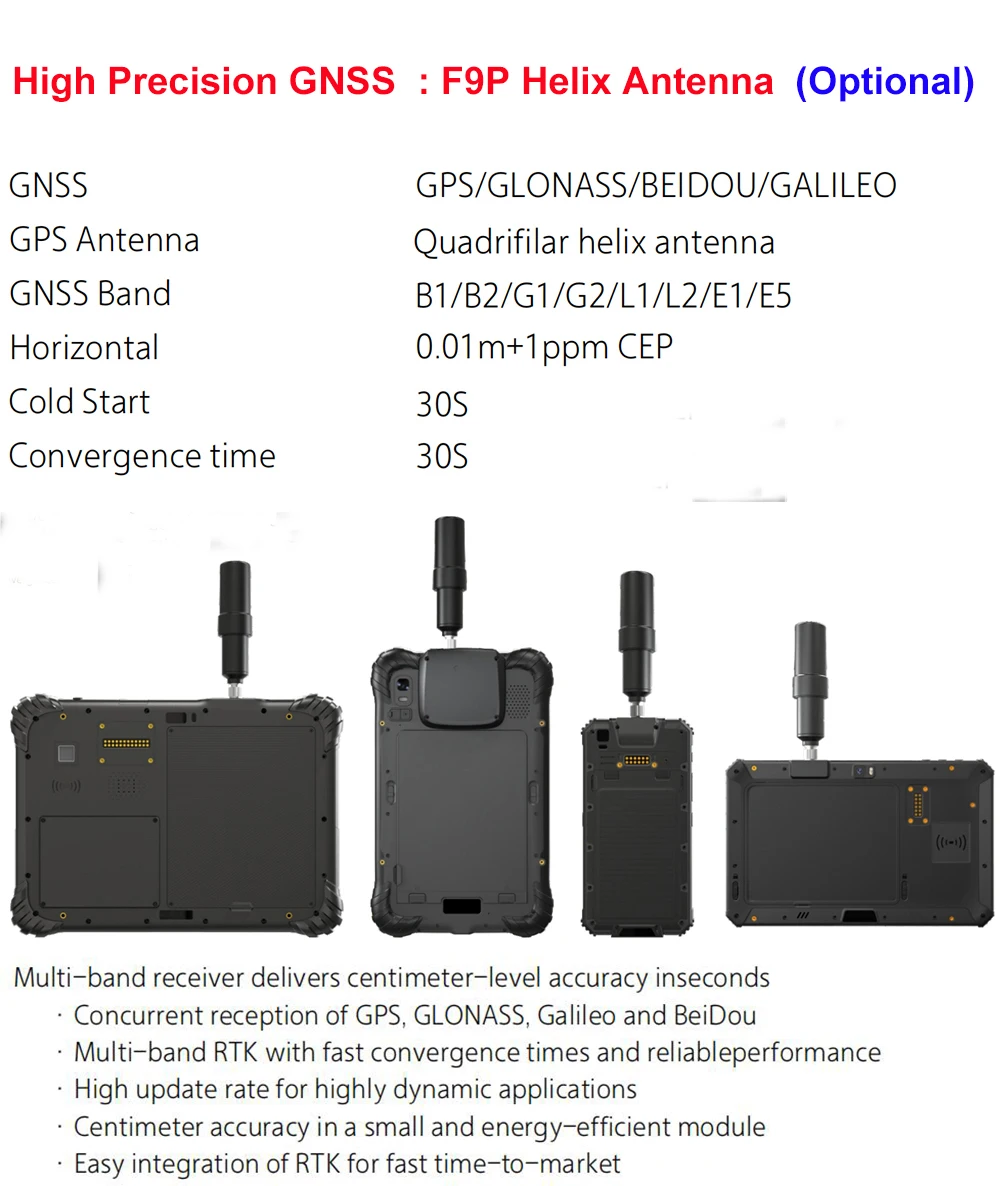

High Precision GNSS Centimeter Level : F9P RTK( choose optional : ADD RTK GPS)
Wireless Charge Function
Standard Pacakge Include: (standard without Charger Docking)
1. 1X Tablet

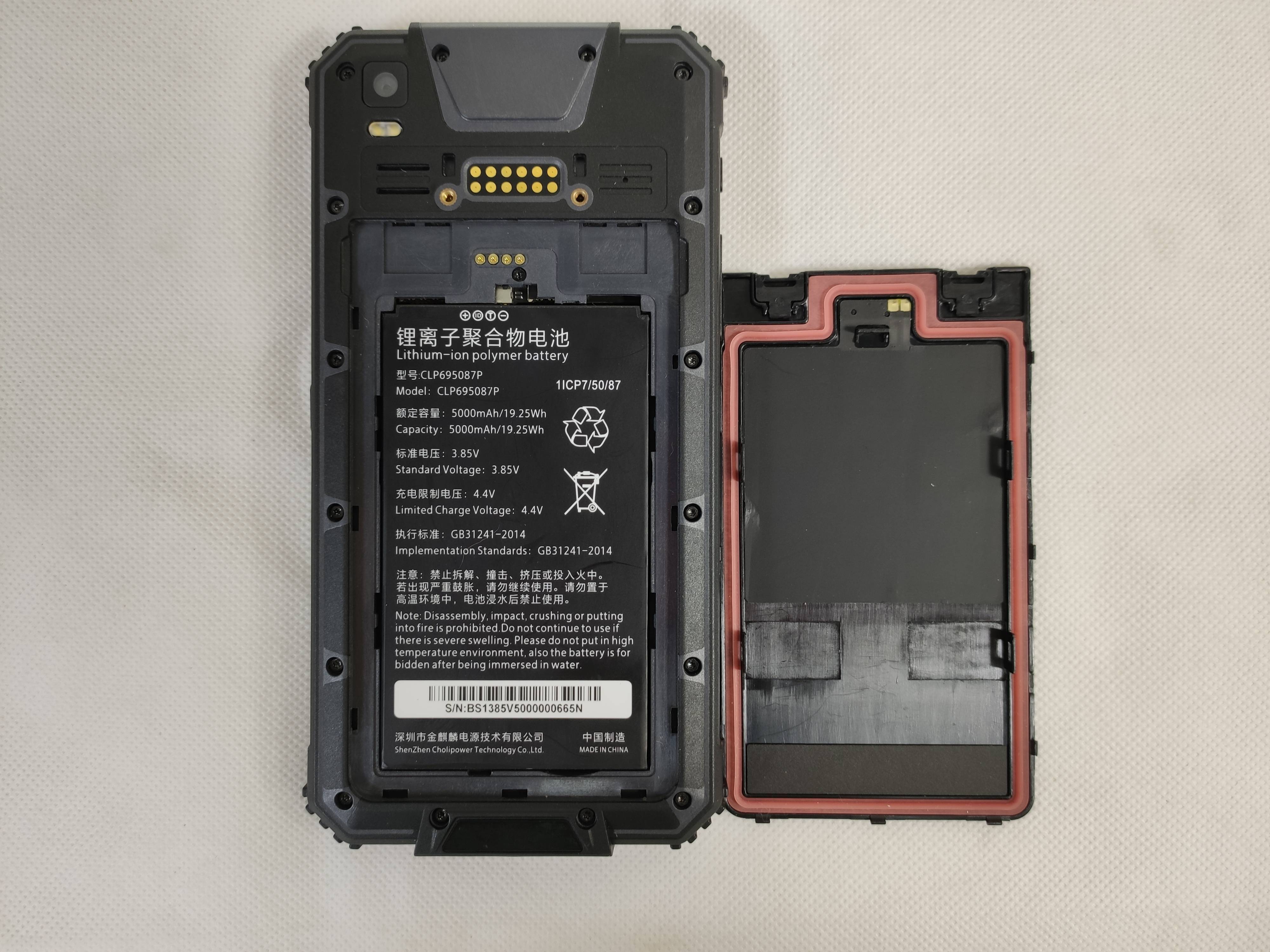

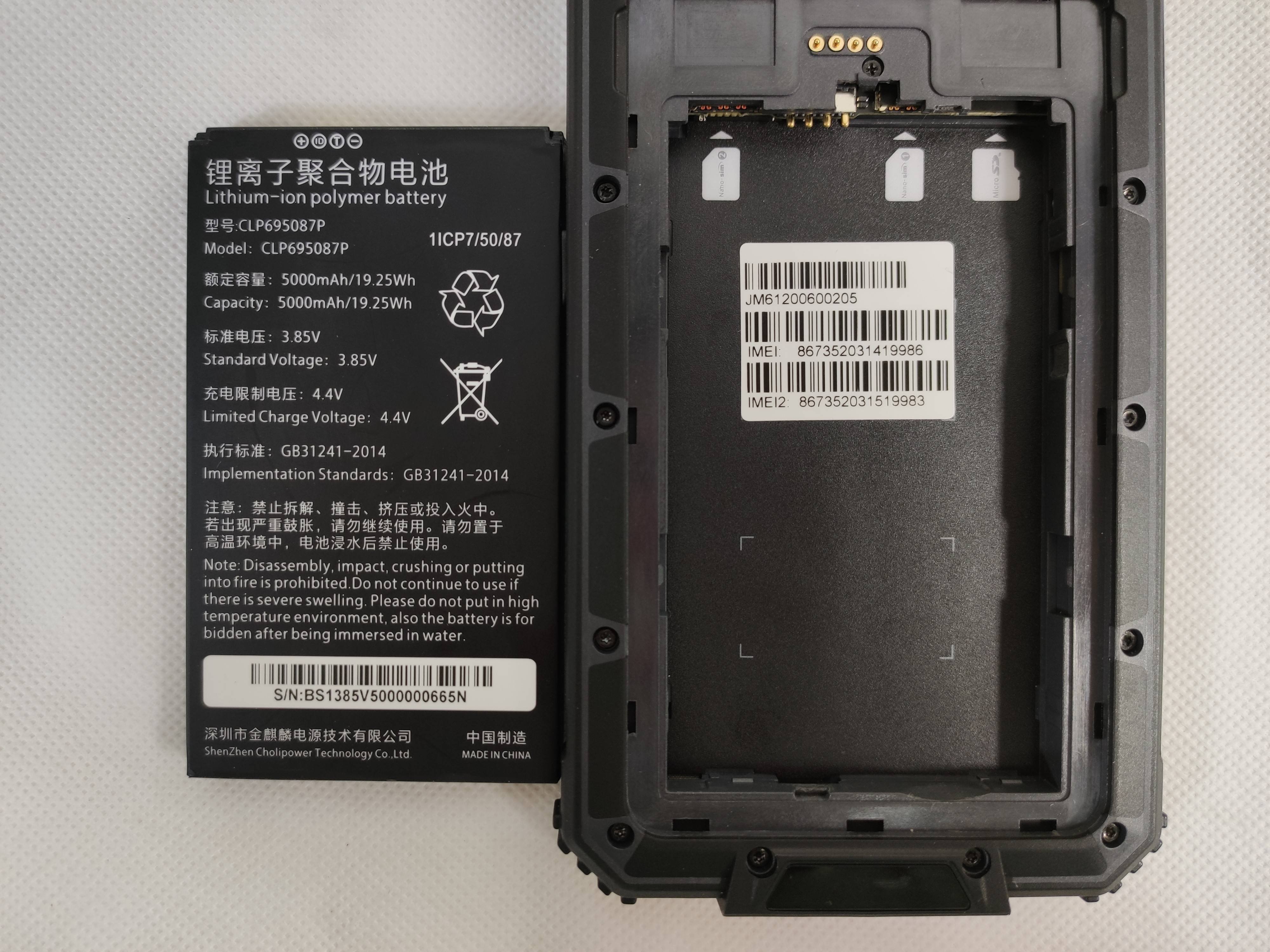

2. 1X Battery 5000mAh
3. 1X Charger(US or EU UK)





Category | Detail | Remarks |
Model No | G601 Pro Version | G601 Basic Version |
LCD | 6" 1440*720 500nits sunlight visible | 6" 1440*720 500nits sunlight visible |
Touch panel | Capacitive | Capacitive |
Size | 82*162*14mm | 82*162*14mm |
Weight | 200g | 200g |
Drop Test | 1.2m | 1.2m |
Water proof | IP68-1.2m for 1hour | IP68-1.2m for 1hour |
Work Temp | -20℃~60℃ | -20℃~60℃ |
Storage Temp | -30℃~70℃ | -30℃~70℃ |
CPU | Qualcomm SDM632 4* Kryo 250 Gold + 4*Kryo 250 Silver, Big Cores | Qualcomm SDM450 8*1.8GHz |
OS | Android 9.0 | Android 9.0 |
RAM | 4GB | 3GB |
Flash | 64GB | 32GB |
Rear Camera | 13.0MP | 13.0MP |
Front Camera | 5.0MP | 5.0MP |
Flash Light | Y | Y |
WIFI | 802.11 a/b/g/n/ac, 2.4GHz/5GHz | 802.11 a/b/g/n/ac, 2.4GHz/5GHz |
Network | GSM:850/900/1800/1900 EVDO:BC0 WCDMA: B1/B2/B5/B8 TDD-LTE: Band38/Band39/Band40/Band41 FDD-LTE: Band1/Band2/Band3/Band4/Band5/ Band7/Band8/Band17/Band20/Band28 | GSM:850/900/1800/1900 EVDO:BC0 WCDMA: B1/B2/B5/B8 TDD-LTE: Band38/Band39/Band40/Band41 FDD-LTE: Band1/Band2/Band3/Band4/Band5/ Band7/Band8/Band17/Band20/Band28 |
SIM Card | Dual sim & Dual standby | Dual sim & Dual standby |
T Card | Y | Y |
Bluetooth | BT4.2 | BT4.2 |
USB | Type C USB3.0 | Type C USB3.0 |
Baterry | 5000mAh - Low temperature battery | 5000mAh - Low temperature battery |
Fash Charge | 5V2A/QC3.0 | 5V2A/QC3.0 |
Wireless Charge | (Optional) | (Optional) |
NFC | Y | Y |
2D Barcode Scanner (Optional) | Image Sensor 640x480 CMOS Illumination Red Light LED625±10nm Reading system 2D (PDF417,QR Code (QR1/2, Micro),Data Matrix (ECC200, ECC000, 050, 080, 100, 140) 1D (Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14,RSS-Limited,RSS-Exp) | Image Sensor 640x480 CMOS Illumination Red Light LED625±10nm Reading system 2D (PDF417,QR Code (QR1/2, Micro),Data Matrix (ECC200, ECC000, 050, 080, 100, 140) 1D (Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14,RSS-Limited,RSS-Exp) |
Fingerprint | (Optional) | (Optional) |
G Sensor | Y | Y |
Gyroscope | Y | Y |
Light Sensor | Y | Y |
E Compass | Y | Y |
GNSS | GPS/GLONASS/Beidou (Ublox M8 Chip Precision About 2~3m) | GPS/GLONASS/Beidou (Ublox M8 Chip Precision About 2~3m) |
High Precision GNSS (Optional) | F9P RTK | F9P RTK |
GPS Antenna | Patch Antenna -Compatible PIFA Antenna | Patch Antenna -Compatible PIFA Antenna |
External GPS Antenna | N | N |
Extended Interface | USB, UART, GPIO,VBAT,VBUS | USB, UART, GPIO,VBAT,VBUS |
Keypad | Power,Volume up/down, 2* Function Buttons | Power,Volume up/down, 2* Function Buttons |
Accessories | Strap, UHF, Handle - extra fee if needed | Strap, UHF, Handle - extra fee if needed |
