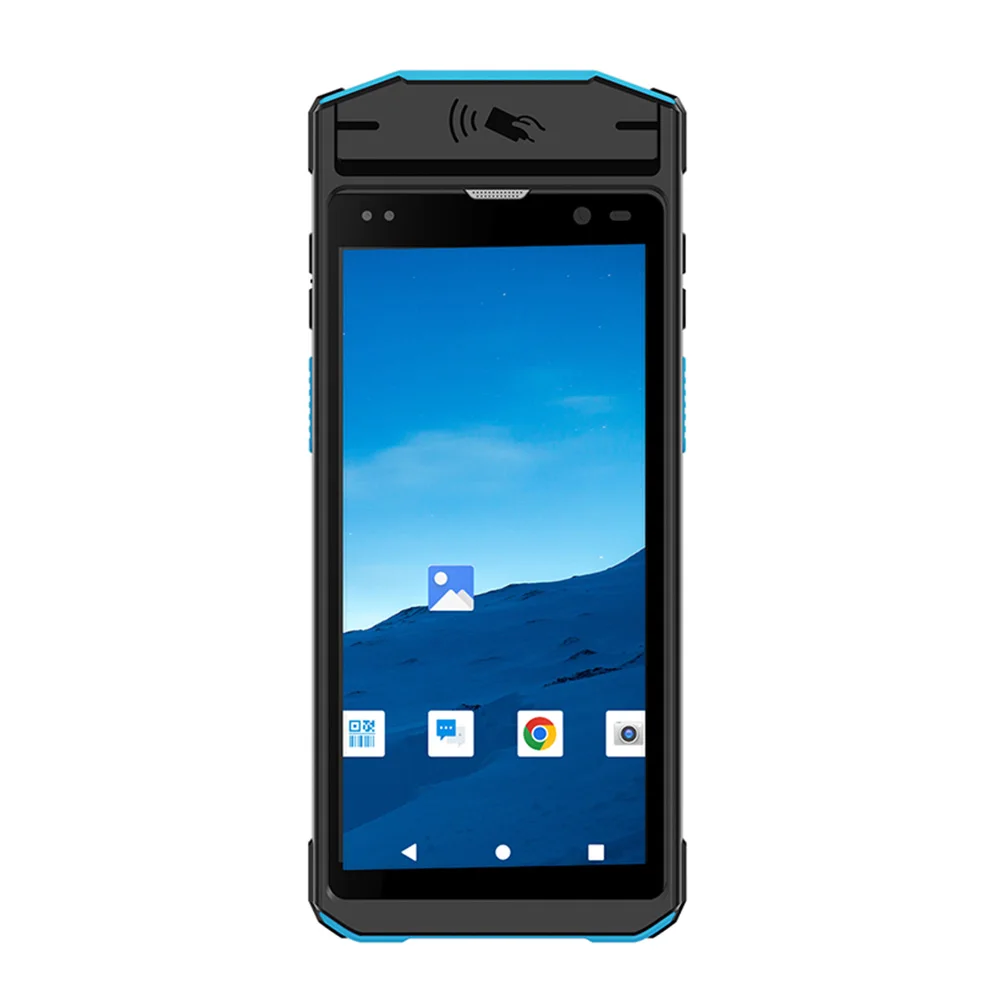

Kcosit K58 Industrial Rugged PDA with Fingeprint Reader Mobile Computer Android 13.0 Barcode Scanner

PDA with Fingerprint Scanner: Comprehensive Overview

Dimensions and Design

The PDA with Fingerprint Scanner boasts compact dimensions of 171.80 x 75.80 x (20.50 - 21.65) mm, making it highly portable for various applications. Weighing approximately 345g, its lightweight design enhances usability in demanding environments, making it a top choice for a Rugged PDA with Fingerprint functionality.

Powerful Performance

Equipped with a Qualcomm QCM6225 Cortex A-53 octa-core processor, this device operates at speeds of 2.4GHz or 2.7GHz for 5G versions, ensuring smooth performance for multitasking. The latest Android 13.0 operating system provides an intuitive user experience, ideal for a Mobile PDA with Fingerprint needs.

Display and Connectivity

Featuring a vibrant 5.5-inch IPS high-definition screen with a resolution of 720 x 1440, this handheld device ensures clear visibility in various lighting conditions. It supports all network connectivity options, including 2G, 3G, and 4G, and incorporates Bluetooth 5.0 and Wi-Fi 6 capabilities, perfect for seamless data transfer and communication.

Enhanced Security Features

The PDA with Biometric Authentication integrates a Ministry of Public Security fingerprint module, allowing for secure access and enhanced data protection. This feature is crucial for industries that require Fingerprint Recognition PDA capabilities to ensure user identity verification.

Standard Version (No Scanner NO NFC)
* IP67 Waterproof Handheld Terminal
* 5.5 inch  720*1440
* Qualcomm QCM6225
* RAM 4GB+ROM 64GB
* Battery 5000MAH
* Android 13.0 OS

Optional Functions
1. 2D  Barcode Scanner
2. NFC
3. UHF RFID
4. Fingerprint Reader Module



Standard Pacakge Include

1. 1 x PDA
2. 1 x Battery (5000 mAH)
3. 1x Charger

Long-lasting Battery Life

Powered by a 5000mAh high-performance battery, this device supports long operating hours, essential for fieldwork in various industries. Its IP67 rating ensures water and dust resistance, enhancing durability in harsh environments.

Versatile Functionalities

With options for UHF RFID Reader, NFC, and low-frequency RFID modules, this device can cater to diverse applications such as inventory management and secure access control. Additionally, the optional Unisoc K2 2D Scanner Module (or Honeywell 5703) enhances its scanning capabilities, making it a robust Handheld PDA with Fingerprint solution.

category		parameter
Dimension		171.80*75.80*(20.50 -21.65)mm
CPU		Qualcomm QCM6225 Cortex A-53,Octa-core 2.4GHz or 5G version Octa core 2.7GHz
operating system		Android 13.0
weight		~345g (specific weight depends on functional configuration)
Savings memory		4GB+64GB
display screen		5.5 inch, 720 * 1440 resolution, capacitance IPS high-definition screen, Multi-touch
network		2G, 3G, 4G (all network connectivity)
WIFI		IEEE 802.11 a/b/g/n 2.4G&5G  Dual frequency Support WIFI6
Bluetooth		BT5.0
Camera		Rear 16 million pixels, autofocus flash  (Optional Front Camera 8.0MP)
GPS		GPS/ Beidou /Glonass/Galileo
prompt		Three color breathing light, vibration
sensor		Gyroscope sensor, distance sensor
battery		5V/3A,3.8V/5000mAh High performance lithium polymer battery (detachable)
input		microphone
sound		2W speaker and earpiece
interface		TYPE-C USB 2.0
memory card		TF card x1 (expandable up to 128GB)
SIM card		Nano SIM card x2
key	ON/OFF	Switch power button
	Right SCAN key	Right barcode scanning shortcut key
	Left SCAN key	Left barcode scanning shortcut key
	Volume button	Volume+, Volume-
	PTT	custom key
optional function	Scanning head	Unisoc K2 2D Scanner Module  (Optional Honeywell 5703)
	PSAM module	Protocol/ISO/IEC 7816-1/2/3/4, (four card slots, optional)
	ID card module	13.56MHz frequency, card reading distance 1-3CM
	fingerprint module	Ministry of Public Security fingerprint, supporting SPI interface
	NFC module	13.56MHz frequency, card reading distance 1-5CM
	UHF RFID	≥ 1 meter, using a 2dBi ceramic antenna (reading distance depends on the size of the electronic tag), reading speed ≥ 50 tags/s
	Low frequency RFID	Frequency: 25K or 134.2K, card reading distance: between 1-30mm, depending on the selected module power and antenna size
	Support for seat charging	Contact 4PIN point base charging, defined as GND/5V
Usage environment	operation temperature	-10℃ to 50℃
	storage temperature	-40℃ to 70℃
	ambient humidity	5% RH-95% RH (without condensation)
	electrostatic protection	± 8KV air discharge, ± 4KV contact discharge
authentication data		3C certification, industrial grade certification IP67, drop certification, etc
Support for development languages		Android,uniapp,js,Apicloud
Default accessories		Power adapter, USB data cable, strap, tempered film
