Rugged Android 12.0 5G Tablet with RJ45 RS232 10.1 Inch MT6833 8GB RAM 256GB ROM Fingerprint Scanner IP67 for Industrial Use

Product Overview

Rugged Android Tablet for Industrial Use

The rugged Android tablet is built to endure harsh environments, featuring IP67 waterproof, shockproof, and dustproof protection. With its 10.1-inch FHD display, it delivers clear visuals even in challenging conditions, thanks to a brightness of 500cd/m². The device runs on the latest Android 12.0 OS, powered by the MT6883 2.2GHz octa-core processor, making it ideal for logistics and field operations. The large 13800mAh battery ensures extended use without frequent charging.

Powerful Connectivity with 5G, 4G LTE, and Wi-Fi

Stay connected with built-in support for 3G, 4G, and 5G networks, allowing for smooth data transfers in any location. Dual-frequency Wi-Fi (2.4GHz/5GHz) and Bluetooth 5.0 add extra connectivity options. With GPS, GLONASS, and BeiDou integration, the tablet provides precise positioning, ideal for fleet management, warehouse operations, and outdoor tasks.

Advanced Features for Field Operations

Equipped with an 8MP front and 20MP rear camera with autofocus and flashlight, the tablet captures clear images even in low light. Optional 2D barcode scanning modules, such as Honeywell or Zebra, make it perfect for inventory tracking and asset management. The dual-SIM capability supports flexible connectivity, while NFC allows secure, fast data exchange

Durability and Customization for Industrial Applications

The rugged tablet meets industrial-grade standards, withstanding drops from 1.2 meters. It features a 13800mAh battery with fast charging, optional thermal imaging, RFID, and PSAM card encryption, making it suitable for hazardous material detection, security, and inspection tasks.

This rugged Android tablet is equipped with advanced connectivity options such as RJ45 Ethernet and RS232 serial ports, making it ideal for industrial automation, manufacturing, and logistics operations that require reliable wired connections. The addition of an optional fingerprint module enhances security, particularly useful in industries like public safety, warehousing, and law enforcement for secure access control and identity verification. These features ensure seamless integration into existing industrial systems, offering flexibility in data collection, asset management, and secure identification processes.

Standard Version ( Android 12.0  )

• Waterproof Grade:  IP67 Waterproof Level Shockproof and Dustproof

• Operation System: Android 12.0  OS

• CPU: MT6883    2.2GHz,

• DisplaySize: 10.1 "

• Display Resolution: 1920X1200 Pixel  IPS    Brightness: 500cd/㎡

• RAM+ROM: 8GB RAM+256GB ROM

• Camera: Front: 8.0MP    Rear: 20MP auto-facus with flashlight

• Battery Capacity: 13800mAH

• Built-in: 3G,4G,5G,Wifi ,GPS Module, Bluetooth Module
  2G:GSM B2/3/5/8
  3G:WCDMA B1/2/4/5/8
         CDMA 1X EVDO BC0/BC1
  4G:FDD-LTE B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28a&b/66
          TDD-LTE B34/38/39/40/41
  5G:N1/3/5/7/8/20/28/38/40/41/77/78/79

Standard Pacakge Include:

1. 1X Tablet
2. 1X Battery 13800mAh (Removable)

3. 1X Type-C  Charger (US or EU )

system	Android 12.0
CPU	MTK6833 octa-core 2.2GHz  5G	optional: RK3588S, Windows Intel 12 th
RAM/ROM	8GB RAM+256GB ROM
sizes	321.5*195*19.5mm
LCD	10.1inch 1200*1920 FHD 500nit	optional:1000nit
touchscreens	10-point capacitive touch
camera	Front 8M / Rear 20M	Front camera chip: IMX219; Rear camera chip: IMX214
batteries	13800mAh(4.35V)gel polymer	18W fast charge
	DC charging head 3.5*1.35mm, 5V 3A DC input	Support bottom seat charger, bottom magnetic charging
band	2G:GSM B2/3/5/8 3G:WCDMA B1/2/4/5/8        CDMA 1X EVDO BC0/BC1 4G:FDD-LTE B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28a&b/66         TDD-LTE B34/38/39/40/41                                                                                                            5G:N1/3/5/7/8/20/28/38/40/41/77/78/79
GPS	support GPS+GLONASS+Galileo+BeiDou+AGPS	built-in antenna
wifi	IEEE 802.11 ac/a/b/g/n 2.4/5GHz dual frequency WIFI,	optional: WiFi6
Bluetooth	Bluetooth 5.0

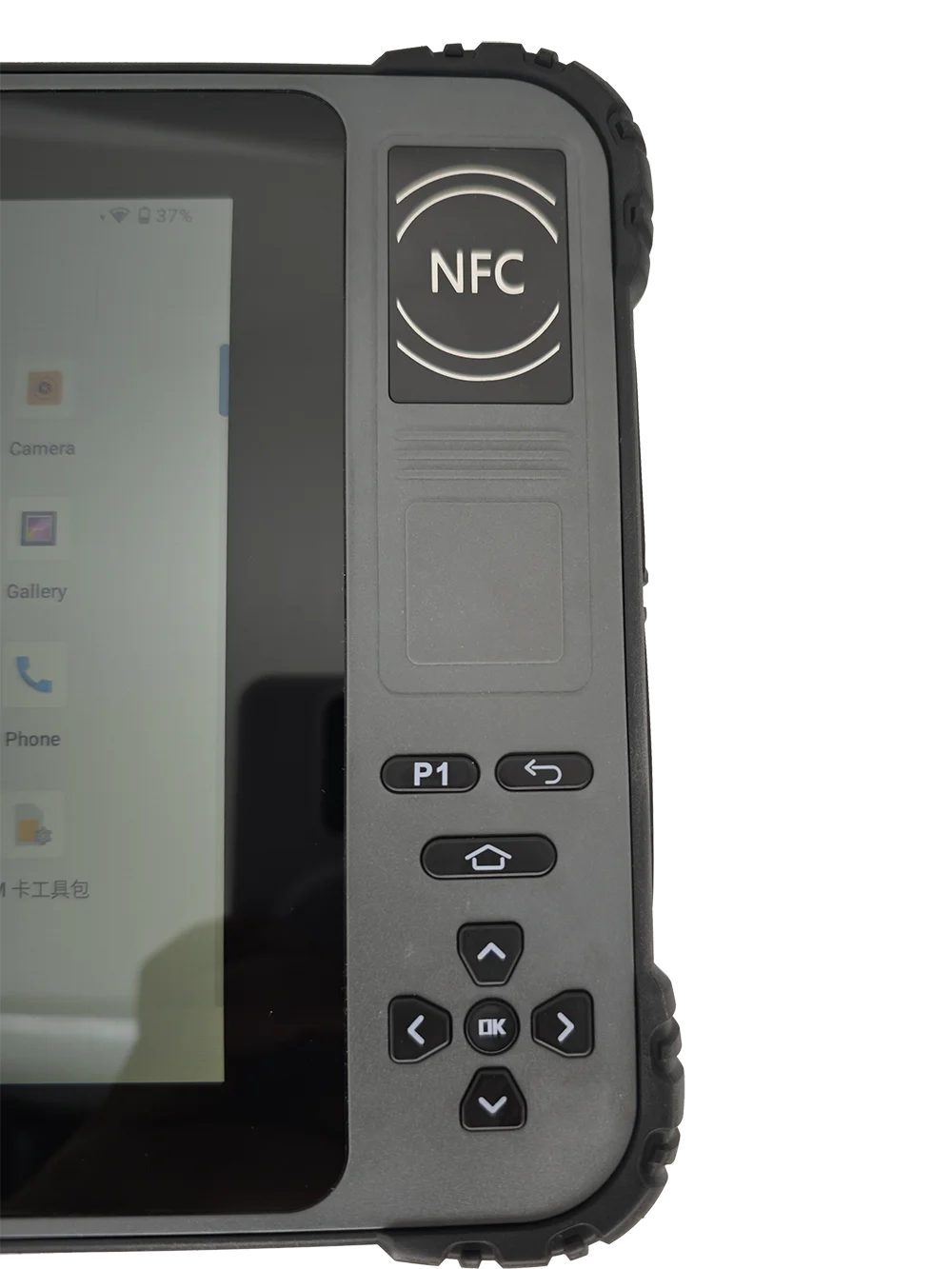

NFC	support ISO18092, ISO14443 A/B, and ISO15693Protocol, can read the second generation ID card information, support ID card frequency bias, read and write mode, card simulation mode and point-to-point mode, does not support payment	microchip: PN557
horn	8Ω,2W,Dual-speaker dual-channel	Maximum 3W Dual Speaker Dual Channel
SIM Card /TF Card	NanoSIM+NanoSIM/NanoSIM+TF(Side insertion triple option)	Support hot-swapping
transducers	3DAccelerated gravity Electronic compass (geomagnetic) gyros

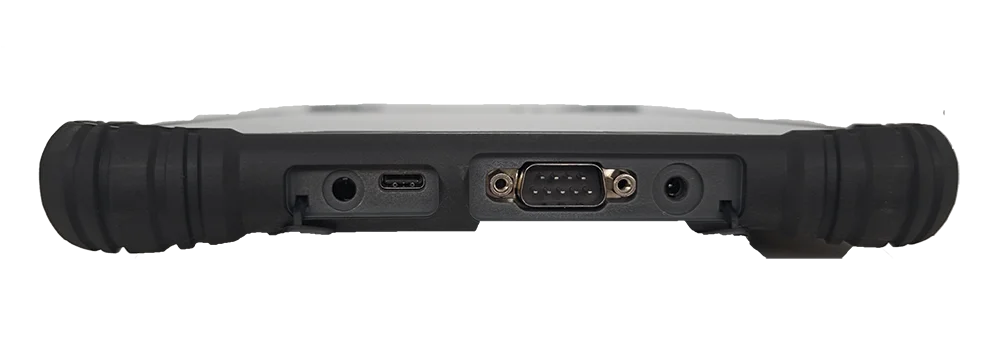

I/O interface	1. Type-C USB*1 2. RJ45*1 3. HDMI*1 4. pogopin*1, USB and serial 5.  pogopin*1 6. DC*1 3.5*1.35 7. headphone jack*1 8. RS232*1 9. USB2.0*2	TYPE-C Support PD,PE HDMI 1.4 RJ45 100Gb Ethernet port RS232 standard DB9 3.5mmStandard headphone port
Pogopin	1.back 16pin pogopin, include (1USB, 1 RS232, 1 UART, 3.3V,5V) 2. bottom 8pin pogo pin; (1USB, 1 RS232, 1 UART, 5V)
button or key	Volume buttons + -, Power button,, Customized buttons (1.2.3.4), Navigation buttons (up, down, left, right), OK button
Customization Features	2D Scanning Head Module	Adapted brands: Honeywell, Zebra, New World
	Second generation ID card module + public security fingerprint	FBI certified fingerprints.
	RFID	UHF RFID UHF 902Mhz - 928Mhz, 865MHz - 868MHz (optional)
	IR Thermal Imaging Module	*Heyman/Hikvon/Goddard, 120/256 Thermal Imaging Module
	PSAM card, encryption chip
	High Precision Positioning	Dual-frequency multimode RTK modules: Huasu M620, UW TAU1312, Mengxin MXT906AM/906B
	LORA	400M
	UWB tags
	Hazardous gas detection	Combustible gases EX/Methane CH4; Oxygen O²; Hydrogen sulphide H²S; Carbon monoxide CO; Carbon dioxide CO²; Sulphur dioxide SO²
attachment	1. USB cable, charging cable 3. Hand strap, carrying strap 4. Car bracket (Optional) 5. stand (Optional) 6. car charger (Optional,)
protection class	1. Waterproof rating IP67 2. Drop rating 1.2 meters 6 sides
temperature range	1. Storage temperature -25 to 80 degrees Celsius 2. Operating temperature -20 to 60 degrees
multilingualism	multilingual
