Kcosit K100A Pro CAN BUS ELD 10.1 inch 8GB RAM Rugged Android 13.0 Tablet for Vehicle Integration
- Bundle
-
- 4GB RAM+64GB eMMC
- 8GB RAM+128GB eMMC
- optional functions
-
- Standard No Docking
- Add All In One Cable
- Standard Docking Station
- Standard Docking+RAM Bracket
- Standard Docking+CANBus Connector
- Standard Docking+RJ45 Connector
- Standard Docking+CANBus +RJ45 Connector
Item specifics

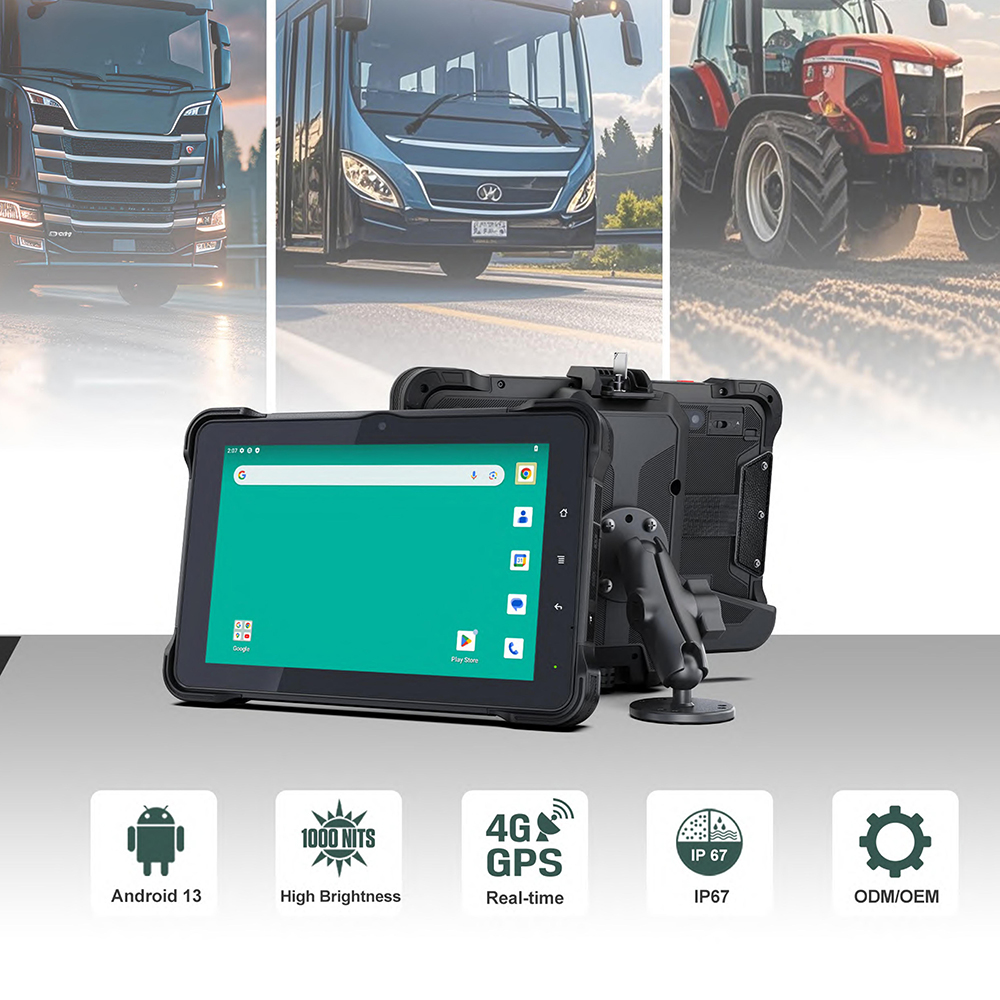

The Kcosit K100A Pro is a rugged, vehicle-mounted Android tablet designed for modern fleet operators and industrial applications. Powered by Android 13, this 10.1-inch tablet combines durability, intelligence, and integration flexibility, making it the ideal in-vehicle control and data terminal across logistics, public transportation, warehouse operations, and heavy machinery fleets.
Engineered to handle the demands of vehicle diagnostics, fleet monitoring, and driver assistance systems, the K100A Pro is equipped with CAN Bus protocol support, allowing seamless communication with onboard vehicle electronics. This feature makes it especially valuable for system integrators building ELD-compliant or ADAS-enhanced mobile workstations.
The 1000-nit high-brightness display ensures readability under direct sunlight, critical for outdoor field use and forklift dashboards. The tablet is certified to IP67 standards and built to MIL-STD-810G, protecting against water, dust, shocks, and extreme temperatures.
With RS232, 4G LTE, Wi-Fi, and optional GPS/NFC/barcode modules, the K100A Pro supports real-time data exchange and remote fleet control. Its 8–36V wide voltage input and VESA/dock compatibility make it highly adaptable to various vehicle types and power systems.
Whether deployed for route optimization, warehouse inventory operations, vehicle safety compliance, or real-time logistics management, the Kcosit K100A Pro offers a future-ready platform built to maximize uptime, streamline operations, and integrate with mission-critical B2B systems.
Main keyword: Rugged Android Tablet for Vehicle Integration
Secondary keywords: CAN Bus tablet, fleet management Android device, IP67 vehicle-mounted terminal
Key Features
-
10.1” 1000 nits sunlight-readable display for uninterrupted use in outdoor or forklift environments
-
Android 13.0 OS offers enhanced security, app compatibility, and performance for enterprise deployment
-
Integrated CAN Bus and SAE J1939 protocols enable seamless communication with vehicle control systems
-
Wide 8–36V DC voltage input supports a broad range of vehicle types, including trucks, vans, and forklifts
-
IP67 waterproof and dustproof rating ensures durability in harsh industrial or logistics conditions
-
RS232 serial port and optional 4G LTE provide flexible connectivity for ELD, DMS, and asset tracking solutions
-
Rugged MIL-STD-810G construction resists shock, vibration, and extreme temperature fluctuations
-
VESA and dock support for secure in-vehicle mounting, making it ideal for fleet and equipment integration
Kcosit K100A PRO

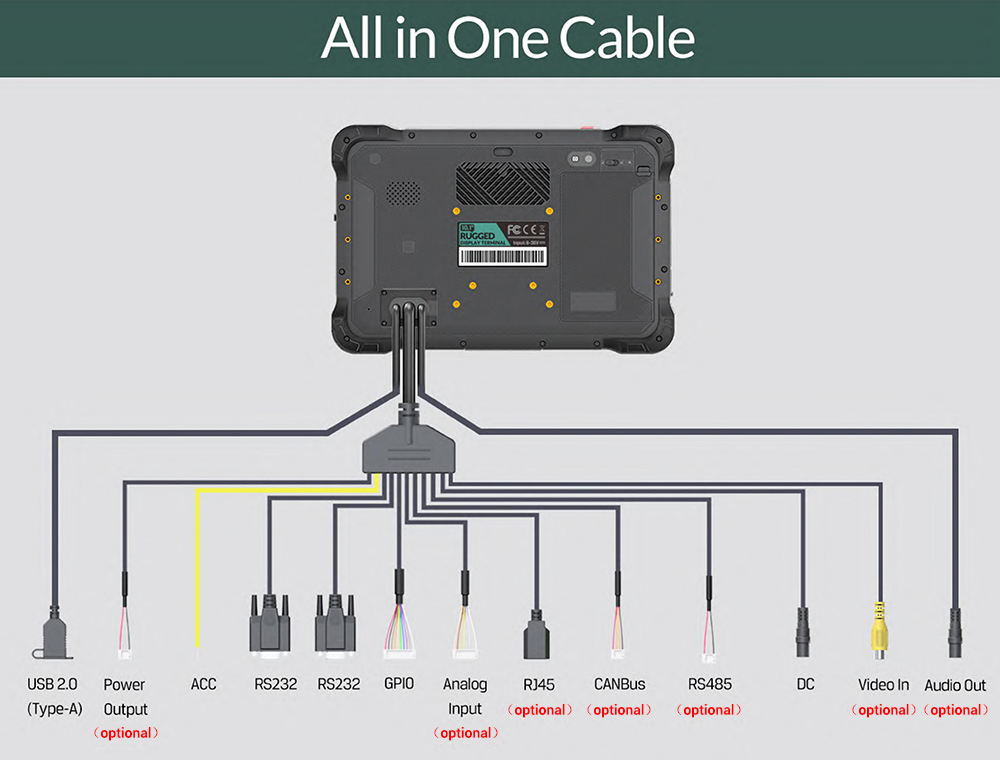

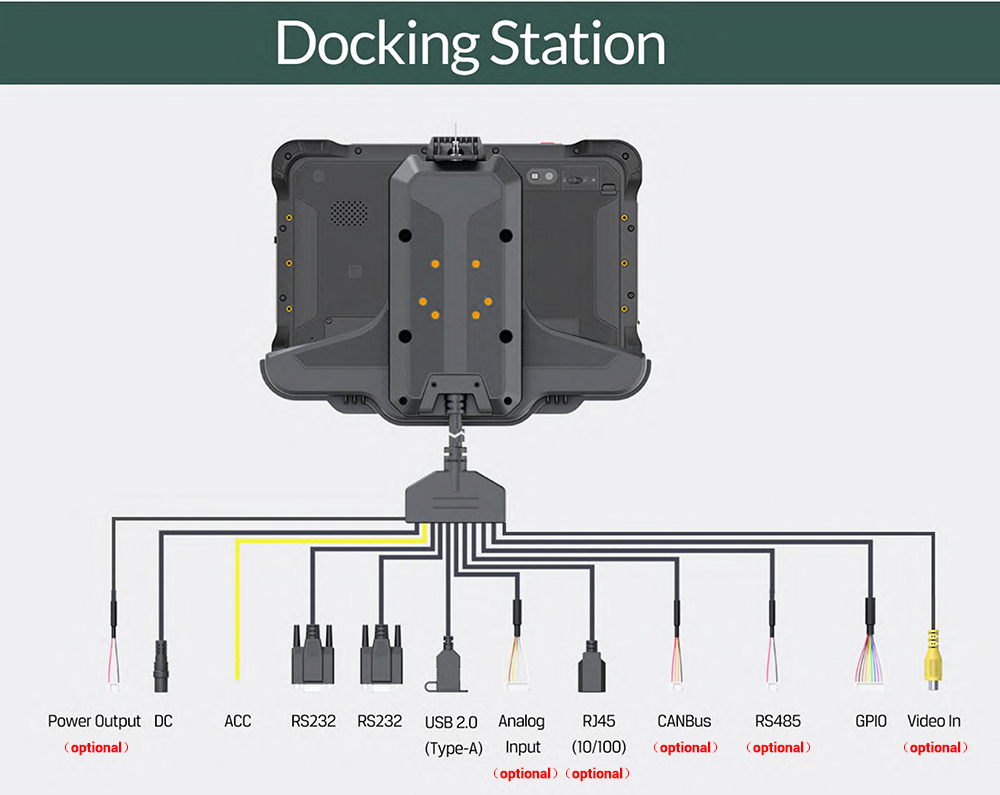

Optional FunctionsStandard Docking Station (with RS232X2+USB2.0X1+GPIOx4+DCx1+ ACCx1) 4G RAM +64G Storage only For Pro All In One Cable : (with RS232X2+USB2.0X1+GPIOx4+DCx1+ ACCx1) 8.0MP Back Camera
5.0MP Front &16.0MP Back CameraNFC built-in (on the Back ) CAN BUS /RJ45 (LAN) Connection Interface RS485/422 Connection Interface J1939 /OBD-II Connection Interface 1-Wire Connection Interface Fingerprint Reader 1D/2D Scanner Docking Station Lock Debugging Cable (For J1939 or OBD-II only) RAM Bracket (RAM-B-166U/RAM-B-101U-225B)

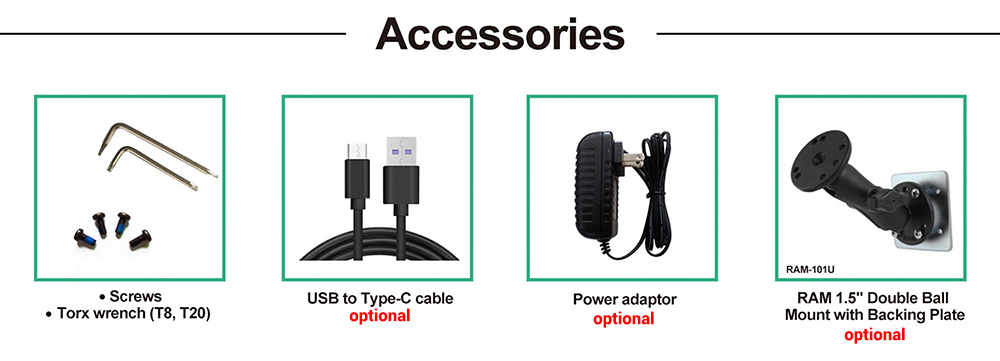

Standard Package Includes:
1. 1X 10-inch Tablet
2. 1X Battery 8000mAh
3. 1X USB Cable
4. 1X Leather Hand strip
5. 1x Docking Station (Optional)
6. 1x RAM Bracket (Optional)

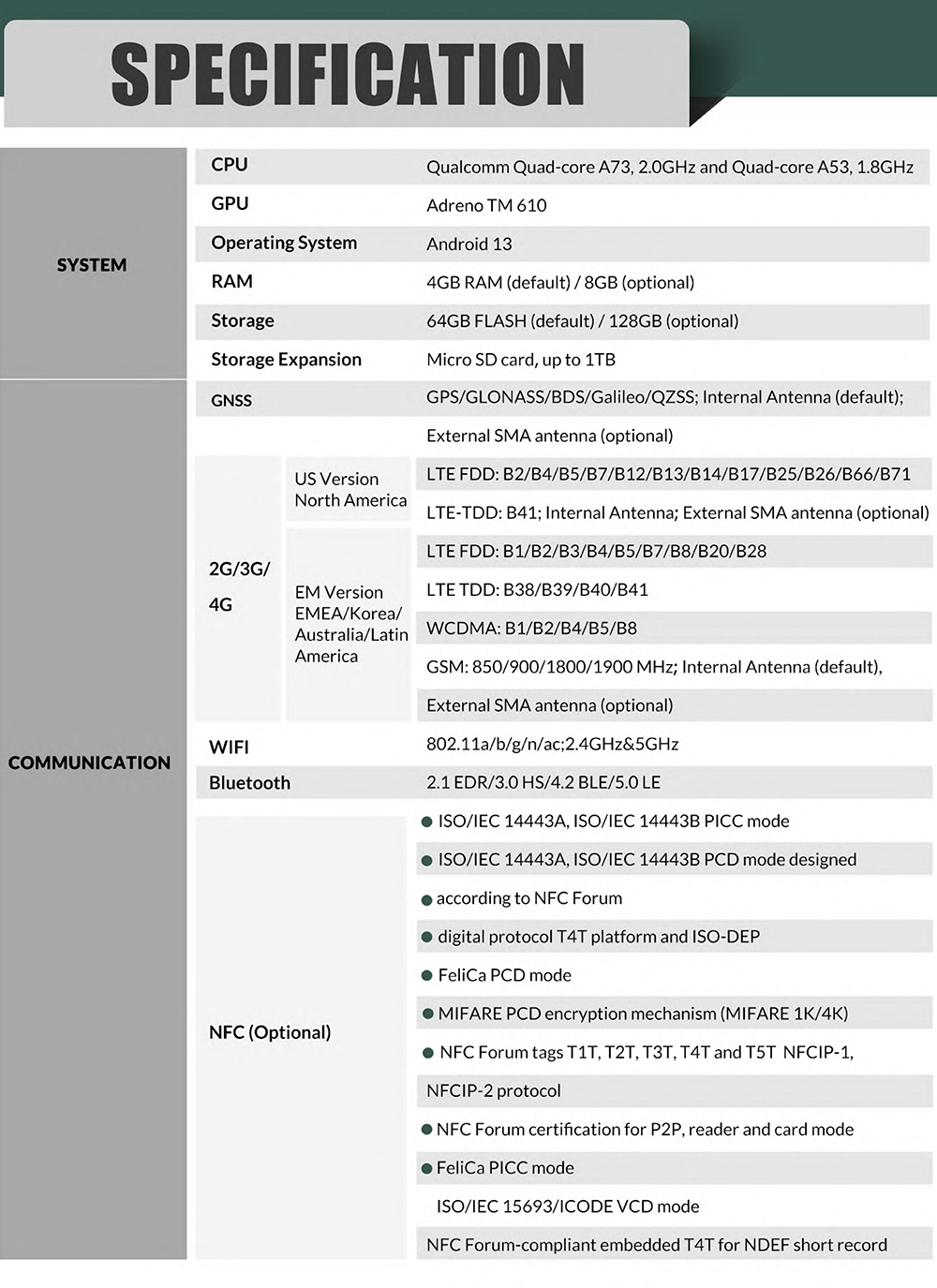

| SYSTEM | CPU | Qualcomm Quad-core A73,2.0GHz and Quad-core A53,1.8GHz | |
| GPU | Adreno TM610 | ||
| Operating System | Android 13 | ||
| RAM | 4GB RAM(default)/8GB(optional) | ||
| Storage | 64GB FLASH(default)/128GB(optional) | ||
| Storage Expansion | Micro SD card,up to 1TB | ||
| COMMUNICATION | GNSS | GPS/GLONASS/BDS/Galileo/QZSS;Internal Antenna(default); | |
| External SMA antenna(optional) | |||
| US Version North America | LTEFDD:B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 | ||
| LTE-TDD:B41;Internal Antenna;External SMA antenna(optional) | |||
| EM Version EMEA/Korea/ Australia/Latin America | LTE FDD:B1/B2/B3/B4/B5/B7/B8/B20/B28 | ||
| LTE TDD:B38/B39/B40/B41 | |||
| WCDMA:B1/B2/B4/B5/B8 | |||
| GSM:850/900/1800/1900 MHz;Internal Antenna(default), | |||
| External SMA antenna(optional) | |||
| WIFI | 802.11a/b/g/n/ac;2.4GHz&5GHz | ||
| NFC(Optional) | ISO/IEC14443A,ISO/IEC 14443B PICC mode | ||
| ISO/IEC 14443A,ISO/IEC 14443B PCD mode designed | |||
| according to NFC Forum | |||
| digital protocol T4T platform and ISO-DEP | |||
| FeliCa PCDmode | |||
| MIFARE PCD encryption mechanism(MIFARE 1K/4K) | |||
| NFC Forum tags T1T,T2T,T3T,T4T and T5T NFCIP-1 | |||
| NFCIP-2 protocol | |||
| NFCForum certification for P2P,reader and card mode | |||
| FeliCa PICC mode | |||
| ISO/IEC 15693/ICODE VCD mode | |||
| NFC Forum-compliant embedded T4T for NDEF short record | |||

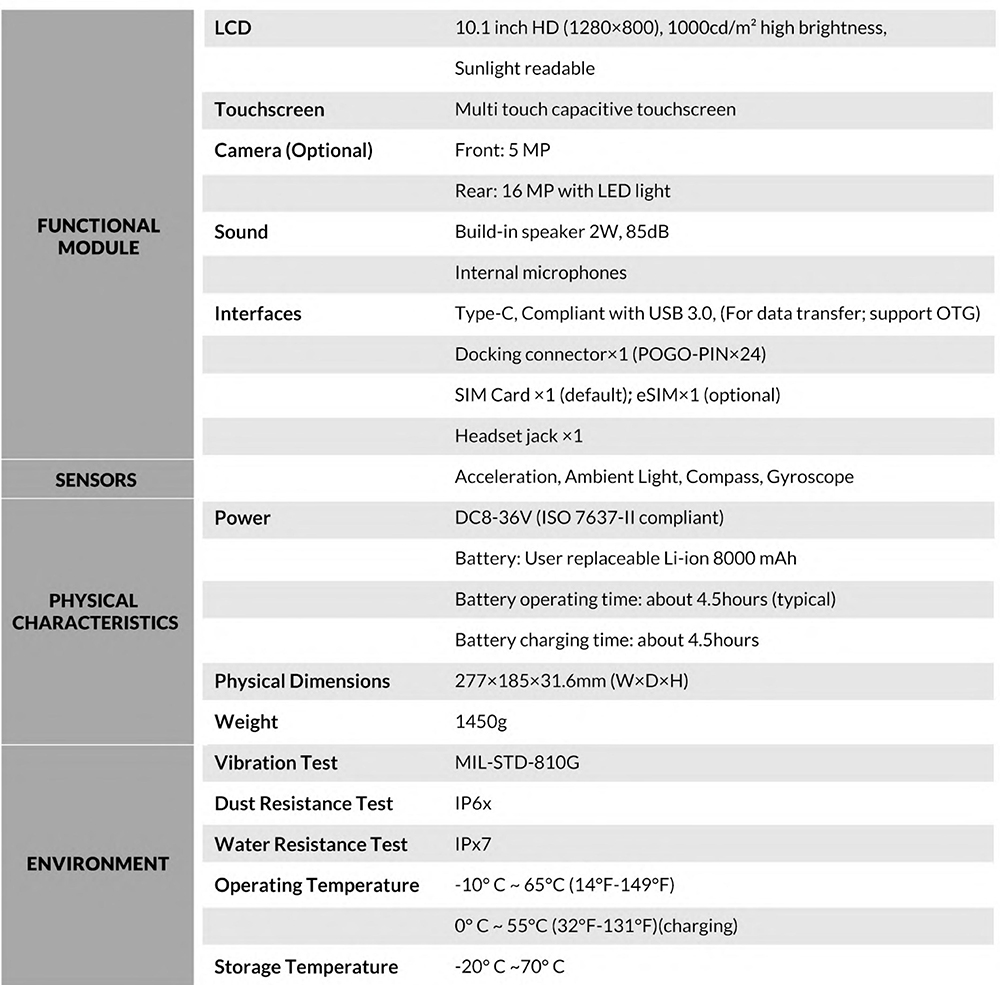

| FUNCTIONAL MODULE | LCD | 10.1inch HD(1280×800),1000cd/m²high brightness, | |
| Sunlight readable | |||
| Touchscreen | Multi touch capacitive touchscreen | ||
| Camera(Optional) | Front:5MP，Rear:16MPwith LED light | ||
| Sound | Build-in speaker 2W,85dB，Internal microphones | ||

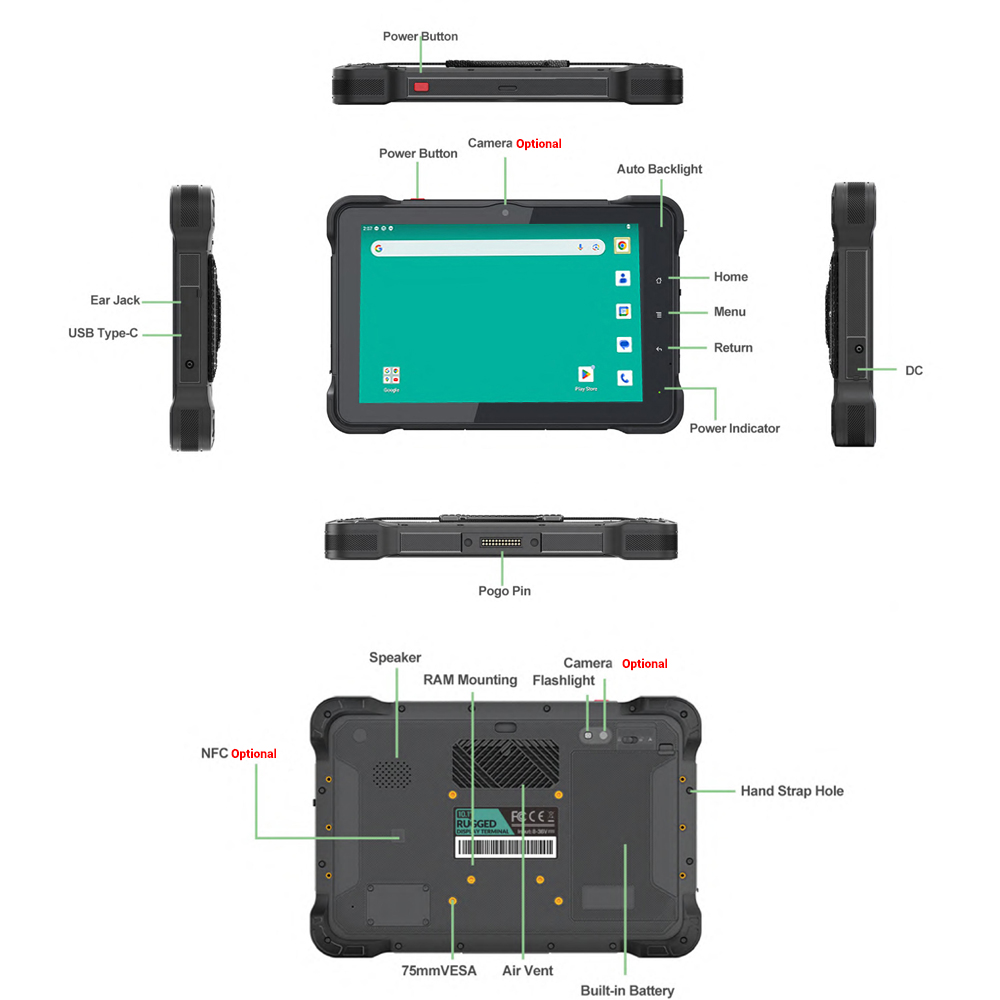

| Interfaces | Type-C,Compliant with USB 3.0,(For data transfer;support OTG) | ||
| Docking connector×1(POGO-PIN×24) | |||
| SIM Card×1(default);eSIM×1(optional) | |||
| Headset jack×1 | |||
| SENSORS | Acceleration,Ambient Light,Compass,Gyroscope | ||
| PHYSICAL CHARACTERISTICS | Power | DC8-36V(ISO 7637-1l compliant)，Battery:User replaceable Li-ion 8000 mAh | |
| Battery operating time:about 4.5hours(typical)，Battery charging time:about 4.5hours | |||
| Physical Dimensions | 277×185×31.6mm(W×D×H) | ||
| Weight | 1450g | ||
| ENVIRONMENT | Vibration Test | MIL-STD-810G | |
| Dust Resistance Test | IP6x | ||
| Water Resistance Test | IPx7 | ||
| Operating Temperature | .-10°C～65℃(14°F-149°F)，0°C~55℃(32°F-131°F)(charging) | ||
| Storage Temperature | .-20°C~70°C | ||
