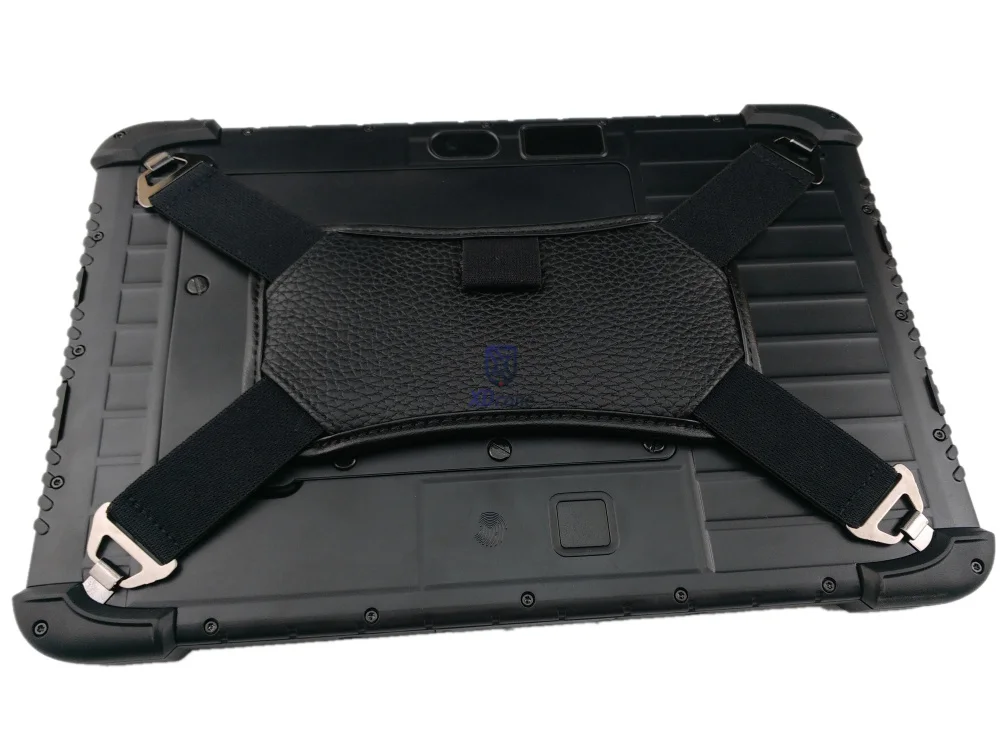

Rugged Tablet PC Android 10.0 Qualcomm MSM8953 10.1" 1280x800 HDMI IP65 Waterproof Fingerprint Reader UHF RFID
Item specifics
Brand Name:
Kcosit
Model:
G16
Product Type:
Android rugged tablet
Interface Type:
USB
Scanning Light Source:
Laser Light
Scan Element Type:
CMOS
Scan Speed:
5 scans/second
Products Status:
Stock
Operating System:
Android 10.0 os
Processor Manufacture:
Qualcomm Snapdragon MSM 8953 Octa Core
Processor Model:
Qualcomm Snapdragon MSM 8953 Octa Core
Screen Size:
10.1
Display resolution:
1280x800
Touch Screen Type:
Capacitive Screen
RAM:
4GB
ROM:
64GB
Cell Capacity:
10000mAH
Battery Type:
Not Detachable
Cellular:
GSM/WCDMA/ 4G LTE
SIM Card Quantity:
Single SIM Card
Supporting Language:
Can install any languages by Microsoft offical website
Tags:
Rugged Tablet PC, Rugged Devices, Rugged Tablets, Industrial Tablet, Waterproof Tablet, IP 67 Waterproof Tablet, Ultra-Rugged Tablet PC, Rugged tablet With barcode scanner, Rugged Device Manufacturer,,Rugged Tablet PC,Qualcomm, IP65 Waterproof,Fingerprint,Reader UHF RFID
Kcosit Rugged Devices --->Email: sales@kcosit.com
Rugged Tablet PC Android 10.0 Qualcomm MSM8953 10.1" 1280x800 HDMI IP65 Waterproof Fingerprint Reader UHF RFID
Standard Version
- Waterproof Grade: IP65 Waterproof Level Shockproof and Dustproof
- Operation System: Android 10.0 GMS
- CPU: Qualcomm Snapdragon MSM 8953 Octa Core 2.0GHZ
- Display Size: 10.1"
- Display Resolution : 1280X800 Pixel IPS
- RAM+ROM: 4GB RAM+64GB ROM
- Camera: Dual Camera 5.0MP Back+ 13MP Front
- Battery Capacity: 10000mAH
- Built-in 4G, Wifi ,GPS Module, Bluetooth Module
- Sim Card Quantity: Single SIM Card (Support Phone Call)
- Band Mode :
- 4G LTE FDD: B1/B3/B5/B7/B8/B20/B28A
LTE TDD: B38/B40/B41
3G WCDMA: B1/B2/B5/B8
2G GSM: 850/900/1800/1900MHz
Optional Functions And Accessories(Contact US if You Need it)
- 1D 2D Barcode Laser Scanner Module
- Charger Dock
- UHF RFID
- Fingerprint Reader
Standard Pacakge Include: (standard without Charger Docking)
1. 1X Tablet
2. 1X Battery 10000mAh (Built-in)
3. 1X AC Charger(US or EU )
4. 1X USB Cable
5. 1X OTG Cable
6. 1X Leather Hand strip
Bundle | Optional Functions And Accessories |
Standard Version | Original Package (Tablet x 1 + Charger x 1 +1xUSB Cable+1x OTG Cable+1xLeather Hand Strip ) |
2D Scan And UHF RFID | Standard Version+1D/2D Laser Barcode Scanner Module+ +UHF RFID Module |
1D Scan Fingerprint | Standard Version+1D Laser Barcode Scanner Module+ Fingerprint Reader |
ADD 2D Barcode Scan | Standard Version+ 1D/2D Laser Barcode Scanner Module |
2D Scan And UHF RFID | Standard Version+ 1D/2D Laser Barcode Scanner Module+UHF RFID Module |
| Type | Details | Standard Configuration | ||||
| Product Form | Type | Rugged Tablet | ||||
| Dimension | 280*180*22 mm | |||||
| Weight | Device unit: 1068g ,Unit with giftbox and standard accessories:g, | |||||
| Device Color | black( bottom shell in black, front shell in black) | |||||
| LCD | Screen Size | 10.1" 16:10 | ||||
| Resolution | 800*1280 IPS LCD | |||||
| Brightness | Minimum 700cd/㎡ | |||||
| TP | Touch Panel | 10points Capacitive,G+G,Rigidity: above 7H-Anti-scratch, TP thickness:1.1mm,COF,support pen | ||||
| Camera | Front | Front:5.0MP | ||||
| Rear | Rear: 13MP auto-facus with flashlight | |||||
| Speaker | build in | Embedded 8Ω/0.8W waterproof speakerx 1 | ||||
| Mic | build in | Sensitivity:-42db, output resistance2.2kΩ | ||||
| Battery | Type | build in polymer li-ion battery | ||||
| Capacity | 3.7V/10000mAh | |||||
| Endurance | nearly 7 hours ( 50% volume sounds,50% brightness, 1080P HD video display by default ) | |||||
| System Hardware Configuration | ||||||
| Type | Details | Description | ||||
| CPU | Type | Qualcomm Snapdragon MSM 8953 Octa Core | ||||
| Speed | 2.0GHZ | |||||
| GPU | type | Adreno 506 1920 × 1200 @ 60 fps | ||||
| RAM | Memory | 4GB/ LPDDR3 | ||||
| ROM | storage | 64GB | ||||
| Indicator light | build in | Indicator light of charge, red light will flash when device has low power. red long light when charging, green long light when full power | ||||
| G_sensor | build in | Gravity acceleration sensor | ||||
| Network Connections | ||||||
| Type | Details | Description | ||||
| WIFI | WIFI module | WIFI 802.11 b/g/n/a/ac frequency 2.4G+5G dual band WIFI, | ||||
| Bluetooth | build in | BT4.1(BLE) | ||||
| 2G/3G/4GB | build in | LTE FDD: B1/B3/B5/B7/B8/B20/B28A LTE TDD: B38/B40/B41 WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900MHz | ||||
| GPS | build in | support:GPS+Glonass;Capture sensitivity:-140 dBm;Cool Start Time:<50秒,Hot start time:<5秒,GPS frequency:1575.42MHz,Glonass frequency:1602MHZ | ||||
| Fingerprint Reader | Optional Functions | support reading the fingerprint information in the 1st and 2nd ID card Port:USB or TTL serial port optional power 5v or 3.3v,size:53mm*52mm*10mm | ||||
| UHF RFID | Optional Functions | UFH,Working spectrum range 902Mhz – 928Mhz,inventory tag peak velocity > 50 pcs /second | ||||
| Data Collection | ||||||
| Type | Details | Description | ||||
| 1D Barcode Scanner | Optional Functions | Honeywell N4313 optical resolution:5mil scan speed:50time/s support code system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93 ,Code 11 | ||||
| 2D Barcode Scanner | Optional Functions | Zebra SE4710 optical resolution:5mil scan speed:50time/s support code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse | ||||
| Interface Configuration | ||||||
| Type | Details | Descriptions | ||||
| SIM Card | SIM Card | SIM card x2 in tablet | ||||
| TF Card | TF Card | x1 max:128G | ||||
| USB Interface | Extend external memory and data transfer | Standard USB 2.0*1 TypeC x1(data/charing) | ||||
| Earphone Jack | Audio Output | 3.5mm standard earphone jack x1 | ||||
| DC Jack | Power | DC 5.5V 4A 3.5mm Power connector x1 | ||||
| HDMI | Video Output | Mini HDMI x1 | ||||
| Extensive Slot | pogo Pin | 12pin Pogo Pin x1 | ||||
| Keys | Keys | Powerx1 Volx2 Px3 | ||||
| Standard Accessories | ||||||
| Type | Details | Description | ||||
| OTG cable | OTG cable | USB OTG to MICRO USB cable length:45mm | ||||
| USB cable | USB cable | USB to micro 5P L=1.2M 4core aluminum foil shield cable | ||||
| Power Adaptor | Standard | AC100V ~ 240V,50Hz/60Hz output DC 5.5V/4A USA Standard CE approval | ||||
| Software Configuration | ||||||
| Type | Details | Description | ||||
| Operation System | OS version | Android 10.0 | ||||
| Product Certificate | ||||||
| Type | Details | Description | ||||
| Certificate System | IP65 | IPX5 Method name:short time submerging test test device and test condition:submerge water box.the size should make the testing sample into submerge box and after then , the distance from sample bottom to water surface at least 1m. and distance from sample top side to water surface at least 0.15m. Testing time: 30 min | ||||
| CE NB | Y | |||||
| MIL-STD-810G | Y | |||||
| Battery | UN38.3,MSDS,IEC62133 | |||||
| Reliability | ||||||
| Type | Details | Descriptions | ||||
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status | ||||
| Operate Temperature | -10 C to 50 C (-20 C to 60 C optional) | |||||
| Store Temperature | -30 C to 70 C | |||||
| Humidity | Humidity: 95% Non-Condensing | |||||
