K10J Rugged Windows Tablet PC Industrial Computer 10.1" Intel JASPER LAKE N5105 RJ45 GPS Hot Swappable
stars, based on 0reviews
Price:
- Operating System
-
- Windows 10 Home OS
- Windows 10 Pro OS
- Optional
-
- 8GB RAM 128GB SSD
- 16GB RAM 128GB SSD
Item specifics
Brand Name:
Kcosit
Screen Size:
10.1
Feature:
GPS, HDMI, Multi Touch, G Sensor, OTG, Dual Cameras
Memory Capacity:
≥8GB
Operating System:
Windows 10
Processor Core:
Processor Manufacture:
Intel
Display resolution:
1920x1200
Touch Screen Type:
Capacitive Screen
Tablet Data Capacity:
128GB
Item Condition:
New
Processor Model:
Intel JASPER LAKE N5105
Extend Port:
USB, SD Card, HDMI, OTG, TF card, DC Jack, Mini USB, Earphone Jack
Network Communiction:
Wifi, 4G LTE
Camera:
Front Camera 2.0MP, Back Camera 8.0MP
Battery Type:
Detachable
Battery capacity ::
5860mAH
SIM Card Quantity:
Single SIM Card (Only For Data Transmission)
Band Mode :
2G GSM: 900/1800MHZ, 3G WCDMA: 900/2100MHZ, 4G LTE: LTE FDD: B1/B3/B7/B8/B20/B28A
Supporting Language:
Polish, German, Russian, French, Portuguese, Japanese, Swedish, Hebrew, Greek, Spanish, Italian, English, Can install any Language by Microsoft official Website
Tags:
Rugged Tablet PC, Rugged Devices, Rugged Tablets, Industrial Tablet, Waterproof Tablet, IP 67 Waterproof Tablet, Ultra-Rugged Tablet PC, Rugged tablet With barcode scanner, Rugged Device Manufacturer,, Rugged Windows Tablet,Panel PC,Industrial Vehicle Computer,10.1
Kcosit Rugged Devices --->Email: sales@kcosit.com
K10J Rugged Windows Tablet Panel PC Industrial Computer 10.1" Intel JASPER LAKE N5105 16GB RAM RJ45 GPS Hot Swappable Battery
Standard Version (Windows 10 Home OS)

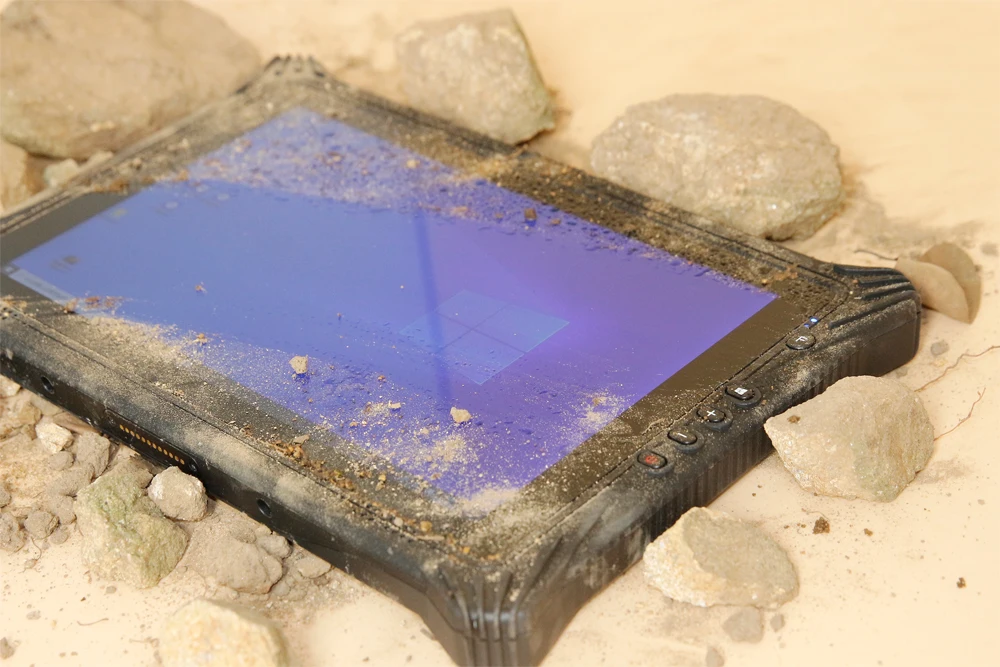

- Waterproof Grade: IP65 Waterproof Level Shockproof and Dustproof
- Operation System: Windows 10 Home (optional Windows Pro)
- CPU: Intel JASPER LAKE N5105
- GPU : Intel® UHD Graphics 620
- Display Size: 10.1"
- Display Resolution : 1200×1920 4 00 cd/m2
- RAM+SSD: 8GB RAM+128GB SSD (Optional 16GB RAM+128GB SSD)
- Camera: Dual Camera 8.0MP Back+ 2.0MP Front
- Battery Capacity: 7.4V 5000mAH+Small Battery 7.4V 860mAH Built-in
- Built-in 4G, Wifi , U-BLOX M8Q GPS Module, Bluetooth Module
- Sim Card Quantity: Single SIM Card (Only For Data Transmission)
- Band Mode :
- 2G GSM: B3/B8
- 3G WCDMA: B1/B8
- 4G LTE: LTE FDD: B1/B3/B7/B8/B20/B28A
Standard Pacakge Include: (standard without Charger Docking)
1. 1X Tablet
2. 1X Battery 5000mAh +Small Battery 7.4V 860mAH
3. 1X AC Charger(US or EU )
4. 1X USB Cable
5. 1X OTG Cable
6. 1X Leather Hand strip
| Product Outlook | |||||||
| Type | Details | Standard Configuration | Optional | ||||
| Product Form | Type | Rugged Tablet | NA | ||||
| Dimension | 289.9*196.7*27.4mm | NA | |||||
| Weight | Device unit: 1140g 5000mAh battery:250g | NA | |||||
| Device Color | Black(Front and Rear Panel: Black, Decorate Board: Black) | NA | |||||
| LCD | Screen Size | 10.1 inch 16:10 | Full-fit components | ||||
| Resolution | 1200×1920 | ||||||
| Brightness | 330 cd/m2 (or 400 cd/m2 ) | ||||||
| TP | Touch Panel | 10 points Capacitive, G+G,Rigidity: above 7H-Anti-scratch | |||||
| Camera | Front | Front:2.0MP | NA | ||||
| Rear | Rear: 8.0MP USB Camera With flashlight | NA | |||||
| Speaker | Built-in | Embedded 8Ω/0.8W waterproof speaker x 1 | NA | ||||
| Mic | Sensitivity:-42db, Output resistance:2.2kΩ | NA | |||||
| Small Battery | Type | Build-in Lithium-ion polymer battery, Non-removable | NA | ||||
| Capacity | 7.4V/860mAh | NA | |||||
| Endurance | 30mins(default 50% volume,default200nit,play 1080P HD video) | NA | |||||

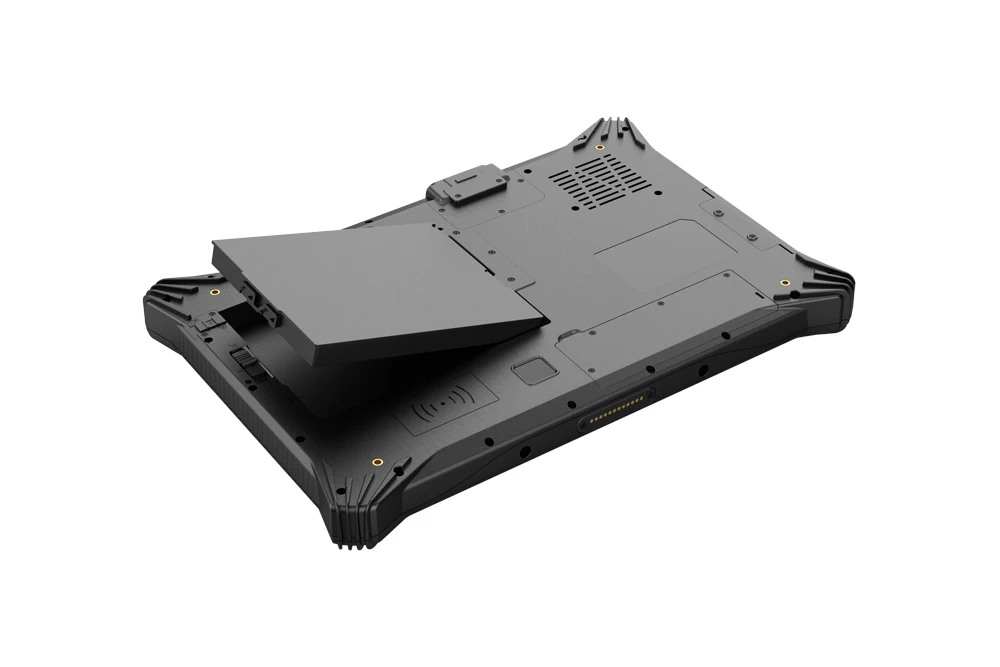

| Big Battery | Type | Lithium-ion polymer battery, pluggable, Hot Swap | NA | ||||
| Capacity | 7.4V/5000mAh | NA | |||||
| Endurance | 5hrs(default 50% volume,default200nit,play 1080P HD video) | NA | |||||
| System Hardware Configuration | |||||||
| Type | Details | Description | Optional | ||||
| CPU | Type | Intel JASPER LAKE N5105 | |||||
| Speed | 4M Cache, 2.9GHz | ||||||
| GPU | Type | Intel® UHD Graphics 620 | |||||
| RAM | DDR4L | 8GB | |||||
| SSD | NGFF SSD | 128GB removable | |||||
| TPM | Built-in | TPM2.0 SLB9665T | |||||
| G_sensor | Built-in | Gravity acceleration sensor | |||||
| Fingerprint | Built-in | ×1 SPI Fingerprint (windows hello boot login) | |||||
| Fan | Built-in | ×1 IPX5 | |||||
| NFC | Built-in | NA | NXP100 | ||||
| Network Connections | |||||||
| Type | Details | Description | Optional | ||||
| WIFI | WIFI Module | WIFI 802.11(a/b/g/n/ac) dual-frequency 2.4G+5.8G WIFI | |||||
| Bluetooth | Built-in | BT4.2 (BLE) class1 transmitted distance:10m | |||||
| 4G | Built-in | Mein 750 LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (China Unicom Telecom, mobile support is not good, only B8 supports no TDD band) Europe, Middle East, Africa, Taiwan, Japan | NA | ||||
| GPS | Built-in | U-blox M8Q ,Support:GPS, Beidou module, glonass | NA | ||||

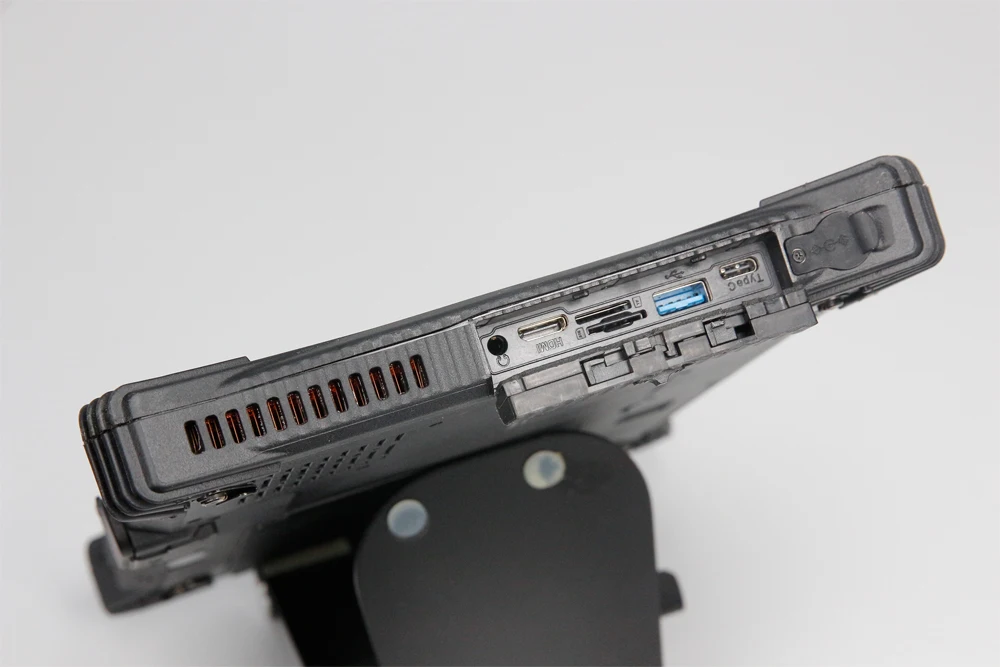

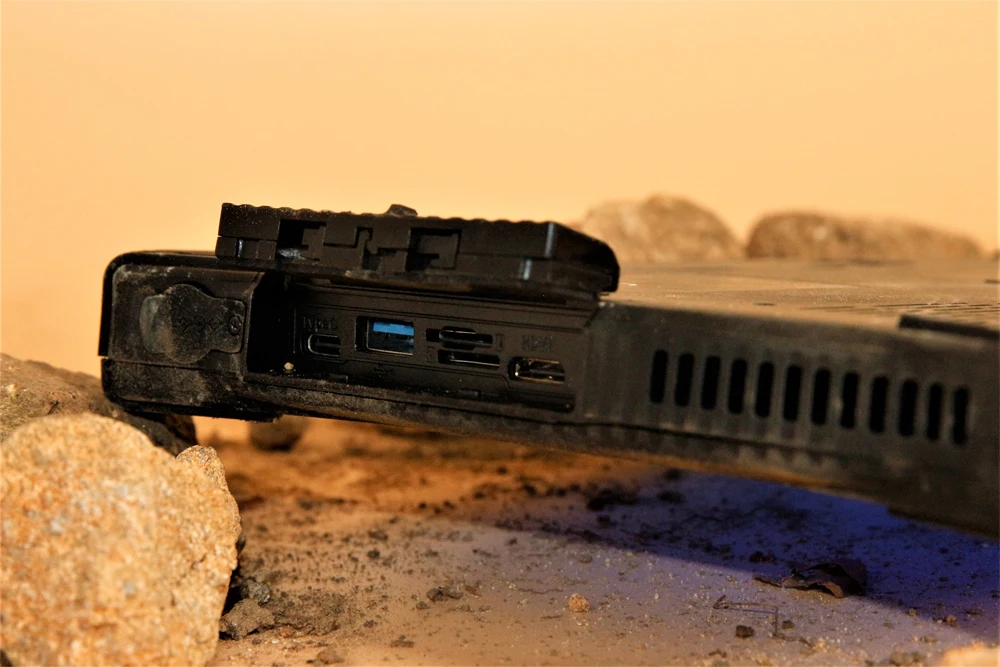

| Interface Configuration | |||||||
| Type | Details | Descriptions | Optional | ||||
| type A usb | USB3.0 | x1 USB 3.0 | NA | ||||
| Type C | Type C | *1 Type C (USB3.0/HDMI/Charging) | NA | ||||
| Earphone Jack | Audio Output | ∮3.5mm Standard Earphone Jack x1 | NA | ||||
| HDMI Jack | Audio&Video Output | HDMI 1.4a mini x1 | NA | ||||
| TF Slot | Extensive External Memory | Support TF x1 max:128G | NA | ||||
| SIM Slot | SIM Slot | SIM x1 | NA | ||||
| DC Jack | Power | DC 19V 3.42A ∮5.5mm Power connector x1 | NA | ||||
| pogo pin | pogo pin | x1 12pin(USB&Docking charging) | NA | ||||
| Keys | |||||||
| Type | Details | Descriptions | Optional configuration | ||||
| F KEY | Scanner key | Scanner key x1, No barcode then customizable ((GPIO) | NA | ||||
| volume+ | volume | Volume adjustment key(+) x 1 | NA | ||||
| volume- | volume | Volume adjustment key(-) x 1 | NA | ||||
| windows | windows key | x1 | NA | ||||
| power | power key | x1 | NA | ||||
| Indicator light | |||||||
| Type | Details | Descriptions | Optional configuration | ||||
| power | Built-in | Power on is always blue, power off light is off ×1 | NA | ||||
| baterry | Built-in | (Red and Green) Charging red, full of green, red light flashing on low power, not discharging ×1 | NA | ||||
| Module extension (Note: The following modules are one of five) | |||||||
| Type | Details | Descriptions | Optional configuration | ||||
| Ethernet interface | RJ45 board | *1(10/100M/1000M) Ethernet interface | |||||
| serial port | DB9 board | NA | *1 (RS232)9-line full function | ||||
| USB2.0 | USB2.0 | NA | *1 USB2.0 Big USB | ||||
| One-dimension barcode | optional | NA | Honeywell N6551/Optical resolution: 5mil/scan speed: 50 times /s serial port | ||||
| Two-dimension barcode | optional | NA | EM80 hardcode | ||||
| Optical resolution:5mil | |||||||
| scan speed:50 times /s | |||||||
| Code system: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec,Aztec Inverses, Han Xin, Han Xin Inverse | |||||||
| Standard Accessories | |||||||
| Type | Details | Descriptions | Optional | ||||
| Power Adaptor | Standard | AC100V ~ 240V,19V3.42A/65W Output USA Standard CE approval | UK Standard | ||||
| EU Standard | |||||||
| Software Configuration | |||||||
| Type | Details | Descriptions | Optional | ||||
| Operation System | OS version | windows 10 Home 64bit Default language: English | Windows 10 Home 64bit | ||||
| Windows 10 Pro 64bit | |||||||
| Windows 10 IOT 64bit | |||||||
| Product Certificate | |||||||
| Type | Details | Descriptions | Optional | ||||
| Certificate System | IP65 | IP65 Report: Water Resistance: IP-X5, Dust Resistance: P-6X Report ID no.:SET2015-07677 a.Inner Nozzle Diameter:6.3mm; b. Water Speed:12.5±0.625L/min; c. Water Pressure: Adjust according to water volume; d.Central part of water volume: A round with a diameter of about 40mm at the distance from the nozzle of 2.5m. e.Spray time on the surface of panel: About 1 min/Square meter;f.Test time: at least 3min; g.Distance between nozzle and panel surface:2.5～3m. After the test, there is no water leakage in the sample. | NA | ||||
| CE-NB | YES | NA | |||||
| MIL-STD-810G | YES | NA | |||||
| CCC | YES | NA | |||||
| Battery | UN3803, MSDS, IEC62133, Aviation, Ocean shipping reports | NA | |||||
| Reliability | |||||||
| Type | Details | Descriptions | Optional | ||||
| Product Reliability | Drop Height | 1.22m composite wood floors, in operation status | |||||
| Operate Temperature | '-20 °C to 60 °C | ||||||
| Store Temperature | '-30 °C to 70 °C | ||||||
| Humidity | Humidity: 95% Non-Condensing | ||||||
| Product feature: 1. Support Windows 10; 2. Support USB3.0 type A connector; 3. Support Battery Single Charger Docking; 4. Support GPS navigation; 5. Support 1D/2D barcode scanner; 6. Support Finger Identification; 7. Rugged IP65 protection level; 8. Support 5000mAh pluggable battery, big and small double batteries; 9. Support UART port, RJ45 port, and customized port; 10. Support Wrist Strap and back jacket; | |||||||
