K20J Rugged Windows 10 Tablet PC 12.2" JASPER LAKE N5105 16GB RAM GNSS GPS RJ45 RS232

Standard Version (Windows 10 Home OS with RJ45 Interface)

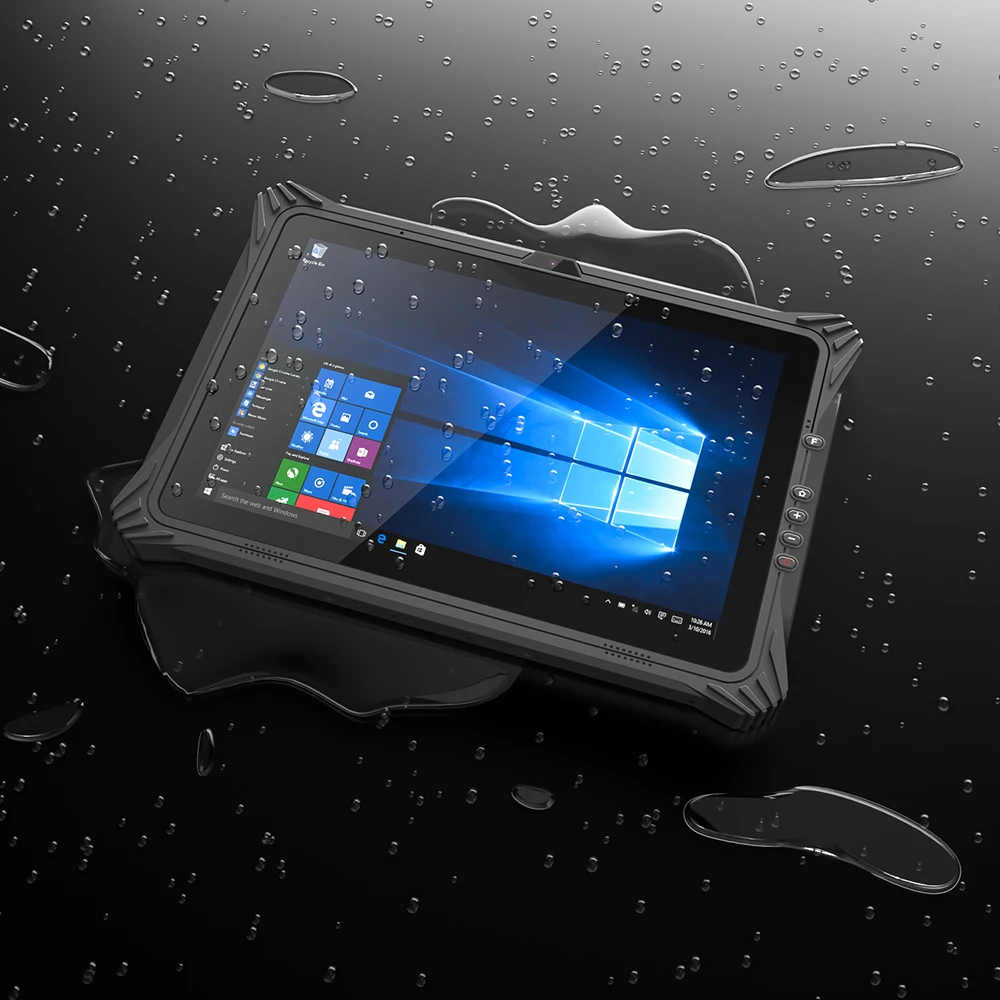

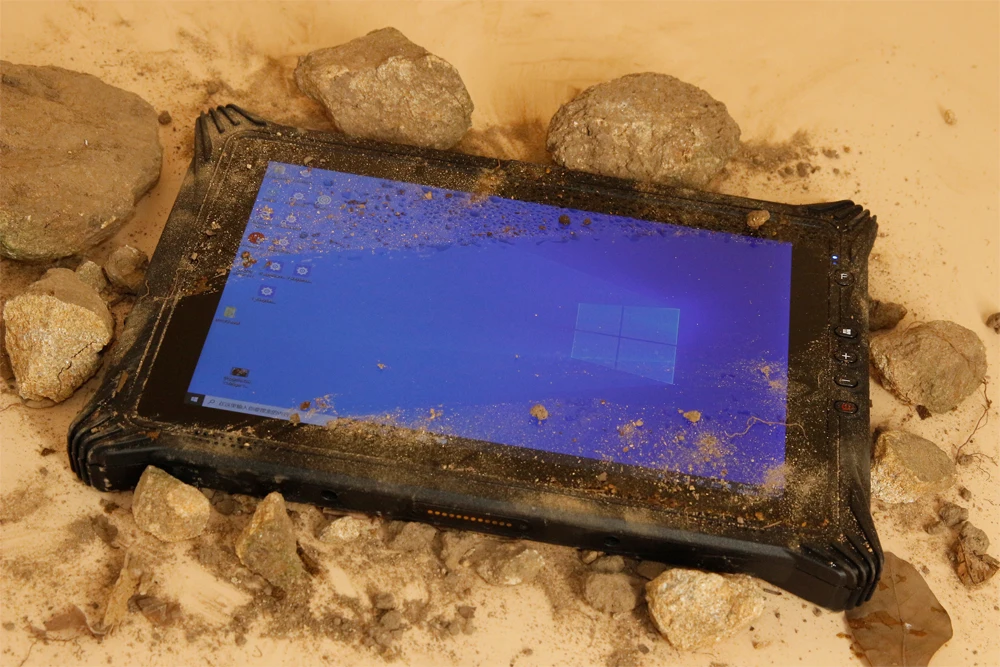

• Waterproof Grade:  IP65 Waterproof Level Shockproof and Dustproof
• Operation System:  Windows 10 Home /Pro
• CPU: Intel JASPER LAKE N5105
• GPU : Intel® UHD Graphics 620
• Display Size: 12.2"
• Display Resolution : 1920*1200   280 cd/m2
• RAM+SSD: 8GB RAM+128GB SSD  (Optional : 16GB RAM+128GB SSD)
• Camera: Dual Camera  8.0MP Back+ 2.0MP Front
• Battery Capacity: 7.4V  6300mAH+Small Battery 7.4V 860mAH Built-in
• Built-in 4G LTE, Wifi,GPS Module, Bluetooth Module
• GNSS: GPS/GLONASS/Beidou  (Ublox M8Q Chip Precision About 2~3m)
• Support Fingerprint Reader   SPI Fingerprint (windows Hellow boot login)
• Sim Card Quantity: Single SIM Card (Only For Data Transmission)
• Band Mode :
• 2G GSM: B3/B8
• 3G WCDMA: B1/B8
• 4G LTE:  LTE FDD: B1/B3/B7/B8/B20/B28A
• optional extension interface (Fellow modules are one of Five)
• Standard version with RJ45 Ethernet interface ( Optional RS232;USB 2.0; 1D Scanner; 2D Scanner)

Standard Package Include: (standard without Charger Docking)

1. 1X Tablet
2. 1X Battery 6300mAh +Small Battery 7.4V 860mAH

3. 1X AC Charger(US or EU )
4. 1X USB Cable

5. 1X OTG Cable

6. 1X Leather Hand strip

Product Outlook
Type		Details		Standard Configuration			Optional
Product Form		Type		Rugged Tablet			NA
		Dimension		339.3*230.3*26 mm			NA
		Weight		Device unit: 1500g			NA
		Device Color		Black(Front and Rear Panel: Black, Decorate Board: Black)			NA
LCD		Screen Size		12.2 inch   16:10			Full-fit components
		Resolution		1920*1200 IPS
		Brightness		280cd/㎡
TP		Touch Panel		10 points Capacitive, G+G, Rigidity: above 7H-Anti-scratch			Optional SLR Sunlight visible film
Camera		Front		Front:2.0MP			NA
		Rear		Rear: 8.0MP    USB Camera With flashlight			NA
Speaker		Built-in		Embedded 8Ω/0.8W waterproof speaker x 1			NA
Mic				Sensitivity:-42db, Output resistance:2.2kΩ			NA
Small Battery		Type		Build-in Lithium-ion polymer battery,  Non-removable			NA
		Capacity		7.4V/860mAh			NA
		Endurance		30mins(default 50% volume,default200nit,play 1080P HD video)			NA

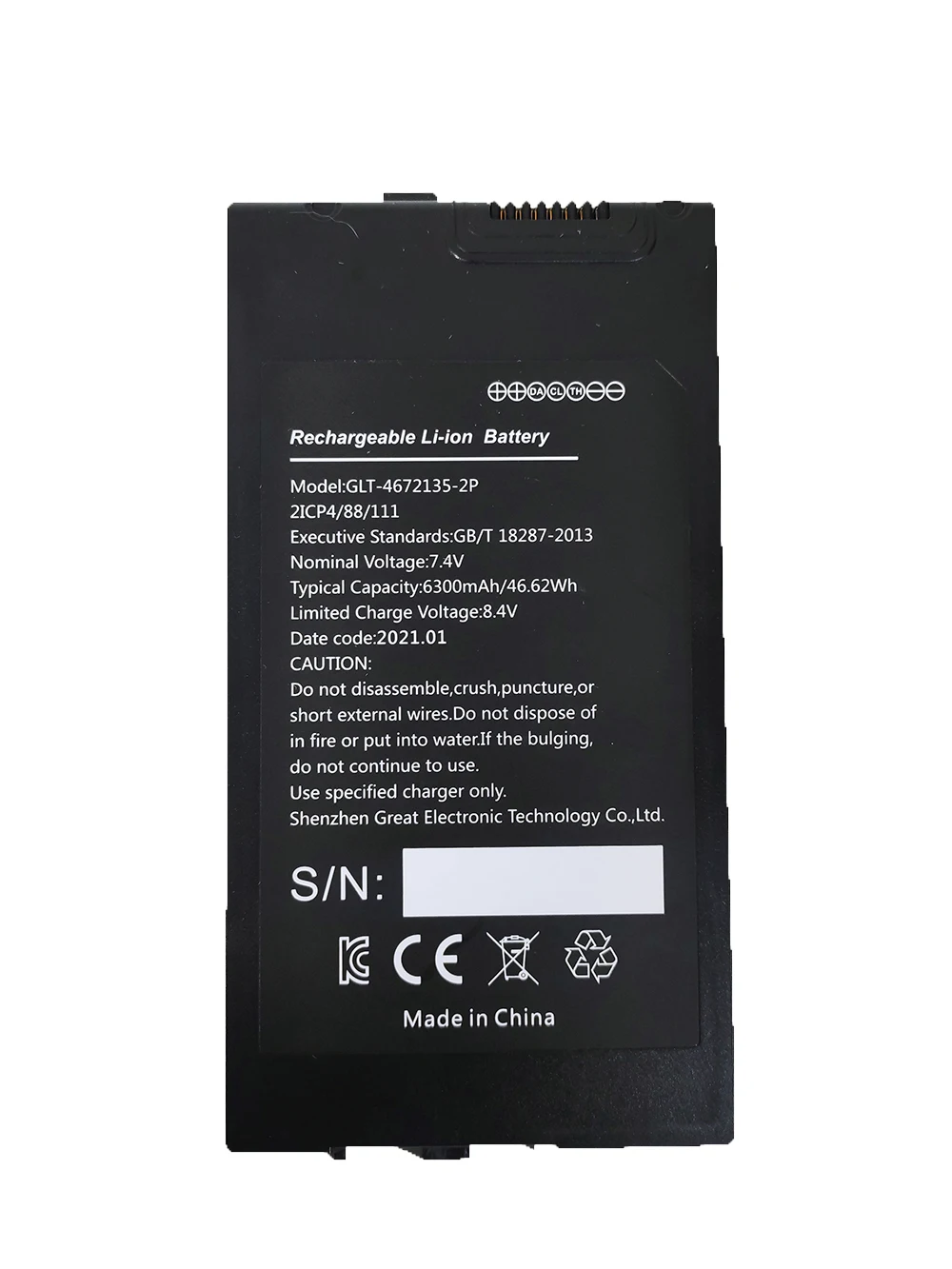

Big Battery		Type		Lithium-ion polymer battery, pluggable, Hot Swap			NA
		Capacity		6300mAh/7.4V			NA
		Endurance		5hrs(default 50% volume,default200nit,play 1080P HD video)			NA
System Hardware Configuration
Type		Details		Description			Optional
CPU		Type		Intel JASPER LAKE N5105			NA
		Speed		4M Cache, 2.9GHz			NA
GPU		Type		Intel® UHD Graphics 620			NA
RAM		DDR4L		8GB			NA
SSD		NGFF SSD		128GB   removable			NA
TPM		Built-in		TPM2.0   SLB9665T			NA
G_sensor		Built-in		Gravity acceleration sensor			NA
Fingerprint		Built-in		×1 SPI Fingerprint (windows hello boot login)			NA
Fan		Built-in		×1  IPX5			NA
NFC		Built-in		NA			NXP100
Network Connections
Type		Details		Description			Optional
WIFI		WIFI Module		WIFI 802.11(a/b/g/n/ac)  dual frequency 2.4G+5.8G WIFI intel 3165D2WG (3.3v)			NA
Bluetooth		Built-in		BT4.2 (BLE) class1  transmitted distance:10m			NA
4G		Built-in		Mein 750 LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8                                    China (China Unicom Telecom, mobile support is not good, only B8 supports no TDD band) Europe, Middle East, Africa, Taiwan, Japan			NA
GPS		Built-in		U-blox  M8Q ,Support:GPS, Beidou module, glonass			NA

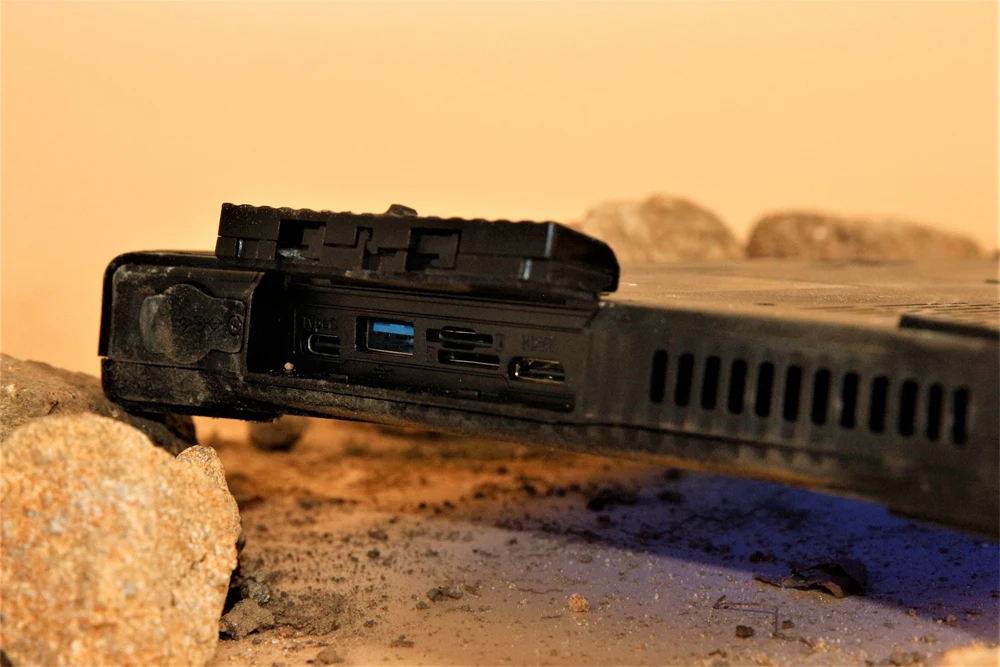

Interface Configuration
Type		Details		Descriptions			Optional
type A usb		USB3.0		x1  USB 3.0			NA
Type C		Type C		*1 Type C (USB3.0/HDMI/Charging)			NA
Earphone Jack		Audio Output		∮3.5mm Standard Earphone Jack  x1			NA
HDMI Jack		Audio&Video Output		HDMI 1.4a mini  x1			NA
TF Slot		Extensive External Memory		Support TF   x1    max:128G			NA
SIM Slot		SIM Slot		SIM   x1			NA
DC Jack		Power		DC 19V 3.42A ∮5.5mm  Power connector  x1			NA
pogo pin		pogo pin		x1   12pin(USB&Docking charging)			NA
Keys
Type		Details		Descriptions			Optional configuration
F KEY		Scanner key		Scanner key x1, No barcode then customizable ((GPIO)			NA
volume+		volume		Volume adjustment key(+)  x 1			NA
volume-		volume		Volume adjustment key(-)  x 1			NA
windows		windows key		x1			NA
power		power key		x1			NA
Indicator light
Type		Details		Descriptions			Optional configuration
power		Built-in		Power on is always blue, power of light is off ×1			NA
battery		Built-in		(Red and Green) Charging red, full of green, red light flashing on low power, not discharging ×1			NA
Module extension (Note: The following modules are one of five)
Type		Details		Descriptions			Optional configuration
Ethernet interface		RJ45 board		*1(10/100M/1000M) Ethernet interface
serial port		DB9 board		NA			*1 (RS232)9-line full function
USB2.0		USB2.0		NA			*1  USB2.0 Big USB
One-dimension barcode		optional		NA			Honeywell  N6551/Optical resolution: 5mil/scan speed: 50 times /s serial port
Two-dimension barcode		optional		NA			EM80  hardcode
							Optical resolution:5mil
							scan speed:50 times /s
							Code system: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse   Maxicode, QR Code, MicroQR, QR Inverse, Aztec,Aztec Inverses, Han Xin, Han Xin Inverse
Standard Accessories
Type		Details		Descriptions			Optional
Power Adaptor		Standard		AC100V ~ 240V,19V3.42A/65W Output       USA Standard  CE approval			UK Standard
							EU Standard
Software Configuration
Type		Details		Descriptions			Optional
Operation System		OS version		windows 10 Home 64bit   Default language: English			Windows 10 Home 64bit
							Windows 10 Pro 64bit
							Windows 10 IOT 64bit
Product Certificate
Type		Details		Descriptions			Optional
Certificate System		IP65		IP65 Report: Water Resistance:IP-X5, Dust Resistance: P-6X  Report ID no.:SET2015-07677 a.Inner Nozzle Diameter:6.3mm;   b. Water Speed:12.5±0.625L/min; c. Water Pressure: Adjust according to water volume; d.Central part of water volumn: A round with a diameter of about 40mm at the distance from the nozzle of 2.5m. e.Spray time on the surface of panel: About 1 min/Square meter;f.Test time: at least 3min; g.Distance between nozzle and panel surface:2.5～3m. After the test, there is no water leakage in the sample.			NA
		CE-NB		YES			NA
		MIL-STD-810G		YES			NA
		CCC		YES			NA
		Battery		UN3803, MSDS, IEC62133, Aviation, Ocean shipping reports			NA
Reliability
Type		Details		Descriptions			Optional
Product Reliability		Drop Height		1.22m  composite wood floors, in operation status
		Operate Temperature		'-20 °C to 60 °C
		Store Temperature		'-30 °C to 70 °C
		Humidity		Humidity: 95% Non-Condensing
Product feature: 1. Support Windows 10; 2. Support  USB3.0 type A connector; 3. Support Battery Single Charger Docking;  4. Support GPS navigation; 5. Support 1D/2D barcode scanner; 6. Support Finger Identification; 7. Rugged IP65 protection level; 8. Support 6300mAh pluggable battery, big and small double batteries; 9. Support UART port, RJ45 port and customized port; 10. Support Wrist Strap and back jacket;
