Rugged Handheld K59H Industrial-Grade PDA with Full Keyboard Android 10.0 1D/2D Barcode Scanner Reader WiFi Mobile Data Terminal

Portable Rugged PDA Rugged Handheld K59H Industrial-Grade PDA with Full Keyboard Android 10.0 1D/2D Barcode Scanner Reader WiFi Mobile Data Terminal

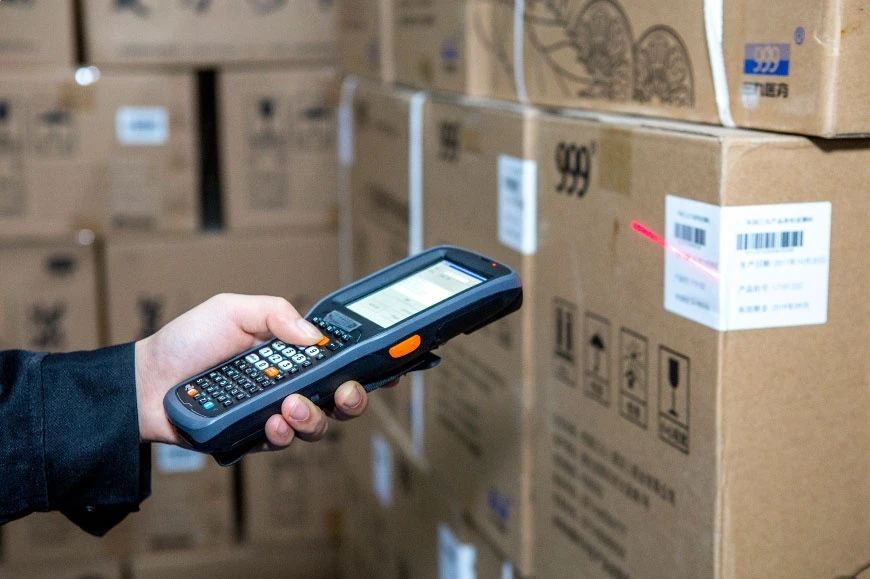

Industrial-grade full keyboard PDA

With ultra-durable and professional full keyboard design,stylish appearance and comfortable holding, K59H can operate excellently even under the most extreme conditions without encountering fatigue, which is especially applicable to industrial manufacturing, large-scale warehousing, and logistics distribution.

● Flexible choice with double-system
The device is equipped with the operation system of Android 10.0 or (WinCE 6.0 Optional ) customers can select different systems according to application requirements. As required by the application scenario, K59H can also customize the full keyboard design.

● Powerful endurance capacity
With efficient system design, K59H can greatly increase the battery life. In the meantime, it also provides two endurance solutions for high-intensity and long-term operation, even in scanning, network communication and other intensive applications.



Standard Pacakge Include

1. 1 x PDA
2. 1 x Battery
3. 1x Charger
4. 1x USB cable

5. 1x Charger Dock (Optional)
6. 1x  Pistol Grip

Operating system	WinCE 6.0 (Optional)	Android 10
Processor	Tl AM3715 1GHz	Octa-core 2.0GHz
Memory	512MB RAM+512MB ROM	3G RAM+ 32G ROM
Physical Parameter
Display screen	3.5" 480*640/240*320TFT color touch screen	3.5" 480*640 capacitance touch HD screen
Cameraloptional)	5 mega pixel	13 mega pixel
Input method	English, Arabic input method, and handwriting input	Supporting install various input method
Working time	10 hours, Above 280 hours standby	8 hours, Above 200 hours standby
Battery	UnloadabLe 3.8V 3280/5300mAH/3250mAH in handle Lithium battery
Dimensions	L 210mm x W 79mm x T 28mm
Weight	360g(standard battery included)
Keyboard	52/39 regular keys, 1 power switch key, 1 reset key, 2 side keys
Power adapter	Input: AC 100 - 220V 50/60Hz; Output: DC 5.5-2.5A
Audio	3.5mm stereo headphone jack, speaker
Notification	Speaker, indicator Light and vibration
Interface	MiNi USB 2.0, Micro SD/TF, SIM (optional), Charging interface
Environmental Parameter/IP Rate
Temperature	Working :-10°C ~ 50°C        Storage:-30°C ~ 60°C
Electrostatic	±15kV air discharge, ±8kV direct discharge
Relative humidity	5% ~ 95%RH
Protection grade	IP65 grade
Height of anti-dropping	2.5m(On concrete ground)
Strength of anti-roLLing	1m(More than 1000 rolling by impact force)
Communication Data Parameter
WIFI	IEEE 802.11 b/g/n	IEEE 802.11 a/b/g/n/ac
Bluetooth	Bluetooth 2.1	Bluetooth 4.0
WWAN	Null	GPRS/WCDMA/EVDO/ TDSCDMA/TDD-LTE/FDD-LTE
GPS(optionaL)	Precision:! 0m(open sky)(optional for Android OS)
Identification Parameter
Barcode(optionaL)	1D Laser/2D image scanning engine
	Scanning precision : N 3 mil
	Reading distance : 3cm-70cm(Depends on barcode density and code system)
	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5,Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc;PDF417, MicroPDF417, Composite, RSS, TLC-39, Data matrix, QR code, Micro QR code,Aztec,Postal Codes: US PostNet; US Planet, UK Postal; Japan Postal Dutch Postal (KlX)etc.
