Kcosit K73H Windows Rugged Handheld Barcode Scanner 6.5 Inch Intel N5100 Mobile Data Collector NFC

Kcosit K73H Windows Rugged Handheld Barcode Scanner 6.5 Inch Intel N5100 Mobile Data Collector NFC

Standard Version (NO Scanner Functions)

• Waterproof Grade:  IP67 Waterproof Level Shockproof and Dustproof

• Operation System: Windows 10

• CPU: Intel JASPER LAKE N5100

• DisplaySize: 6.5"

• Display Resolution: Resolution: 720*1600 Brightness: 500cd/cm²

• RAM+ROM:  8GB RAM+128GB ROM

• Camera: Dual Camera  8.0MP Back+ 5.0MP Front

• Battery Capacity: 4000mAH

• Built-in 4G,Wifi ,GPS Module, Bluetooth Module  NFC

• Sim Card Quantity: Single SIM Card (Only For Data Transmission)

• Band Mode:

                                   LTE FDD: B1/B3/B7/B8/B20  LTE TDD: B40
                                   WCDMA: B1/B5/B8
                                   GSM: 900/1800
                                   China (Unicom, Telecom, Mobile) Europe, Middle East, Africa, Taiwan, Japan
                                   Optional: 750-VA,
                                   LTE-FDD: B2/4/5/12/13/17/18/25/26 LTE-TOD:B41
                                   WCDMA: B2/4/5
                                   CDMA&EVDO: BC0/BC1
                                   GSM: 850/1900
                                   LTE-FDD: B2/4/5/7/8/28
                                   LTE-TOD:B40
                                   WCDMA: B2/5/8
                                   GSM:850/900/1900

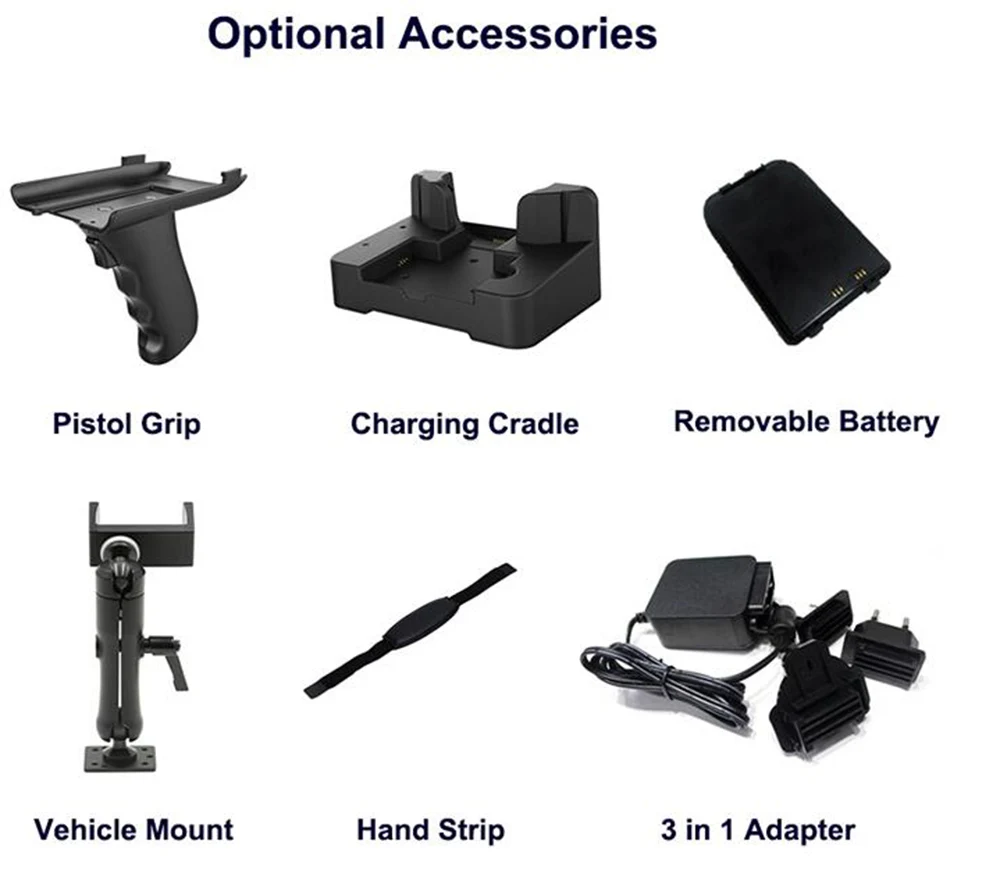

• Optional Functions AndAccessories(Contact US if You Need it)

• 1D  2D  Barcode Laser Scanner Module

• Charger Dock
  Spare Battery

Standard Pacakge Include: ( standard without Charger Docking )

1. 1 x Tablet Phone
2. 1 x Battery 4000mAh

3. 1x Charger (EU  US  )
4. 1 xUSB cable

5. 1X Hand Strap



Product Form	6.5 inch  Rugged Handheld
Material	ABS+PC+Metal
Dimension	183.1*88.6*24.1mm
Weight	470g
Product Color	Black
CPU	Intel JASPER LAKE N5100
GPU	Intel® UHD Graphics 620
Memory	RAM 8GB  LPDDR4                    ROM  128GB   EMMC
Operating System	windows 10(IOT)
Display	Type: IPS Size: 6.5 inch full laminated TFT color full screen,Dropnotch  20:9 Resolution: 720*1600 Brightness: 500cd/cm²
Touch Pannel	5 points Capacitive, G+FF, Corning Gorilla Glass, Hardness 6H or higher, scratch-resistant.
Camera	Front 5M Rear 8M, autofocus with flash

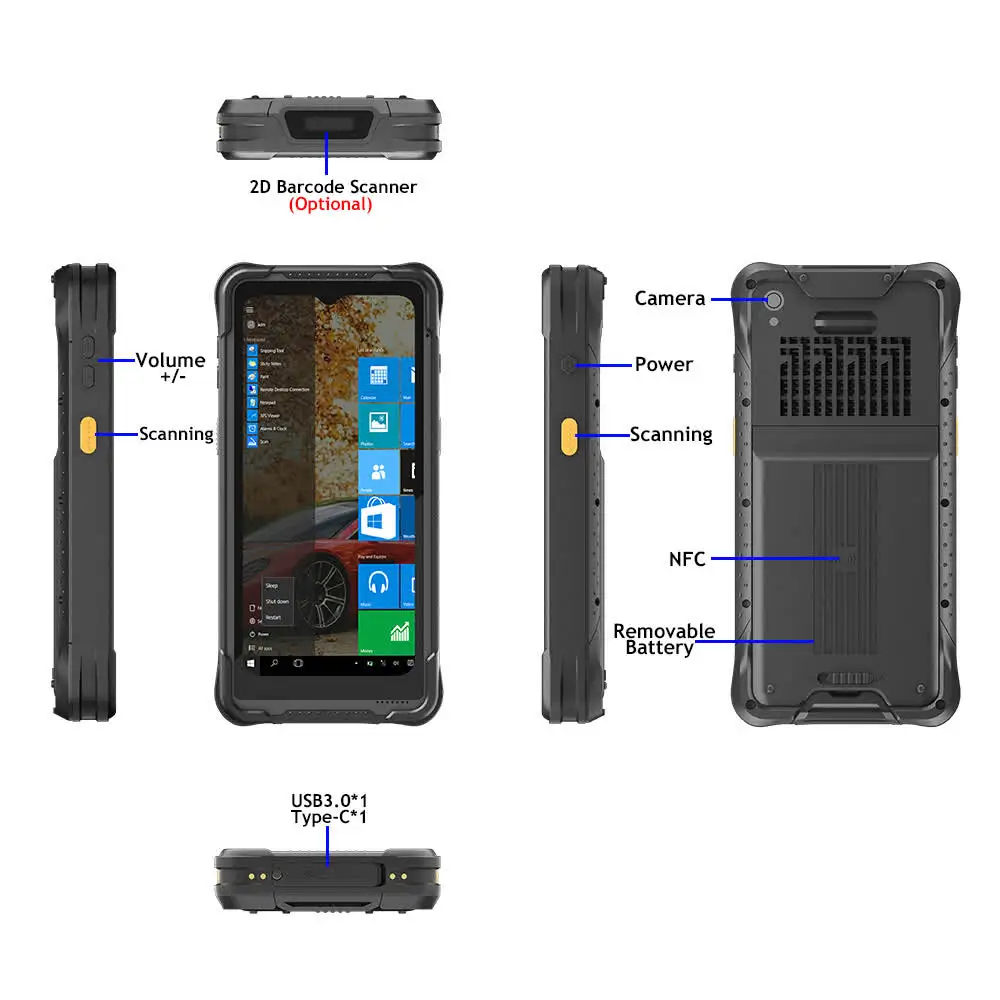

Buttons	Power *1,Volume Adjustment Key (+) *1,Volume Adjustment Key (-) *1,Bar code scanning (left and right)*2
Speaker	Embedded 1Ω/1W  speaker x 1  95dB@0.1m
Microphone	single microphone
Senssors	G_sensor *1

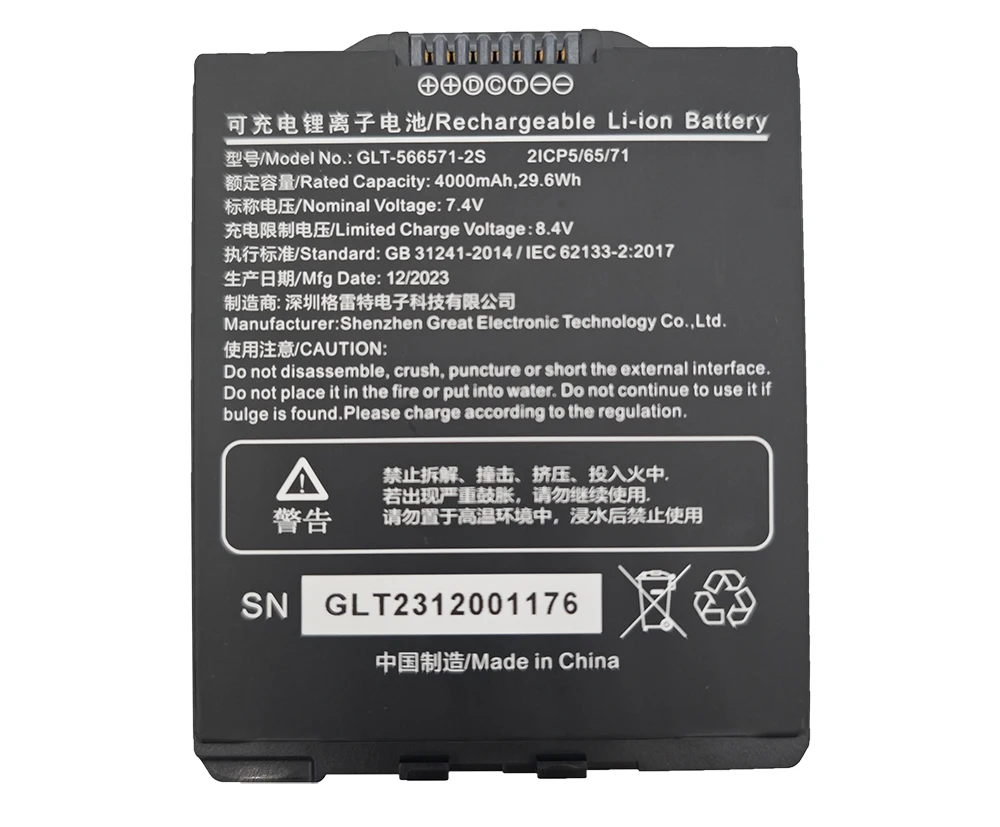

Battery	External polymer lithium ion battery 7.4V/4000mAh About 6 hours(50% volume sounds, 50% screen brightness, 1080P HD video display by default )
WIFI	Wi-Fi 802.11(a/b/g/n/ac)   Dual frequency 2.4G+5.8G WIFI
Bluetooth	BT5.0 (BLE) class1  transmission distance: greater than 10m
NFC	Support
2G/3G/4G	LTE FDD: B1/B3/B7/B8/B20  LTE TDD: B40  WCDMA: B1/B5/B8  GSM: 900/1800 China (Unicom, Telecom, Mobile) Europe, Middle East, Africa, Taiwan, Japan Optional: 750-VA, LTE-FDD: B2/4/5/12/13/17/18/25/26 LTE-TOD:B41 WCDMA: B2/4/5  CDMA&EVDO: BC0/BC1  GSM: 850/1900 LTE-FDD: B2/4/5/7/8/28   LTE-TOD:B40 WCDMA: B2/5/8   GSM:850/900/1900
GPS	GPS+GLONASS

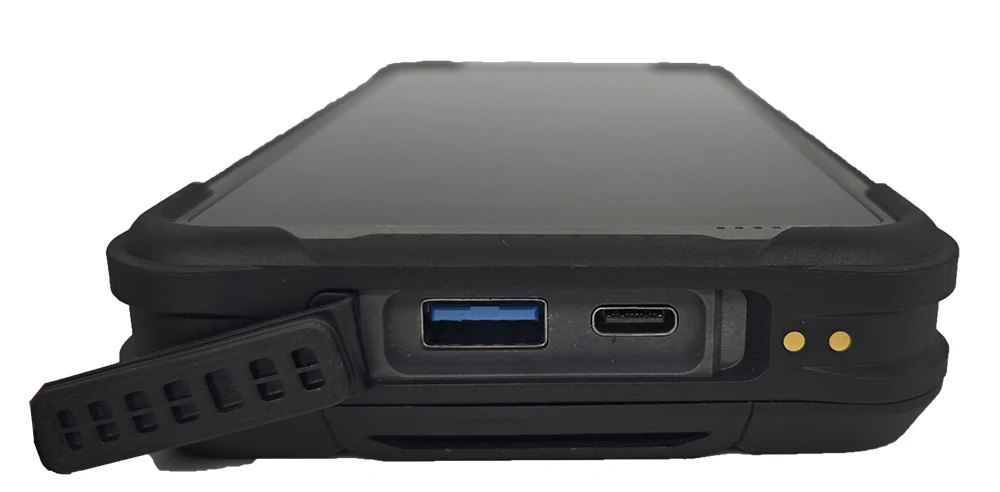

I/O Interface	TYPE-C 2.0*1  OTG   (Data transmission)
	Standard USB-A port/Data Transfer (3.0)

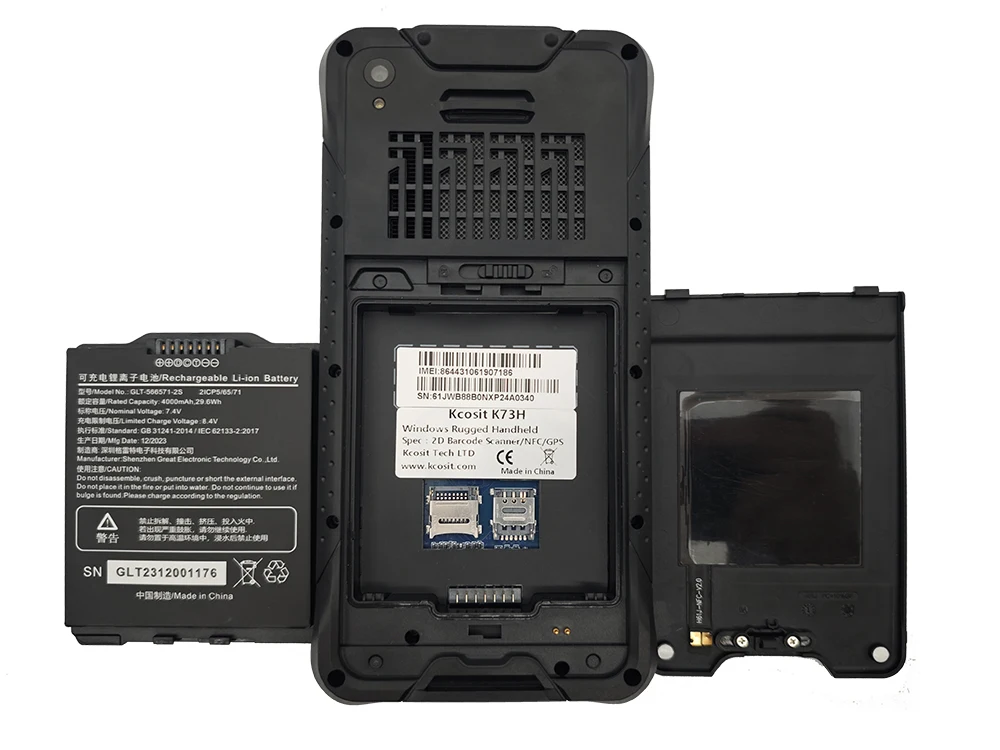

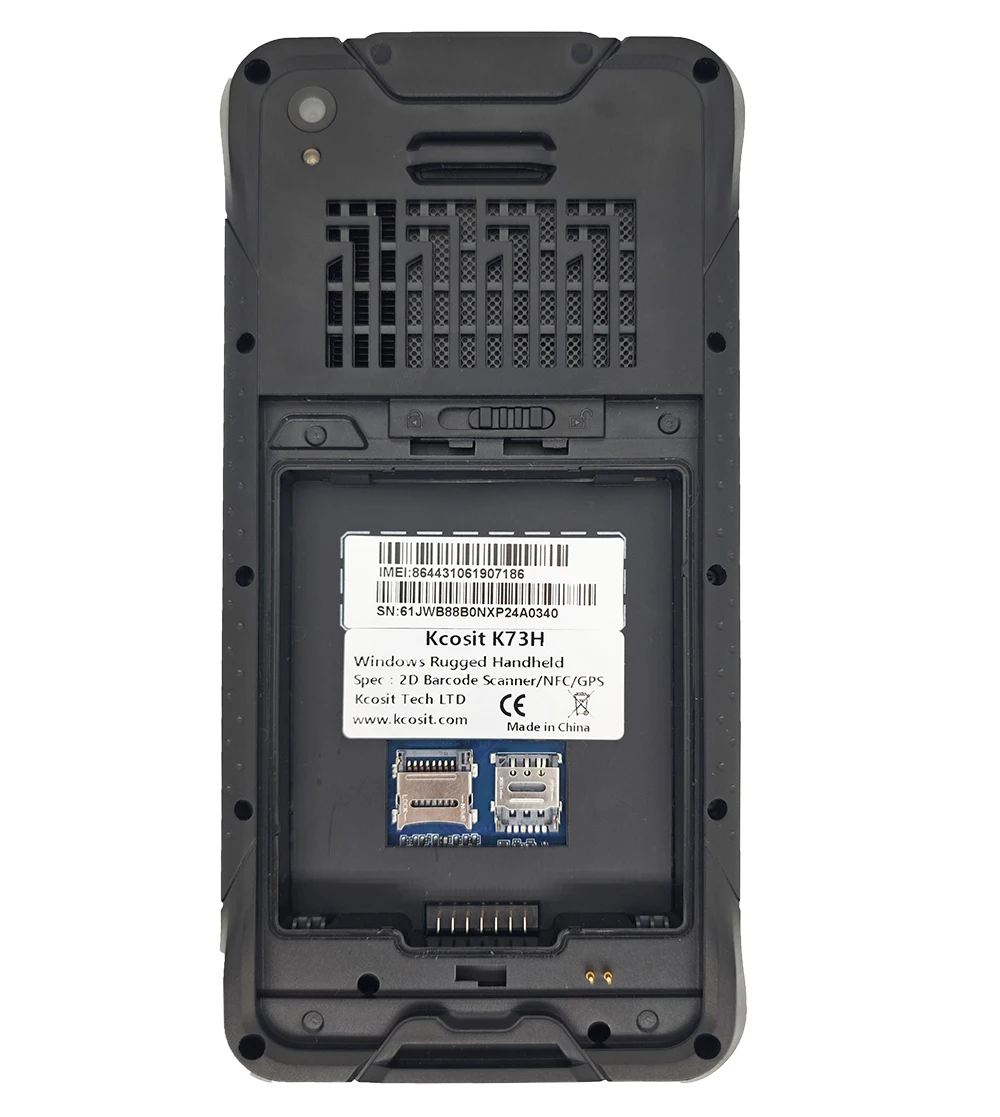

	TF card *1, Max: 512GB  Nano-SIM * 1

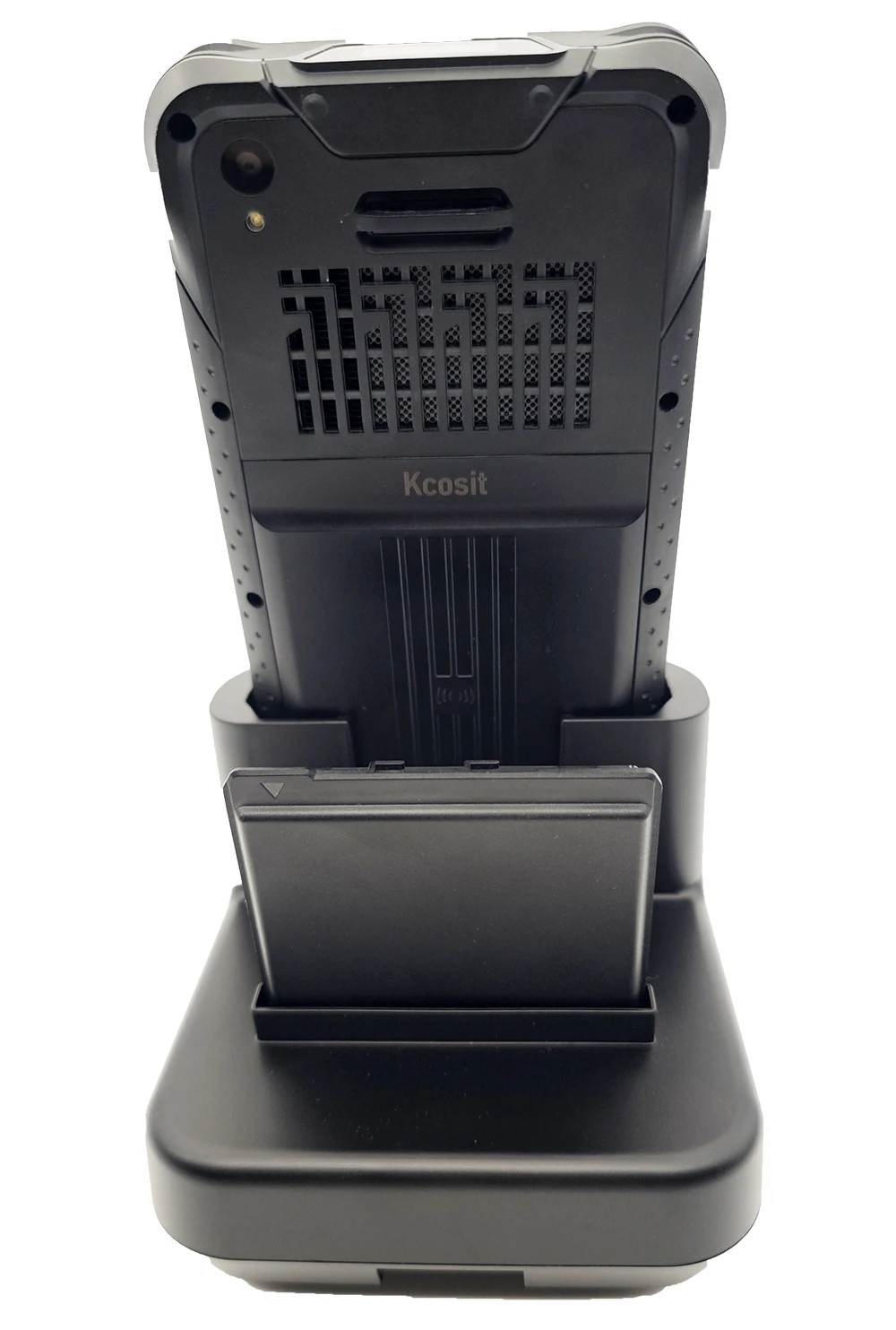

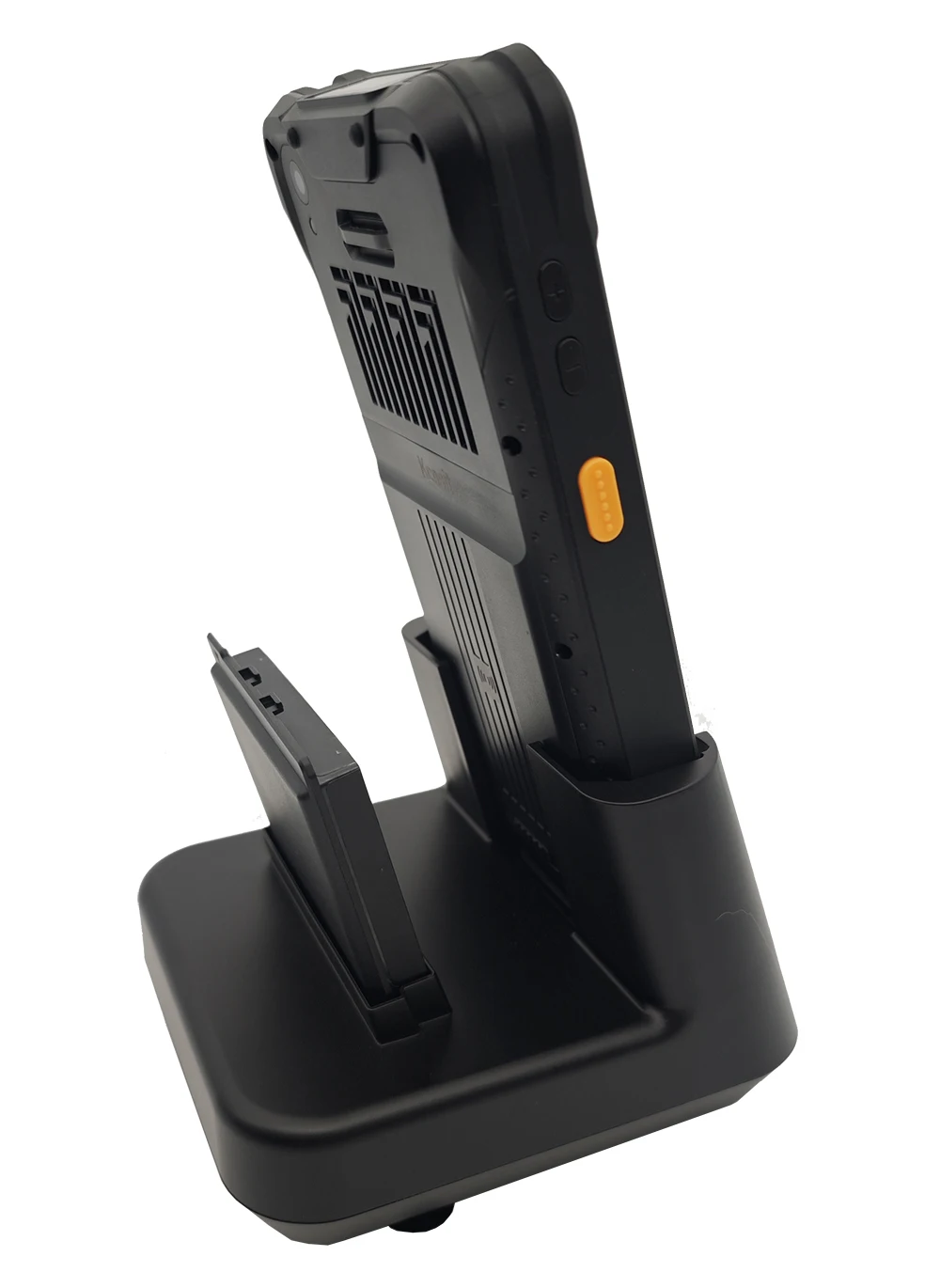

	Pogo Pin (Suitable docking charger DC73J
Adapter	Input 100-240V AC 0.5A 50/60Hz  Chinese standard  CCC certification PD3.0 45W
USB cable	C to C
Rugged Features	Drop test height:1.5m Composite wood floor working (Power-on state)
	Working temperature: -20 °C to 60 °C
	Storage temperature: -30 °C to 70 °C
	Humidity: 95% Non-Condensing
Certification	IP67 IP6X dust proof: dust cannot enter the object and the entire diameter cannot exceed the gap of the shell IPX5 waterproof: spraying water on the shell from any direction will not cause harmful effects
	CE
	FCC
	CCC
	MIL-STD-810H
	China Energy Conservation Certification
	Battery: UN38.3, MSDS, IEC62133
Data Collection	2D Barcode Scanner Optional, Honeywell N3680  hard decode Optical resolution: 5mil Scanning speed: 30 times /s Support code:  PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse"
	NFC 13.56MHz, Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol, reading distance: 3-5cm
