K16J Rugged Windows 11 Tablet Industrial PC 10.1" N5100 8GB RAM 4G LTE RS232 DB9 UART

Original K16J Rugged  Windows 11 Tablet  Industrial PC Ip65 10.1" JASPER LAKE N5100 8GB RAM 4G LTE RS232 DB9 UART MIL-STD-810G

Standard Version (Windows 11 PRO OS)

• Waterproof Grade:  IP65 Waterproof Level Shockproof and Dustproof
• Operation System:  Windows 11 PRO
• CPU: Intel JASPER LAKE N5100
• GPU : Intel® HD Graphics Gen 11 LP
• Display Size: 10.1"
• Display Resolution : 1200×1920  400 cd/m2
• RAM+ROM: 8GB RAM+128GB ROM
• Camera: Dual Camera  8.0MP Back+ 5.0MP Front
• Battery Capacity: 7.4V  5000mAH=3.6V/10000mAH
• Built-in 4G, Wifi ,GPS Module, Bluetooth Module
• Sim Card Quantity: Single SIM Card (Only For Data Transmission)
• Band Mode : MeiG 750
  LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8

Standard Pacakge Include: (standard without Charger Docking)

1. 1X Tablet
2. 1X Battery 5000mAh

3. 1X AC Charger(US or EU )
4. 1X USB Cable

5. 1X OTG Cable

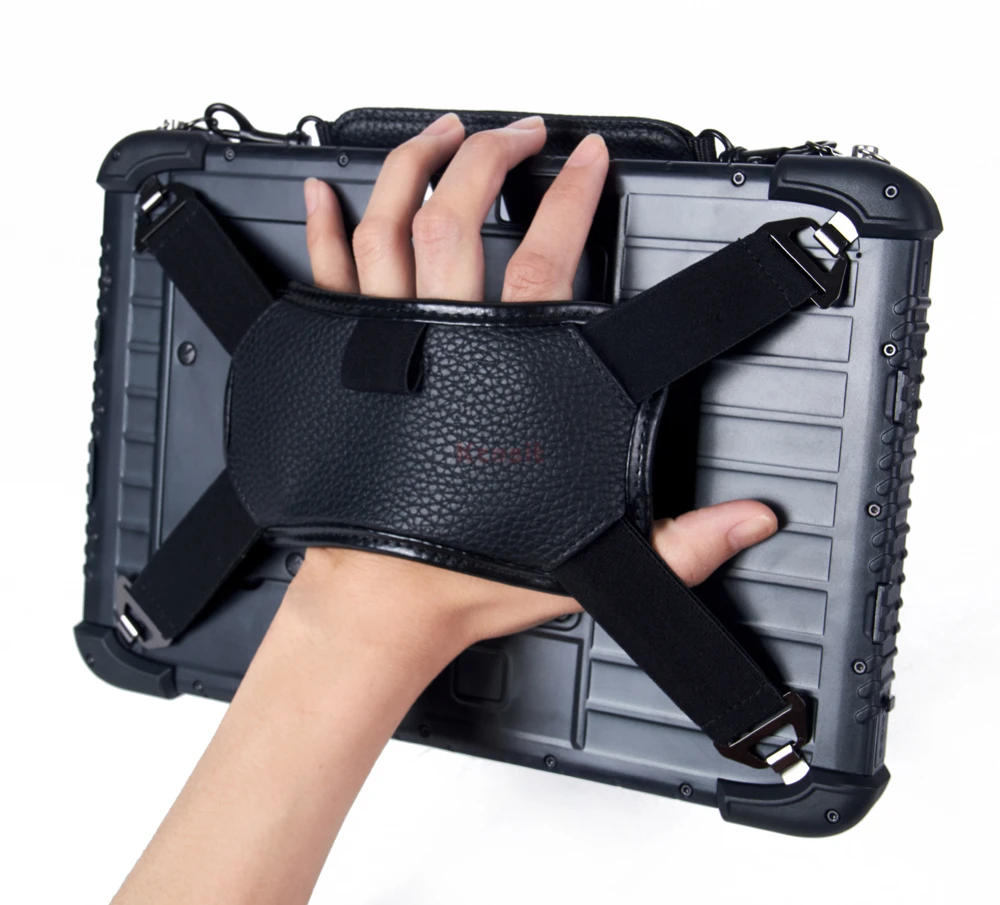

6. 2X Leather Hand strip

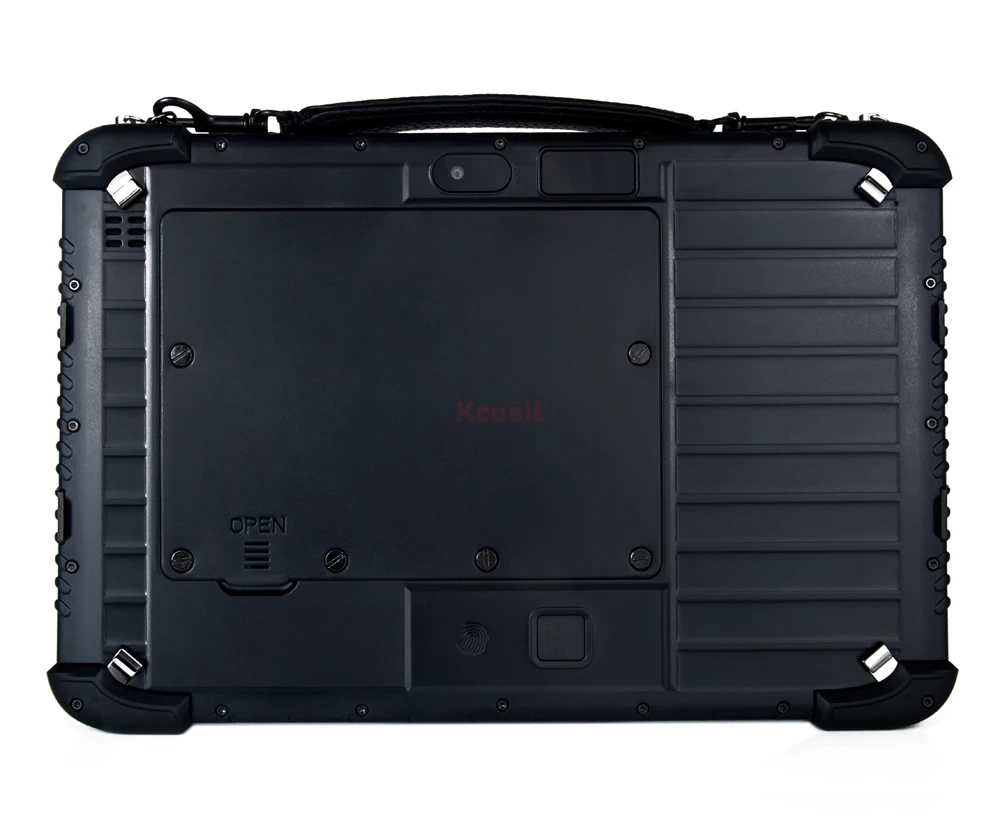

Product Outlook
Type		Details		Standard Configuration
Product Form		Type		Rugged Tablet
		Dimension		280.4*187*26.6mm
		Weight		TBD
		Device Color		Black(Front and Rear Panel: Black,Decorate Board:Black),PC+TPU
LCD		Screen Size		10.1 inch   16:10
		Resolution		1200×1920
		Brightness		400 cd/m2
TP		Touch Panel		10 points Capacitive,G+G,Rigidity: above 7H-Anti-scratch
Camera		Front		Front:5.0MP
		Rear		Rear: 8.0MP
Speaker		Built-in		Embedded 8Ω/1W waterproof speaker x 1
Mic				Sensitivity:-42db, Output resistance:2.2kΩ
Battery		Type		Lithium-ion polymer battery , pluggable
		Capacity		7.4V/5000mAh
		Endurance		6hrs(default 50% volumn,default 200nit,play 1080P HD video)
RTC		RTC		Built in RTC clock button battery
System Hardware Configuration
Type		Details		Description
CPU		Type		Intel JASPER LAKE N5100
		Speed		2.80 GHz
GPU		Type		Intel® HD Graphics Gen 11 LP
RAM		DDR3L		8GB
SSD		NGFF SSD		128GB
G_sensor		Built-in		Gravity acceleration sensor
Network Connections
Type		Details		Description
WIFI		WIFI Module		WIFI 802.11(a/b/g/n/ac)  dual frequency 2.4G+5.8G WIFI  intel 9461
Bluetooth		Built-in		BT5.0 (BLE) class1  transmited distance:10m
2G/3G/4G		Built-in		MeiG 750 LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 (Optional, South America or North America module)
GPS		Built-in		Support GPS, GLONASS
Data Collection
Type		Details		Description
1D Barcode Scanner		Optional		MOTO SE655(Optional)
2D Barcode Scanner		Optional		N3680(Optional)
NFC		Built-in		NXP300(Optional)
Interface Configuration
Type		Details		Descriptions
TF Slot		Extensive External Memory		Support TF   x1    max:512G
SIM Slot		SIM Slot		SIM   x1
USB		USB-A		USB 3.0*1
Type C		Type C		*1 Type C (USB3.0/HDMI/charge)
DC Jack		Power		19V3.42A ∮4.0mm Power connector  x1
Earphone Jack		Audio Output		∮3.5mm Standard Earphone Jack  x1
HDMI Jack		Audio&Video Output		HDMI 1.4a Type C  x1
Extensive Slot		Pogo Pin		12pin  Pogo Pin   x1

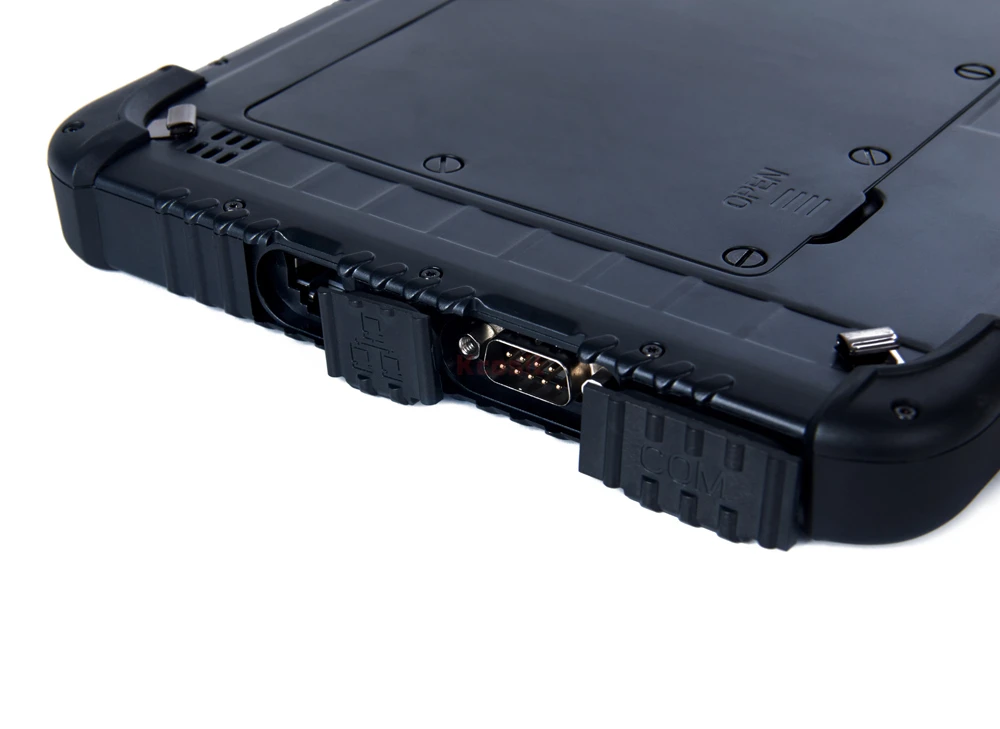

DB9 PORT		UART Serial port		*1 (RS232) TTL Electrical Level
RJ45 PORT		Internet port		*1(10/100/1000M Self-adaption)
Key
Type		Details		Descriptions
Scan key		QR code scanning		F key*1
HOME key		Quick return		P key*1
Volume button		Modulation		Volume+ x1, volume- x1
Power button		Switch on/off		power key x1
Reserved interface
Type		Details		Descriptions
USB		Reserved interface		USB*1
Serial port		Reserved interface		Serial port*1
Indicator light
Type		Details		Descriptions
Charging indicator		Charging indicator		Red indicator*1
Standard accessories
Type		Details		Descriptions
OTG line		Standard		*1
USB line		Standard		*1
power adapter		Standard		19V 3.42A power adapter(EU,US,CN,UK, One out of four)
Carry handle		Standard		YES
Back-strap		Optional		NA
Car Charge		Optional		19V3.42A ∮4.0mm TPYE-C(Optional)
Vehicle Mount		Optional		19V3.42A ∮4.0mm Power interface(Optional)
Shoulder-strap		Optional		NA
Stylus		Optional		GT930(Optional)
Product Certificate
Type		Details		Descriptions
Certificate System		IP65		IP65 Report:Water Resistance:IP-X5,Dust Resistance:P-6X  Report ID no.:SET2015-07677 a.Inner Nozzle Diameter:6.3mm;   b. Water Speed:12.5±0.625L/min; c. Water Pressure:Adjust according to water volumn; d.Central part of water volumn :A round with a diameter of about 40mm at the distance from the nozzle 2.5m. e.Spray time in surface of panele: About 1 min/Square meter;f.Test time:at least 3min; g.Distance between nozzle and panel surface:2.5～3m. After test,there is no water leakage in sample.
		CE-NB		YES
		MIL-STD-810G		YES
		CCC		YES
		Battery		UN3803,MSDS,IEC62133,Aviation, Ocean shipping reports
Reliability
Type		Details		Descriptions
Product Reliability		Drop Height		1.2m drop
		Operate Temperature		'-20 °C to 60 °C
		Store Temperature		'-30 °C to 70 °C
		Humidity		Humidity: 95% Non-Condensing
